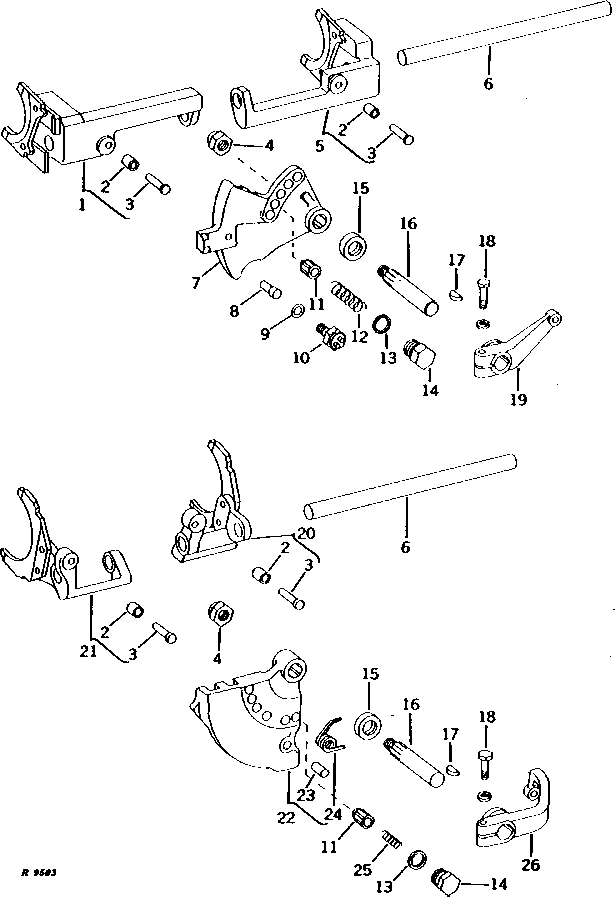

GEAR SHIFTERS AND SHIFTER SHAFTS (COLLAR SHIFT) [01H01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	REVERSE RANGE, WITH YOKE, PIN AND ROLLER, (MARKED R33397, NO LONGER AVAILABLE) ( AR32178 - NO LONGER AVAILABLE)
2	R26207	4	Roller	-
3	R26206	4	PIN FASTENER	-
4	E17421	2	Lock Nut	-
5	-	1	Part 5	(MARKED R33396, NO LONGER AVAILABLE) LOW AND HIGH RANGE, WITH YOKE, PIN AND ROLLER ( AR32177 - NO LONGER AVAILABLE)
6	R33730	2	DOWEL PIN	-
7	-	1	Part 7	( R33395 NO LONGER AVAILABLE)
8	R33731	1	PIN FASTENER	-
9	T16911	1	SHIM	.38 MM (.015")
10	R36265	1	SWITCH	-
11	R26202	2	PAWL	-
12	B207R	1	SPRING	-
13	A4827R	2	Washer	(A)
14	R34844	2	RETAINER	(A) (SUB FOR R26204)
15	AR389R	2	Seal	-
16	R32630	2	SHAFT	(SUB FOR AR31904) (ALSO ORDER E17421)
17	26H17	2	Shaft Key	3/16" X 7/8"
18	19H2633	2	Cap Screw	3/8" X 1-1/2"
18	12H304	2	Lock Washer	3/8"
19	R26497	1	ARM	-
20	AR32180	1	SHIFTER	(MARKED R33399) SECOND AND FIFTH, FOURTH AND SEVENTH SPEED, WITH YOKE, PIN AND ROLLER
21	AR32179	1	LEVER	(MARKED R33398) FIRST AND THIRD, SIXTH AND EIGHTH SPEED, WITH YOKE, PIN AND ROLLER
22	AR32692	1	CAM	(MARKED R33400) SPEED CHANGE SHIFTER, WITH SPRING
23	34H365	1	Spring Pin	1/2" X 7/8"
24	R55910	1	SPRING	(SUB FOR R27243, THIS APPLICATION)
25	R26203	1	SPRING	-
26	R33765	1	ARM	-

GEAR SHIFTERS AND SHIFTER SHAFTS (COLLAR SHIFT) [01H01]
