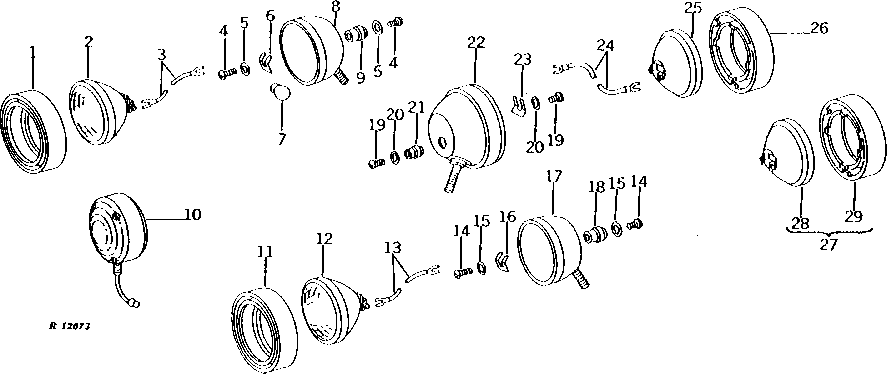

FRONT AND REAR LAMPS (SERIAL NO. 91000- ) [02I10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	1	BEZEL	-
2	AR77324	1	LAMP	(SUB FOR AR21737) (ALSO ORDER AD2062R) (12-VOLT) (BULB AND ONE AR77325 SOCKET WITH LEAD)
3	-	2	Part 3	165 MM (6.5") SEALED UNIT TO TERMINAL PLATE (MAKE FROM R32027 AND TWO R32016 FROM AR84006 WIRING REPAIR KIT)
4	21H1293	4	SCREW	0.164" X 5/16"
5	12M7084	4	Lock Washer	4.300 MM
6	A2899R	2	SPRING	-
7	AR86969	1	BULB	(SUB FOR AR21739)
8	AR34990	1	LAMP	(SUB FOR AT16288) (12-VOLT)
9	AA3495R	2	SUPPORT	-
10	AD2062R	1	Bulb	(12-16 VOLT)
10	R42666	2	LENS	-
10	AH164498	1	LAMP	(SUB FOR AR38456 AND AT23467)
11	R30182	1	BEZEL	(HOBBS)
11	R31250	1	BEZEL	(GUIDE)
12	AR21059	1	HEADLIGHT	(12-VOLT)
13	-	1	Part 16	165 MM (6.5") SEALED UNIT TO TERMINAL PLATE (MAKE FROM R32007 AND TWO R32016 FROM AR84006 WIRING REPAIR KIT)
14	21H1293	2	SCREW	0.164" X 5/16"
15	12M7084	2	Lock Washer	4.300 MM
16	A2899R	1	SPRING	-
17	-	1	Part 20	REAR FENDER (12-VOLT) ( AR28167 NO LONGER AVAILABLE) (SUB RE27099, E41563, E41564 AND 14H865)
18	R30181	1	PLATE	(HOBBS)
18	AA3495R	1	SUPPORT	(GUIDE)
19	21H1293	2	SCREW	0.164" X 5/16"
20	12M7084	2	Lock Washer	4.300 MM
21	R30181	1	PLATE	(HOBBS)
21	AA3495R	1	SUPPORT	(GUIDE)
22	AR28166	2	LAMP	(12-VOLT) (FRONT FENDER)
23	A2899R	1	SPRING	(GUIDE)
24	-	1	Part 29	-
25	AF3892R	1	Bulb	(12-VOLT)
26	R30182	1	BEZEL	(HOBBS)
26	R31250	1	BEZEL	(GUIDE)
27	-	2	Part 33	(12-VOLT) ( AR27923 - NO LONGER AVAILABLE)
28	AR21059	1	HEADLIGHT	(12-VOLT) (FRONT LAMP)
29	R30182	1	BEZEL	(HOBBS)
29	R31250	1	BEZEL	(GUIDE)

FRONT AND REAR LAMPS (SERIAL NO. 91000- ) [02I10]
