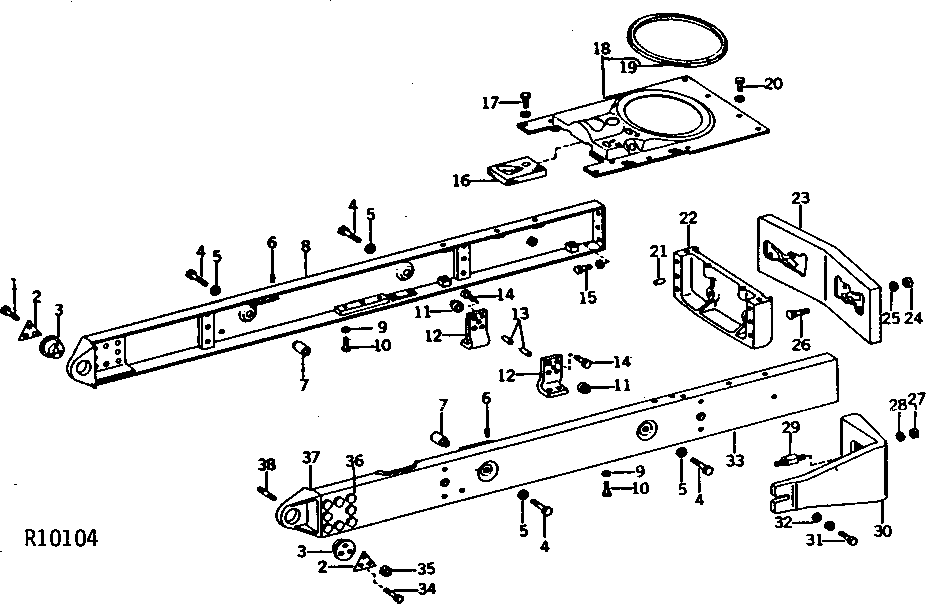

FRAME, FRAME PLATE, AND FRONT WEIGHTS [02G02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3057	3	Cap Screw	1/2" X 2-3/4"
2	-	2	Part 2	( R28689 - NO LONGER AVAILABLE)
3	R41916	2	RETAINER	(SUB FOR R28688)
4	19H2969	4	Cap Screw	5/8" X 3-1/2"
5	R28695	4	WASHER	-
6	34H309	4	Spring Pin	1/4" X 5/8"
7	-	2	Part 7	( R28694 - NO LONGER AVAILABLE)
8	-	1	Part 8	L.H. LESS BRACKET ( AR32686 - NO LONGER AVAILABLE)
9	24H1375	4	Washer	11/16" X 1-1/8" X 0.060"
10	19H1356	4	CAP SCREW	5/8" X 1-3/4"
10	19H1734	4	Cap Screw	5/8" X 2"
10	14H760	4	Nut	5/8", NOT ILLUSTRATED
11	-	2	Part 13	( R34220 - NO LONGER AVAILABLE)
11	-	2	Part 14	( R39696 - NO LONGER AVAILABLE)
12	AR32751	2	SUPPORT	(MARKED R34219)
12	-	2	Part 16	( AR39653 - NO LONGER AVAILABLE)
13	R39224	2	DOWEL PIN	(SUB FOR R28692)
13	R27315	2	Dowel Pin	-
14	19H2599	6	Cap Screw	5/8" X 2-1/2"
14	19H1756	6	Cap Screw	5/8" X 1-1/2"
15	19H1734	4	Cap Screw	5/8" X 2"
15	12H294	4	Lock Washer	5/8"
16	R27898	1	ISOLATOR	-
17	19H2898	4	Cap Screw	1/2" X 1-1/4"
17	12H301	4	Lock Washer	1/2"
18	R36590	1	PLUG	(NOT ILLUSTRATED)
18	-	1	Part 30	(POWER SHIFT) ( AR44011 - NO LONGER AVAILABLE)
18	AR39526	1	PLATE	(A) (POWER SHIFT) (SUB AR44011 - NO LONGER AVAILABLE)
18	AR32704	1	PLATE	(POWER SHIFT) (SUB AR44011 - NO LONGER AVAILABLE)
18	AR28334	1	PLATE	(COLLAR SHIFT) (SUB AR39527 - NO LONGER AVAILABLE)
18	-	1	Part 28	(COLLAR SHIFT) ( AR39527-NO LONGER AVAILABLE)
19	R30936	1	ISOLATOR	(SUB FOR R27131)
20	19H2472	2	Cap Screw	1/2" X 1"
20	12H301	2	Lock Washer	1/2"
21	A776R	2	Pin	-
22	-	1	Part 36	( R28696 - NO LONGER AVAILABLE)
23	R27643	1	WEIGHT	-
24	14H800	2	Nut	5/8"
25	12H294	2	Lock Washer	5/8"
26	03H1857	2	BOLT	5/8" X 2-3/4"
27	14H794	2	Nut	3/4"
28	12H236	2	Lock Washer	3/4"
29	-	2	Part 43	( R31203 - NO LONGER AVAILABLE)
30	-	2	Part 44	(SUB FOR R28699) (NO LONGER AVAILABLE)
31	19H3244	2	Cap Screw	5/8" X 2-1/4"
31	12H294	2	Lock Washer	5/8"
32	F2783R	2	WASHER	-
33	AR32685	1	FRAME	R.H. LESS BRACKET (SUB AR40467 - NO LONGER AVAILABLE)
33	AR39670	1	FRAME	R.H. LESS BRACKET (SUB AR40467 - NO LONGER AVAILABLE)
33	-	1	Part 50	R.H. LESS BRACKET ( AR40467 - NO LONGER AVAILABLE)
34	19H3057	3	Cap Screw	1/2" X 2-3/4", POWER SHIFT
35	14H1040	3	Nut	1/2", (SUB FOR 14H809) COLLAR SHIFT
36	R31505	16	BOLT	-
37	R34214	2	BRACKET	(SUB R39702)
37	R39702	2	BRACKET	-
37	-	1	Part 56	R.H. LESS BRACKET ( AR40467 - NO LONGER AVAILABLE)
38	-	3	Part 57	1/2" X 3-3/8", COLLAR SHIFT ( F338R - NO LONGER AVAILABLE)
..	-	1	Part 58	WITH ATTACHING HARDWARE, (CONSISTS OF R27643 FRONT FRAME WEIGHT AND ONE AR26822 HARDWARE FOR ATTACHING FRONT FRAME WEIGHT) ( AR26820 - NO LONGER AVAILABLE)
