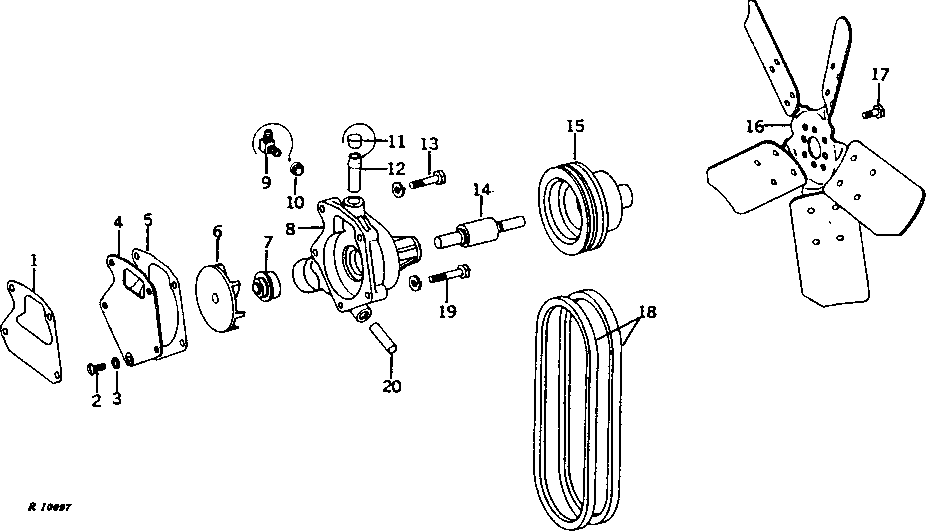

FAN AND WATER PUMP (DIESEL) (ENGINE SERIAL NO. -200999) [01D14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26341	1	GASKET	-
2	21H1225	1	SCREW	5/16" X 3/4"
3	12H323	1	LOCK WASHER	5/16"
4	R26340	1	COVER	-
5	R26343	1	GASKET	-
6	-	1	Part 6	(MARKED R31427) (SUB R40979 AND AR36668) (SUB FOR AR31897)
6	R40979	1	IMPELLER	-
7	R36134	1	SEAL	(SUB AR101549)
7	AR36668	1	SEAL	(SUB AR101549)
7	AR101549	1	Seal Kit	-
8	SE500623	1	FUEL INJECTION PUMP	(REMANUFACTURED FOR AR45340)
8	AR45333	1	WATER PUMP	(MARKED R41316) (SUB FOR AR40924) (SUB AR26708, AR45340, R39503 AND 15H624)
8	AR32660	1	WATER PUMP	(SUB AR26708, AR45340, R39503 AND 15H624)
8	R34060	1	HOUSING	(SUB AR26708, AR45340, R39503 AND 15H624)
8	AR45333	1	WATER PUMP	(MARKED R34984 OR R34979) (SUB FOR AR34858) (SUB AR26708, AR45340, R39503 AND 15H624)
9	M42830	1	Elbow Fitting	(SUB FOR AR26635)
10	15H559	1	Pipe Plug	1/4"
11	-	1	Part 18	( R34987 - NO LONGER AVAILABLE)
12	R34986	1	TUBE	-
13	12H304	2	Lock Washer	3/8"
13	19H1765	2	Cap Screw	3/8" X 1-3/4"
14	JD9257	1	Ball Bearing	-
15	R34058	1	PULLEY	-
16	AR34452	1	FAN	-
17	19H1648	4	Cap Screw	3/8" X 3/4"
18	AR41576	1	BELT SET	(SUB FOR AR32661)
19	19H3181	2	CAP SCREW	3/8" X 2"
19	12H304	2	Lock Washer	3/8"
20	R27548	1	TUBE	-

FAN AND WATER PUMP (DIESEL) (ENGINE SERIAL NO. -200999) [01D14]
