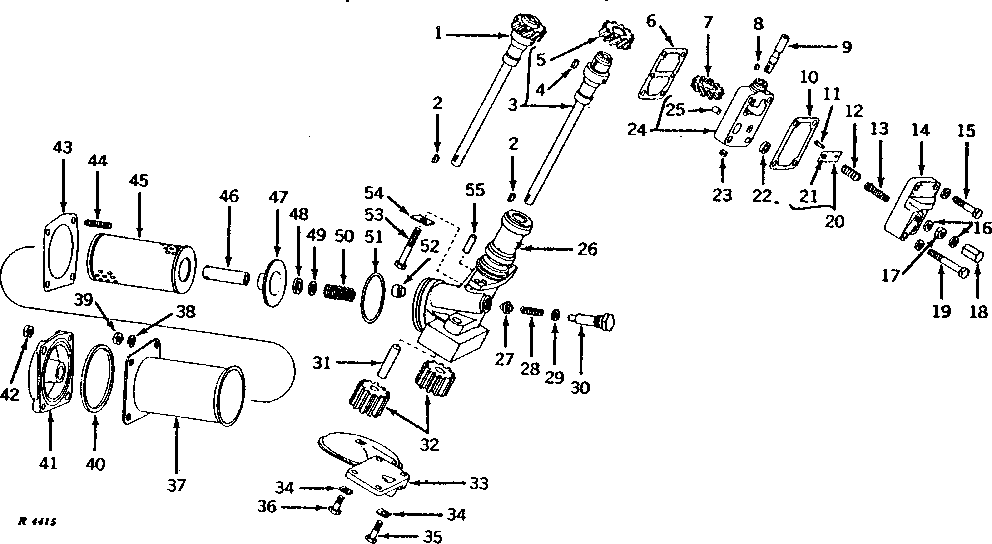

ENGINE OIL PUMP, OIL FILTER AND TACHOMETER DRIVE (ENGINE SERIAL NO. -200999) [01C02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR31684	1	GEAR	(MARKED R32427) (GASOLINE)
2	26H73	1	Shaft Key	5/32" X 5/8"
3	R45134	1	GEAR	(SUB FOR AR31685) (DIESEL)
4	26H72	1	Shaft Key	1/8" X 5/8", (DIESEL)
5	R32428	1	GEAR	(DIESEL)
6	R44853	1	GASKET	(SUB FOR R26174)
7	R32426	1	GEAR	-
8	26H3	1	Shaft Key	3/32" X 3/8"
9	R26172	1	SHAFT	-
10	R26173	1	GASKET	-
11	16H637	1	RIVET	1/4" X 7/16"
12	R26169	1	SPRING	-
13	R26168	1	SCREW	-
14	AR26351	1	HOUSING	(MARKED R26167)
15	19H2549	3	Cap Screw	3/8" X 1-7/8"
15	24M7096	3	Washer	0.413" X 0.709" X 0.063"
16	A3098R	2	LOCK WASHER	-
17	14H732	1	Nut	3/8"
18	B427R	1	CAP SCREW AND NUT	-
19	19H2732	1	Cap Screw	3/8" X 2-3/4"
19	24M7096	1	Washer	0.413" X 0.709" X 0.063"
20	AB3453R	1	LEAF SPRING	-
21	D2425R	1	PIN FASTENER	-
22	-	1	Part 24	(SUB AR45953) ( AR26353 NO LONGER AVAILABLE)
23	15H559	1	Pipe Plug	1/4"
24	AR45953	1	HOUSING	(MARKED AR45953) (SUB FOR AR26353 AND R26170 OR AR45952)
25	F1743R	2	Dowel Pin	-
26	AR26347	1	HOUSING	(MARKED R26143) (SUB AR67467, (2) R41920 AND (2) R42729) (GASOLINE)
26	AR27232	1	HOUSING	(MARKED R27919) (SUB AR67467, (2) R41920 AND (2) R42729) (DIESEL)
26	AR68309	1	HOUSING	(MARKED R56603) (SUB AR67467, (2) R41920 AND (2) R42729)
27	R26152	1	VALVE	-
28	R36715	1	SPRING	-
29	H294R	1	WASHER	-
30	R26153	1	DRAIN PLUG	-
31	R26144	1	SHAFT	-
32	AR26517	1	GEAR	(GASOLINE) (SUB AR40218)
32	AR40218	1	GEAR	(GASOLINE)
32	AR26705	1	GEAR	(DIESEL) (SUB AR36694)
32	AR36694	1	GEAR	(DIESEL)
33	AR26660	1	MANIFOLD	(SUB AR55866, (4) 19H2664, (4) 12H291)
34	R35128	4	LOCK PLATE	-
35	19H1849	2	Cap Screw	5/16" X 1-1/4"
36	19H2127	2	Cap Screw	5/16" X 7/8"
37	R26166	1	HOUSING	-
38	24H1652	2	Washer	13/32" X 11/16" X 7/64"
39	14H732	2	Nut	3/8"
40	B3586R	1	WASHER	-
41	R27261	1	COVER	(SUB R42054)
41	R42054	1	COVER	-
42	24H1301	4	Washer	13/32" X 9/16" X 0.065"
42	14H1076	4	Nut	3/8"
43	R26354	1	GASKET	-
44	D2420R	4	STUD	-
45	AR26350	1	FILTER ELEMENT	(SUB FOR AR28110)
46	R26146	1	TUBE	-
47	R26147	1	PLATE	-
48	R26149	1	PACKING	-
49	24H1388	1	Washer	25/32" X 15/16" X 0.036"
50	R26151	1	SPRING	-
51	R26163	1	O-Ring	-
52	R26493	1	Bushing	-
53	19H2633	2	Cap Screw	3/8" X 1-1/2"
54	R1888R	2	STRAP	-
55	-	1	Part 64	(NOT AVAILABLE)
..	SE500890	1	OIL PUMP REMAN	(GASOLINE) (REMANUFACTURED) (SUB FOR AR31886, AR53102)
..	SE500889	1	OIL PUMP REMAN	(DIESEL) (REMANUFACTURED) (SUB FOR AR31887 AND AR53103)
