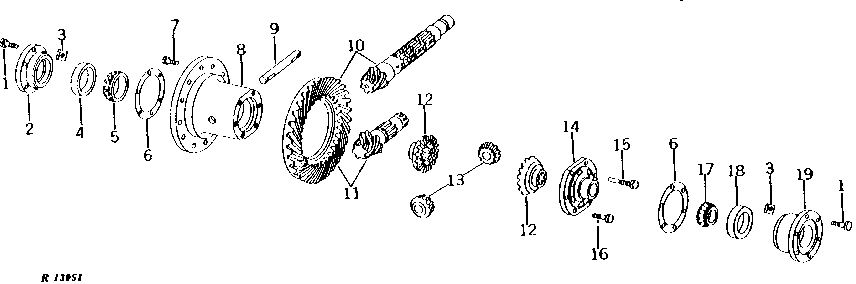

DIFFERENTIAL (TRACTORS WITHOUT DIFFERENTIAL LOCK) [01I20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	1/2" X 1-1/2"
2	R31190	1	BEARING HOUSING W/O BEARING	L.H.
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
6	R26042	1	SHIM	.08 MM (.003")
6	R26043	1	SHIM	.13 MM (.005")
6	R26044	1	SHIM	.25 MM (.010") (SUB R26043)
7	R41048	12	CAP SCREW	1/2" X 3/16"
8	R31189	1	HOUSING	-
9	R41903	1	PINION SHAFT	-
9	R26033	1	PINION SHAFT	(SUB R41903)
10	AR32151	1	GEAR	(SUB FOR AR33962) (ALSO ORDER (2) R33410, (5) R33411, (2) R33413 AND (4) R33414) R33062 SPIRAL BEVEL, AND R33243 DIFFERENTIAL DRIVE GEAR SHIFT AND BEVEL PINION, WITH SHIMS (MATCHED SET) (COLLAR SHIFT)
11	AR32465	1	GEAR	R33062 SPIRAL BEVEL AND R33006 DIFFERENTIAL DRIVE GEAR SHIFT AND BEVEL PINION, WITH SHIMS (MATCHED SET) (POWER SHIFT)
12	R42446	2	GEAR	(SUB FOR R26034)
13	R42444	2	PINION	(SUB FOR R26035)
14	R31195	1	COVER	-
15	R70236	1	CAP SCREW	(SUB FOR R41050)
16	R52634	5	Cap Screw	(SUB FOR R41049) 1/2" X 1-3/8"
17	JD8159	1	Bearing Cone	-
18	JD8210	1	Bearing Cup	-
19	R31196	1	BEARING HOUSING W/O BEARING	R.H.

DIFFERENTIAL (TRACTORS WITHOUT DIFFERENTIAL LOCK) [01I20]
