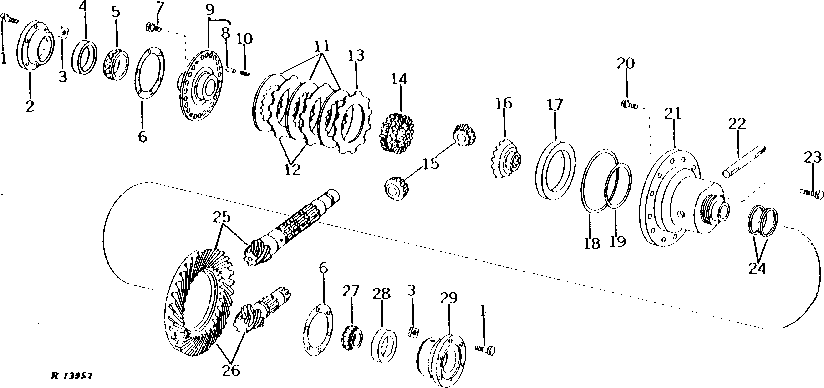

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) (SERIAL NO. 91000- ) [01I21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	1/2" X 1-1/2"
2	R31190	1	BEARING HOUSING W/O BEARING	L.H.
3	14H823	2	NUT	1/2"
4	JD8259	1	Bearing Cup	-
5	JD8954	1	Bearing Cone	-
6	R26042	1	SHIM	.08 MM (.003")
6	R26043	1	SHIM	.13 MM (.005")
7	R116064	12	CAP SCREW	(SUB FOR R39875 OR (12) R40236)
8	34H311	3	Spring Pin	1/4" X 7/8", (SUB FOR R34864, R40335 AND 34H100)
9	AR44614	1	COVER	(MARKED R34800 OR R42509) (SUB FOR AR34901)
10	R34863	3	SPRING	-
11	AR34705	3	CLUTCH DISK	-
12	R34858	2	Clutch Plate	-
13	R34857	1	Clutch Plate	-
14	R42448	1	GEAR	(SUB FOR R34854)
15	R42444	2	PINION	(SUB FOR R26035)
16	R42446	1	GEAR	(SUB FOR R26034)
17	R34855	1	PISTON	-
18	R41017	1	WASHER	(SUB FOR R34866)
19	R44328	1	WASHER	(SUB FOR R34856 AND R41016)
20	R41048	12	CAP SCREW	1/2" X 1-3/16"
21	AR39651	1	HOUSING	(MARKED R34799)
22	R41903	1	PINION SHAFT	(SUB FOR R26033)
23	R34862	1	CAP SCREW	-
23	R70236	1	CAP SCREW	(SUB FOR R41050)
24	R34513	2	Ring	-
25	AR32151	1	GEAR	(SUB FOR AR33962) (ALSO ORDER (2) R33410, (5) R33411, (2) R33413 AND (4) R33414) R33062, SPIRAL BEVEL AND R33243, DIFFERENTIAL DRIVE GEAR SHIFT AND BEVEL PINION, WITH SHIMS (MATCH SET) (COLLAR SHIFT)
26	AR32465	1	GEAR	R33062, SPIRAL BEVEL, AND R33006, DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS (MATCH SET) (POWER SHIFT)
27	JD8159	1	Bearing Cone	-
28	JD8210	1	Bearing Cup	-
29	R34856	1	Bearing Housing W/O Bearing	R.H.

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) (SERIAL NO. 91000- ) [01I21]
