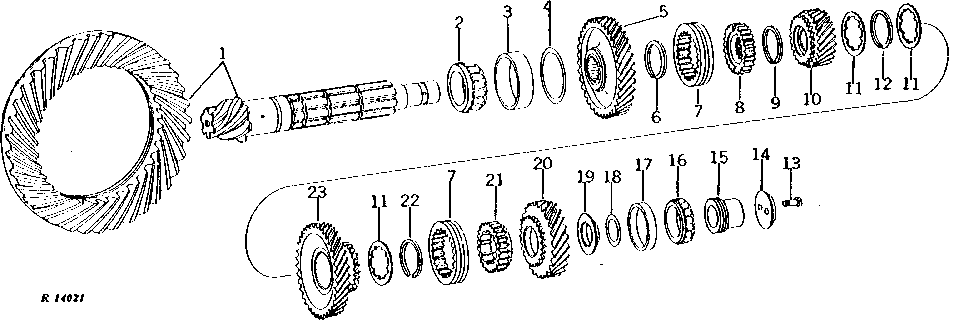

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (COLLAR SHIFT) [01G24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR32151	1	GEAR	(SUB FOR AR33962) (ALSO ORDER (2) R33410, (5) R33411, (2) R33413 AND (4) R33414) (MARKED R33062, SPIRAL BEVEL AND R33243, DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS) (MATCHED SET)
2	JD8977	1	BEARING CONE	-
3	JD8266	1	BEARING CUP	-
4	R33410	1	SHIM	.08 MM (.003")
4	R33411	1	SHIM	.13 MM (.005")
4	R33412	1	SHIM	.25 MM (.010")
5	AR32168	1	GEAR	FIRST AND THIRD SPEED, WITH BUSHING, (MARKED R33367)
6	R26211	1	SNAP RING	-
7	R26066	2	SPLINED COUPLING	-
8	R33387	1	GEAR	-
9	R33406	1	SNAP RING	-
10	R33388	1	GEAR	SIXTH AND EIGHTH SPEED
11	R26068	3	WASHER	-
12	R26212	1	SNAP RING	-
13	R57725	2	Screw	(SUB FOR R40835)
14	R33347	1	PLATE	-
15	R33346	1	BEARING RACE	(TRACTORS LESS PTO)
16	JD8980	1	BEARING CONE	( R33413 NO LONGER AVAILABLE)
17	JD7430	1	Bearing Cup	-
18	-	1	Part 20	(A) .08 MM (.003") ( R33413 NO LONGER AVAILABLE)
18	-	1	Part 21	(A) .102 MM (.004") ( R33414 NO LONGER AVAILABLE)
18	-	1	Part 22	(A) .25 MM (.010") ( R33415 NO LONGER AVAILABLE)
19	R69214	1	THRUST WASHER	(SUB FOR R33386)
20	R33370	1	GEAR	FOURTH AND SEVENTH SPEED
21	R26069	1	GEAR	FRONT
22	R26213	1	Snap Ring	-
23	R33369	1	GEAR	SECOND AND FIFTH SPEED

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (COLLAR SHIFT) [01G24]
