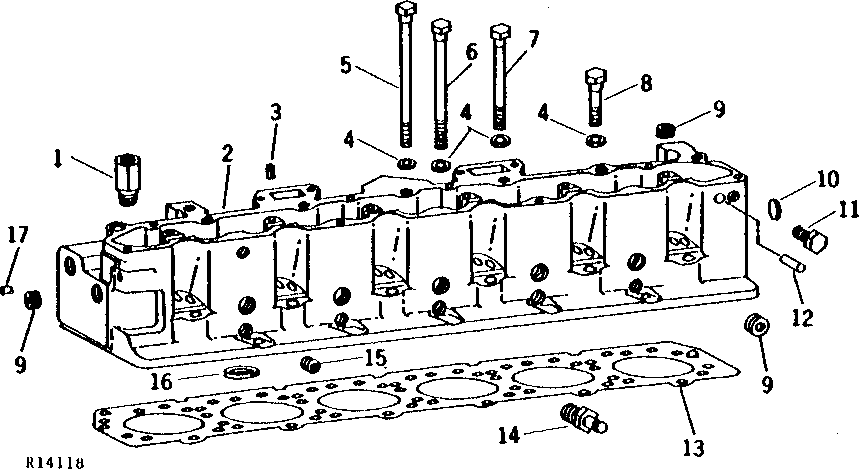

CYLINDER HEAD AND GASKET (ENGINE SERIAL NO. 215000- ) [01B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41285	1	Adapter Fitting	-
2	AR48182	1	CYLINDER HEAD	(MARKED R40550, R45180 OR R46080) (SUB FOR AR40311, AR40312, AR47067 OR AR47068) (ALSO ORDER (6) R45161)
2	AR48183	1	CYLINDER HEAD	(MARKED R40560 OR R46090) (SUB FOR AR40314) (DIESEL)
2	SE500614	1	CYLINDER HEAD	(REMANUFACTURED FOR AR48163)
3	34H387	1	Spring Pin	3/16" X 3/4"
4	R76126	26	Washer	(SUB FOR R42364)
5	R62420	7	SCREW	(SUB FOR R44216 OR R45194)
6	R62419	8	SCREW	(SUB FOR R44215 OR R45193)
7	R62418	5	SCREW	(SUB FOR R44214 OR R45192)
8	R42727	6	CAP SCREW	(GASOLINE)
8	R45161	6	CAP SCREW	(GASOLINE)
8	R62421	6	SCREW	(SUB FOR R42728 OR R45195) (DIESEL)
9	15H665	12	PIPE PLUG	3/4"
10	-	1	Part 14	( 30H37 - NO LONGER AVAILABLE)
11	R45692	2	Cap Screw	-
12	-	1	Part 16	( A120R NO LONGER USED)
13	R41609	1	ENGINE CYLINDER HEAD GASKET	(GASOLINE)
13	R48291	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R41709) (DIESEL)
14	R41071	1	Fitting	-
15	15H624	5	Pipe Plug	1/2", (SUB FOR AR72319)
16	R43681	1	VALVE SEAT INSERT	EXHAUST, STANDARD
16	R43683	1	VALVE SEAT INSERT	0.25MM (.010") EXHAUST, OVERSIZE
16	R43680	1	VALVE SEAT INSERT	INTAKE, STANDARD
16	R43682	1	VALVE SEAT INSERT	0.25MM (0.10") INTAKE, OVERSIZE
16	R33634	6	VALVE SEAT INSERT	EXHAUST, STANDARD, (USE WITH R46080 OR R46090)
17	F1743R	1	Dowel Pin	-

CYLINDER HEAD AND GASKET (ENGINE SERIAL NO. 215000- ) [01B11]
