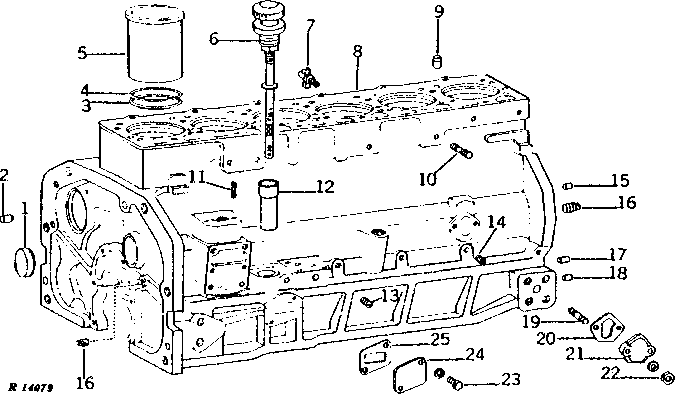

CYLINDER BLOCK, LINERS, AND DIPSTICK (ENGINE SERIAL NO. 215000- ) [01B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26115	1	Plug	-
2	R43634	1	DOWEL PIN	-
3	R26121	6	O-Ring	(SUB AR70645)
4	R41611	6	PACKING	(SUB AR70645)
5	R40614	6	CYLINDER LINER	(GASOLINE)
5	R40615	6	CYLINDER LINER	(SUB RE23165) (DIESEL)
6	AR40750	1	DIPSTICK	-
7	AR44382	1	DRAIN VALVE	-
8	-	1	Part 9	(GASOLINE) (MARKED R40670, R40680 OR R49520 OR R49530) (SUB FOR AR42425 OR AR53323) ( AR53324 - NO LONGER AVAILABLE)
8	AR52240	1	CYLINDER BLOCK	(DIESEL) (MARKED R40610, R40620 OR R48440) (SUB FOR AR42250) (ALSO ORDER AR48289, R32617 AND R46158)
9	R42340	2	Bushing	-
10	A5689R	2	STUD	(DIESEL)
11	M3636T	2	STUD	(GASOLINE)
12	R41070	1	TUBE	-
13	15H571	1	PIPE PLUG	3/8"
14	R104592	1	Pipe Plug	(5 USED GASOLINE) (7 USED DIESEL)
15	R39253	1	DOWEL PIN	(GASOLINE)
16	15H624	2	Pipe Plug	1/2", (SUB FOR AR72319)
17	R1612R	2	Dowel Pin	-
18	F1743R	2	Dowel Pin	-
19	R26934	2	STUD	-
20	R520618	1	Gasket	(SUB FOR R97350, R27285)
21	R27286	1	COVER	-
22	14H785	2	Nut	5/16"
22	12H303	2	Lock Washer	5/16"
23	19H2284	2	Cap Screw	3/8" X 7/8"
23	12H304	2	Lock Washer	3/8"
24	R26825	1	COVER	-
25	R46192	1	GASKET	(SUB FOR R26826)
..	-	1	Part 30	(A) (GASOLINE) (SUB FOR AR44067 OR AR53304) (NO LONGER AVAILABLE - AR63935)
..	RE13466	1	SHORT BLOCK ASSEMBLY	(A) (DIESEL) (SUB FOR AR44071, AR50298 OR AR52232) (ALSO ORDER AR48289, R32617, R46158 AND SE500889)
..	SE500607	1	SHORT BLOCK ASSEMBLY REMAN	(A) (REMANUFACTURED FOR RE13466)
..	SE500619	1	SHORT BLOCK ASSEMBLY REMAN	(A) (REMANUFACTURED FOR AR44071)

CYLINDER BLOCK, LINERS, AND DIPSTICK (ENGINE SERIAL NO. 215000- ) [01B07]
