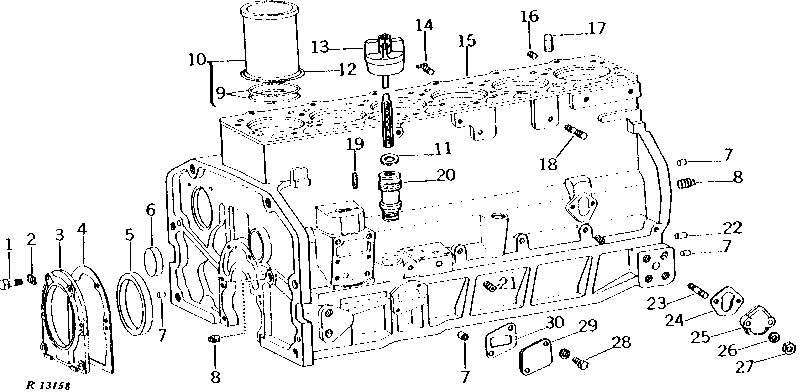

CYLINDER BLOCK, LINERS, AND DIPSTICK (ENGINE SERIAL NO. -214999) [01B03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1136	6	Washer	11/32" X 11/16" X 0.065", (USE WITH R78124)
1	19H2117	6	Cap Screw	5/16" X 1-1/8"
2	R35128	6	LOCK PLATE	-
3	R78124	1	HOUSING	(SUB FOR R26057 OR R41406)
4	R26058	1	Gasket	-
4	F1743R	2	Dowel Pin	(USE WITH BLOCKS MARKED R40930 OR R40940)
5	AR63095	1	SEAL	(SUB RE22764) (SUB FOR AR26438, AR34682 OR AR49650)
6	R26115	1	Plug	-
7	F1743R	4	Dowel Pin	-
7	F1743R	2	Dowel Pin	(USE WITH BLOCKS MARKED R40930 OR R40940)
7	R39253	1	DOWEL PIN	-
7	R43634	1	DOWEL PIN	(USE WITH BLOCKS MARKED R40930 OR R40940)
8	15H571	2	PIPE PLUG	3/8"
8	15H624	2	Pipe Plug	1/2", (SUB FOR AR72319 OR 15H624) (USE WITH BLOCKS MARKED R40930 OR R40940)
9	AR70645	1	O-RING KIT	(USE WITH BLOCKS MARKED R40930 OR R40940) (SUB FOR AR48687)
9	AR40155	1	O-RING KIT	-
10	R33197	6	CYLINDER LINER	(SUB FOR AR32194) (GASOLINE)
10	R32050	6	CYLINDER LINER	(SUB FOR AR32195) (DIESEL)
10	R40614	6	CYLINDER LINER	(GASOLINE) (USE WITH BLOCK MARKED R40940)
10	R40615	6	CYLINDER LINER	(DIESEL) (USE WITH BLOCK MARKED R40930) (SUB RE23165)
11	R31486	1	WASHER	-
11	R39520	1	WASHER	(NOT USED WITH BLOCKS MARKED R40930 OR R40940)
12	AR31744	1	SHIM	0.10 MM (.004") (DIESEL) (NOT USED WITH BLOCKS MARKED R40930)
12	AR39521	1	SHIM	0.40 MM (.015") (NOT USED WITH BLOCKS MARKED R40930 OR R40940)
12	AR31745	1	SHIM	0.76 MM (.030") (NOT USED WITH BLOCKS MARKED R40930 OR R40940)
13	AR40511	1	DIPSTICK	(SUB FOR AR32565 OR AR34917)
13	AR40750	1	DIPSTICK	(USE WITH BLOCKS MARKED R40930 OR R40940)
14	AT13740	1	Drain Valve	(SUB FOR AT27653)
14	AR44382	1	DRAIN VALVE	(USE WITH BLOCKS MARKED R40930 OR R40940)
15	-	1	Part 31	(MARKED R33170, R34330, R40860, R40870 OR R49550) (SUB FOR AR32920, AR40638 OR AR44559) (GASOLINE) ( AR50355 - NO LONGER AVAILABLE)
15	-	1	Part 32	(MARKED R40940 OR R49550) (GASOLINE) (USE ONLY WHEN BLOCK MARKED R40940 HAS BEEN PREVIOUSLY INSTALLED) (SUB FOR AR40657) NO LONGER AVAILABLE AR53326
15	-	1	Part 33	(MARKED R33180, R34340, R40890, R40900 OR R40930) (SUB FOR AR32921 OR AR40640) (DIESEL)( AR50354 NO LONGER AVAILABLE - ORDER INDIVIDUAL PARTS)
15	-	1	Part 34	(MARKED R40930) (DIESEL) (USE ONLY WHEN BLOCK MARKED R40930 HAS BEEN PREVIOUSLY INSTALLED) (NO LONGER AVAILABLE AR40656)
16	R104592	1	Pipe Plug	(SUB FOR R21630, THIS APPLICATION) (5 USED GASOLINE) (7 USED DIESEL)
17	R26241	2	DOWEL PIN	-
18	K3083R	2	STUD	(DIESEL)
19	M3636T	2	STUD	-
20	R41883	1	TUBE	(SUB FOR R35152 OR R40630)
20	R41070	1	TUBE	(USE WITH BLOCKS MARKED R40930 OR R40940)
21	15H571	1	PIPE PLUG	3/8"
22	R1612R	2	Dowel Pin	-
23	R26934	2	STUD	-
24	R520618	1	Gasket	(SUB FOR R97350, R27285)
25	R27286	1	COVER	-
26	12H303	2	Lock Washer	5/16"
27	14H785	2	Nut	5/16"
28	19H2284	2	Cap Screw	3/8" X 7/8", (DIESEL)
28	12H304	2	Lock Washer	3/8", (DIESEL)
29	R26825	1	COVER	(DIESEL)
30	R46192	1	GASKET	(SUB FOR R26826) (DIESEL)
..	AR49051	1	ENGINE OVERHAUL KIT	(SUB RE23173) (DIESEL)
..	AR52547	1	PISTON-LINER KIT	(SUB (6) AR40155, (6) AR52549 AND AR53624) (GASOLINE)
..	SE500606	1	SHORT BLOCK ASSEMBLY	(A) (REMANUFACTURED FOR RE13465)
..	SE500620	1	SHORT BLOCK ASSEMBLY REMAN	(A) (REMANUFACTURED FOR AR50352)
..	RE13465	1	SHORT BLOCK ASSEMBLY	(A) (SUB FOR AR34381 OR AR50352) (ALSO ORDER SE500889) (DIESEL)
..	-	1	Part 53	(A) (GASOLINE) (SUB FOR AR34379) ( AR53309 - NO LONGER AVAILABLE)
..	AR31034	1	BREAK-IN POWDER	(DIESEL)
..	RE22764	1	Seal	(SUB FOR RE14953 OR RE17352)

CYLINDER BLOCK, LINERS, AND DIPSTICK (ENGINE SERIAL NO. -214999) [01B03]
