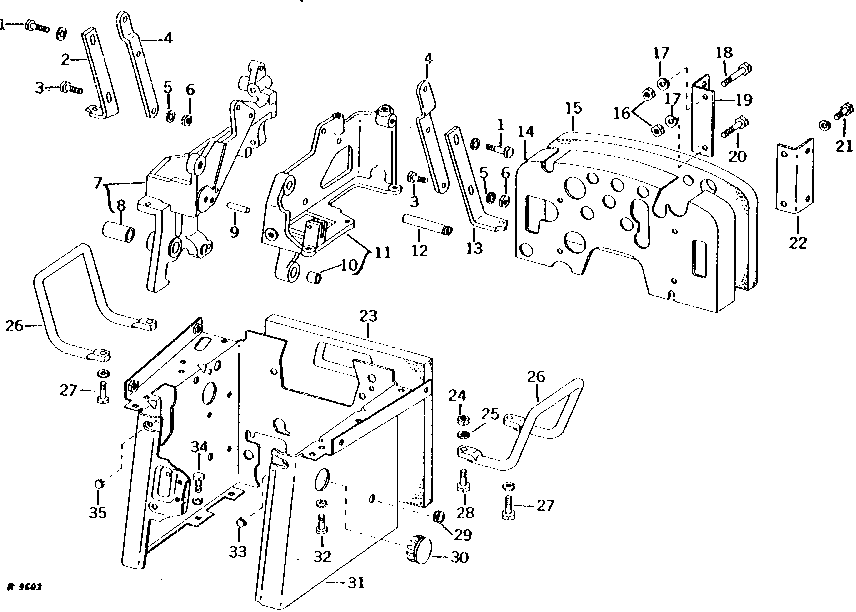

CONTROL SUPPORT AND STEERING VALVE BRACKETS (SERIAL NO. -200999) [02G18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	2	Lock Washer	3/8"
1	19H3483	2	Cap Screw	3/8" X 1-1/8"
2	R31231	1	SUPPORT	L.H.
3	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
4	R31229	2	SUPPORT	( R31229 NO LONGER AVAILABLE)
5	12H310	2	Lock Washer	3/8"
6	14H812	2	NUT	3/8"
7	AR32317	1	BRACKET	L.H. (MARKED R33599) (POWER SHIFT) (SUB AR41176 - NO LONGER AVAILABLE)
7	-	1	Part 9	L.H. (MARKED R41505) (POWER SHIFT) ( AR41176 - NO LONGER AVAILABLE)
7	-	1	Part 10	L.H. (MARKED R33967) (COLLAR SHIFT) ( AR32596 - NO LONGER AVAILABLE)
8	R27567	1	BUSHING	-
9	H826R	1	DOWEL PIN	-
10	F2030R	1	BUSHING	-
11	-	1	Part 14	R.H. (MARKED R33597) (POWER SHIFT) ( AR32315 - NO LONGER AVAILABLE)
11	AR33334	1	BRACKET	R.H. (MARKED R34332) (COLLAR SHIFT)
12	R33601	1	PIN FASTENER	(POWER SHIFT)
13	R31230	1	SUPPORT	R.H.
14	AR34011	1	ISOLATOR	(SUB AR34927 - NO LONGER AVAILABLE)
14	-	1	Part 19	( AR34927 - NO LONGER AVAILABLE)
15	R34562	1	FOAM PAD	-
16	14H812	2	NUT	3/8"
17	12H304	2	Lock Washer	3/8"
18	19H1726	1	Cap Screw	3/8" X 2-1/4"
19	R26895	1	ANGLE	(TRACTORS LESS SELECTIVE CONTROL) ( R26895 NO LONGER AVAILABLE)
20	19H1765	1	Cap Screw	3/8" X 1-3/4"
21	19H2284	2	Cap Screw	3/8" X 7/8"
21	12H304	2	Lock Washer	3/8"
22	R26895	1	ANGLE	( R26895 NO LONGER AVAILABLE)
23	R26675	1	FOAM PAD	(GASOLINE)
23	R44586	1	PAD	(SUB FOR R34565) (DIESEL)
24	14H812	1	NUT	3/8"
25	12H304	1	Lock Washer	3/8"
26	-	2	Part 33	(COLLAR SHIFT) ( R27884, NO LONGER AVAILABLE)
27	12H304	3	Lock Washer	3/8"
27	19H3239	3	Cap Screw	3/8" X 1-1/4"
28	19H2676	1	Cap Screw	HS, SAE 8, 3/8" X 1"
29	R34811	2	GROMMET	-
30	R66561	1	PLUG	(TRACTORS LESS PTO) (SUB FOR R34444, THIS APPLICATION)
31	-	1	Part 39	( AR32818 - NO LONGER AVAILABLE)
32	19H2676	1	Cap Screw	HS, SAE 8, 3/8" X 1", (2 USED COLLAR SHIFT, 6 USED POWER SHIFT)
32	12H304	1	Lock Washer	3/8", (2 USED COLLAR SHIFT, 6 USED POWER SHIFT)
33	R28473	1	Plug	(DIESEL)
34	19H1648	6	Cap Screw	3/8" X 3/4"
34	12H304	6	Lock Washer	3/8"
35	R28473	1	Plug	(COLLAR SHIFT)
