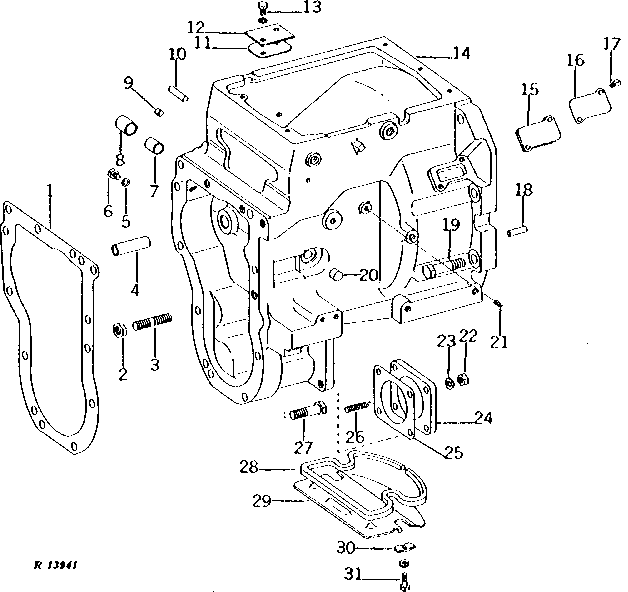

CLUTCH HOUSING (COLLAR SHIFT) (SERIAL NO. 201000- ) [01F20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33895	1	GASKET	-
2	14H794	1	Nut	3/4"
3	F1549R	1	STUD	-
4	R26663	1	DOWEL PIN	-
5	R26287	1	O-Ring	-
6	R31631	1	DRAIN PLUG	-
7	R26641	1	BUSHING	R.H.
8	R26642	1	BUSHING	L.H.
9	R31374	1	SOLID SHIM	(TRACTORS LESS PTO)
10	34H371	1	Spring Pin	1/2" X 2"
11	-	1	Part 11	(TRACTORS LESS PTO) ( R41421 USE IF AVAILABLE)
12	-	1	Part 12	(LESS PTO) ( R41422 USE IF AVAILABLE)
13	19H2284	2	Cap Screw	3/8" X 7/8"
13	12H304	2	Lock Washer	3/8"
14	AR41001	1	HOUSING	(MARKED R40600)
15	R67989	1	Gasket	TIMING HOLE COVER (SUB FOR R31494)
16	R31493	1	Cover	TIMING HOLE
17	21H1318	2	Screw	0.216" X 1/2"
18	C1220R	2	DOWEL PIN	-
19	19H1707	6	CAP SCREW	3/4" X 2-3/4"
20	R27035	1	PLUG	-
21	15H558	2	Pipe Plug	1/8"
22	14H1040	4	Nut	1/2", (SUB FOR 14H809)
23	12H301	4	Lock Washer	1/2"
24	R33216	1	COVER	(TRACTORS LESS PTO)
25	R33236	1	GASKET	-
26	R32101	4	STUD	-
27	19H2431	1	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
27	19H2600	2	Cap Screw	3/4" X 2-5/8"
27	19H2728	5	Cap Screw	HS, SAE 8, 3/4" X 3"
28	R91558	1	PAD	(SUB FOR R30877)
29	R33403	1	COVER	-
30	R27640	2	CLAMP	-
31	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
31	12H304	2	Lock Washer	3/8"

CLUTCH HOUSING (COLLAR SHIFT) (SERIAL NO. 201000- ) [01F20]
