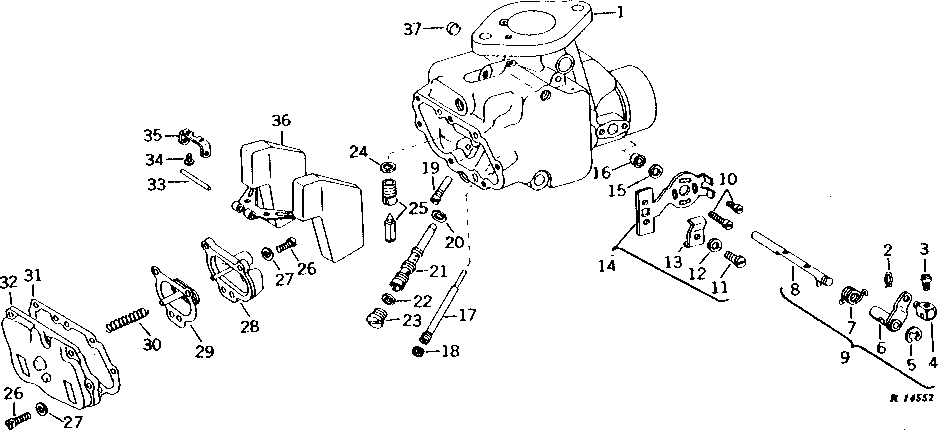

CARBURETOR (MARVEL-SCHEBLER) (ENGINE SERIAL NO. 201000- ) [01E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR45160	1	CARBURETOR	(MARVEL SCHEBLER MODEL USX-48SL) (SUB AR45162 AND R26499)
2	R10185	1	Spring Locking Pin	-
3	21H1293	1	SCREW	0.164" X 5/16"
4	R10184	1	SWIVEL	-
5	R72654	1	Snap Ring	(SUB FOR R27507)
6	AR10096	1	LEVER	-
7	R10183	1	TORSION SPRING	-
8	AR10095	1	SHAFT	-
8	34H227	1	Spring Pin	3/32" X 1/2"
9	AR10301	1	SHAFT	-
10	-	1	Part 12	( R45665 NO LONGER AVAILABLE)
10	12M7084	2	Lock Washer	4.300 MM
10	21H1299	1	SCREW	0.164" X 3/8"
11	21H1293	1	SCREW	0.164" X 5/16"
12	12H315	1	Lock Washer	0.164"
13	R10188	1	CLIP	-
14	-	1	Part 17	( AR10302 - NO LONGER AVAILABLE)
15	R10187	1	SHIM	-
16	R10186	1	SEAL	-
17	-	1	Part 20	( AR39831 NO LONGER AVAILABLE)
18	-	1	Part 21	( R39874 NO LONGER AVAILABLE)
19	-	1	Part 22	(R10204 NO LONGER AVAILABLE)
20	R10209	1	WASHER	-
21	R10190	1	NOZZLE	-
22	R10170	1	GASKET	-
23	R10207	1	FITTING PLUG	-
24	R10223	1	GASKET	-
25	AR47741	1	VALVE	-
26	21H1158	10	Screw	0.164" X 1/2"
27	12H315	10	Lock Washer	0.164"
28	AR52450	1	CARBURETOR	(MARVEL-SCHEBLER MODEL USC-48SL) (SUB FOR AR39832 OR AR45160) (SUB AR45162 AND R26499)
29	AR10108	1	DIAPHRAGM	-
30	R10215	1	SPRING	-
31	R10217	1	GASKET	-
32	AR10115	1	COVER	(SUB FOR AR47745)
33	R10211	1	SHAFT	-
34	37H1	2	SCREW	1/8" X 3/8"
35	-	1	Part 38	( R10218 NO LONGER AVAILABLE)
36	R10211	1	SHAFT	-
37	R10198	1	PLUG	-
