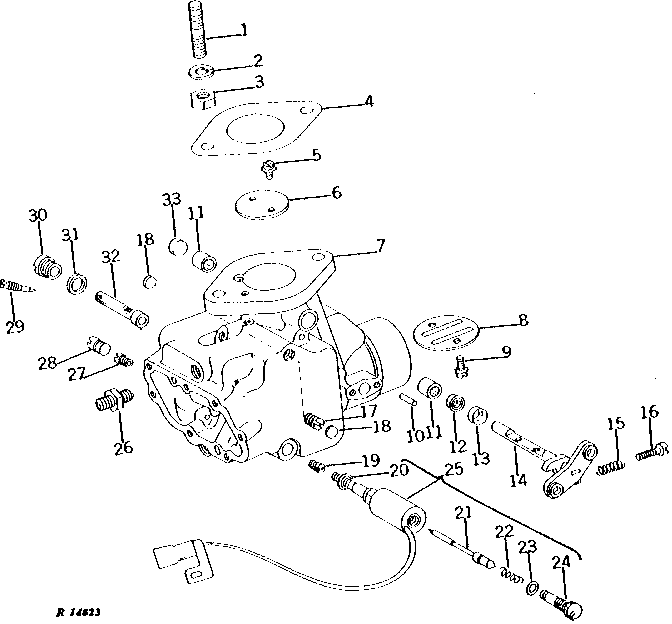

CARBURETOR (MARVEL-SCHEBLER) (ENGINE SERIAL NO. 201000- ) [01E13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R56481	2	STUD	(SUB FOR M3636T)
2	12H304	2	Lock Washer	3/8"
3	14H1076	2	Nut	3/8"
4	R26499	1	GASKET	-
5	AA6086R	2	SCREW	-
6	R10083	1	DISK	-
7	AR45160	1	CARBURETOR	(SUB AR45162 AND R26499) (MARVEL-SCHEBLER MODEL USX-48SL)
8	R10181	1	FAN	-
9	AR723R	2	SCREW	-
10	34H387	1	Spring Pin	3/16" X 3/4"
11	JD8867	2	NEEDLE BEARING	-
12	R10194	1	PACKING	-
13	R10182	1	ROUND RETAINER	-
14	AR10116	1	SHAFT	-
15	R10104	1	SPRING	-
16	21H1160	1	SCREW	0.164" X 3/4"
17	-	1	Part 17	( R10226 NO LONGER AVAILABLE)
18	-	2	Part 18	(30H34 NO LONGER AVAILABLE)
19	-	1	Part 19	(R45663 NO LONGER AVAILABLE)
20	H22548	1	GASKET	-
21	R45664	1	NEEDLE	-
22	T25152	1	SPRING	-
23	R34812	1	O-Ring	(SUB FOR T25154)
24	T25151	1	SCREW	-
25	AT30178	1	SOLENOID	(SUB FOR AR47743)
26	R27346	1	Fitting	-
27	-	1	Part 27	(R10224 NO LONGER AVAILABLE)
28	-	1	Part 28	(T31157 NO LONGER AVAILABLE)
29	R10203	1	NEEDLE ROLLER	-
30	R10206	1	FITTING PLUG	-
31	R10222	1	GASKET	-
32	AR10104	1	FUEL FILTER	-
33	R10300	1	PLUG	-
..	AR45160	1	CARBURETOR	(MARVEL-SCHEBLER MODEL USX-48SL) (SUB AR45162 AND R26499)
..	AR10109	1	GASKET KIT	(SUB FOR AT30175 OR AR56084)
..	AR47746	1	KIT	(MARVEL-SCHEBLER USX-48SL)
..	-	1	Part 37	(MAKE FROM PM797NA)
