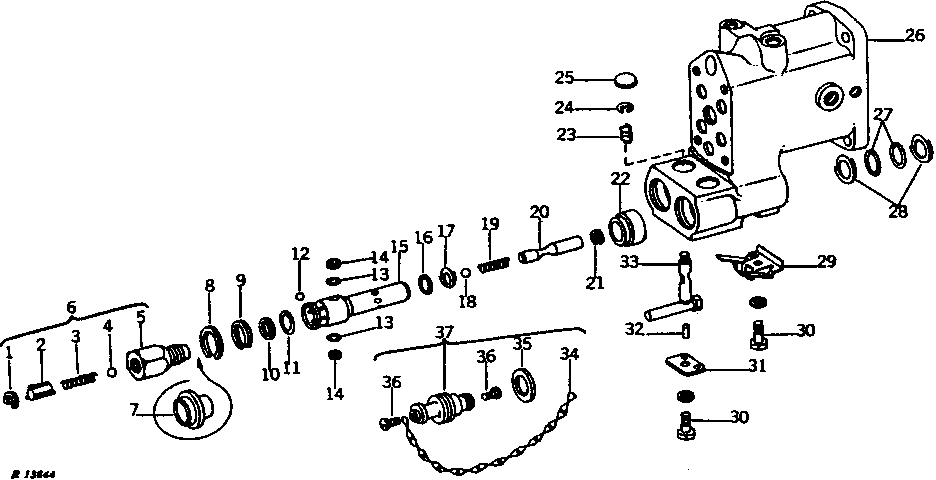

BREAKAWAY COUPLER (SERIAL NO. 201000- ) [02E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59633	2	WEAR RING	(SUB FOR R28204) (SUB AR93819, THIS APPLICATION)
2	R28085	2	GUIDE	(SUB AR93819, THIS APPLICATION)
3	R28084	2	SPRING	(SUB AR93819, THIS APPLICATION)
4	D2361R	2	Ball	1/2", (SUB AR93819, THIS APPLICATION)
5	R27430	2	HYD. QUICK-CONNECT COUPLER	(SUB AR93819, THIS APPLICATION)
6	AR93819	2	HYDR.QUICK COUPLER PLUG	WITHOUT DUST COVER, (SUB FOR AR30210, WITH DUST COVER, THIS APPLICATION)
7	R28006	2	CAP	-
8	R34399	2	Snap Ring	-
9	R32356	2	SNAP RING	-
10	R26485	2	BACK-UP RING	(A)
11	R495R	2	O-Ring	(A)
12	400R	12	Ball	1/4"
13	A3917R	4	O-Ring	(A)
14	R26484	4	Back-Up Ring	(A)
15	R34397	2	SOCKET OUTLET	-
16	R375R	2	O-Ring	(A)
17	R26482	2	Ring	(A)
18	D2361R	2	Ball	1/2"
19	R28084	2	SPRING	-
20	R34400	2	PLUG	-
21	R26483	2	SNAP RING	(A)
22	R34398	2	SLEEVE	-
23	R31890	2	Spring	-
24	R72653	2	Snap Ring	(SUB FOR M2396T)
25	30H15	2	PLUG	(A) 1-1/8"
26	AR82572	1	HOUSING	WITH GUIDE (MARKED R40499 OR R65284) (ALSO ORDER AR85628 CAP AND R65289 VALVE) (SUB FOR AR40827)
27	A4730R	4	O-Ring	(A)
28	R26480	4	BACK-UP RING	(A)
29	R45618	1	CLIP	-
30	12H303	3	Lock Washer	5/16"
30	19H2664	2	Cap Screw	5/16" X 3/4"
31	R41494	1	CAM	-
32	34H244	2	SPRING PIN	1/8" X 9/16"
33	AR41139	1	LEVER	R.H.
33	AR41140	1	LEVER	L.H.
34	R49193	2	Link Chain	(SUB FOR A3184R)
35	R34589	2	WASHER	-
36	37H97	4	SCREW	0.242" X 3/4"
37	AR34059	2	PLUG	-
..	AR30685	1	KIT	OVERHAUL (CONSISTS OF PARTS IDENTIFIED BY (A)

BREAKAWAY COUPLER (SERIAL NO. 201000- ) [02E06]
