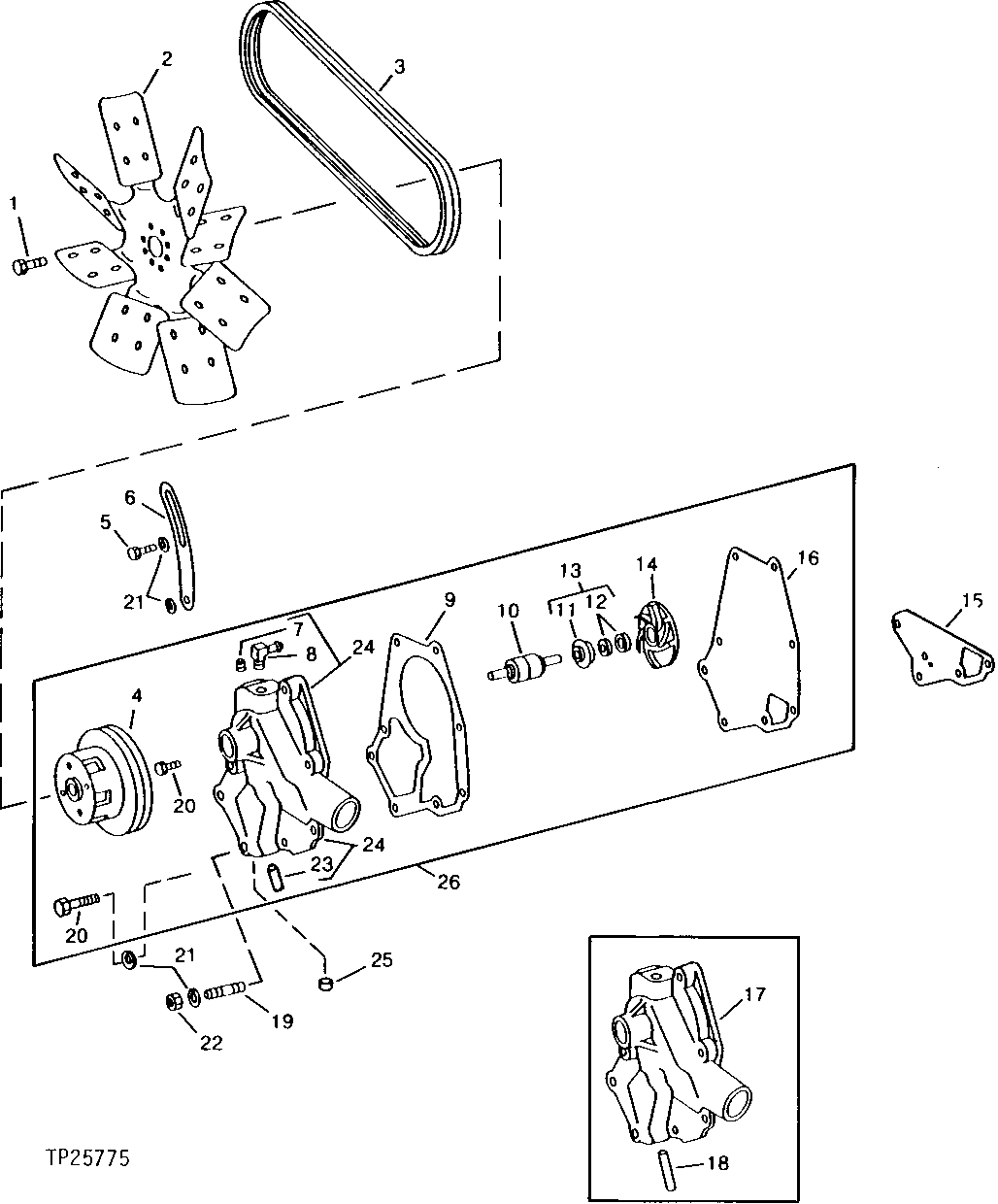

WATER PUMP ASSEMBLY (SERIAL NO. -165808) [01D03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	4	Cap Screw	3/8" X 1"
2	AT24834	1	Blower Fan	(BLOWER TYPE)
2	AT58891	1	FAN	(SUCTION) (6 BLADE) (SUB FOR AU43304)
3	AT24833	1	BELT SET	(SET OF 2 BELTS)
4	T29704	1	PULLEY	WELLAND SERIAL NO. ( -XXXXXX)
4	R51963	1	PULLEY	WELLAND SERIAL NO. (XXXXXX- )
5	19H3065	4	Cap Screw	3/8" X 2"
6	R108404	1	Strap	(SUB FOR T20204 AND R107734)
7	15H584	1	Pipe Plug	1/2"
8	AR26732	1	Elbow Fitting	-
9	T25485	1	GASKET	-
10	JD9398	1	Bearing	WELLAND SERIAL NO. ( -XXXXXX)
10	JD8643	1	Bearing	WELLAND SERIAL NO. (XXXXXX- )
11	-	1	Part 14	(SUB AR101549) (SUB FOR T27261)
12	-	1	Part 15	(SUB AR101549)
13	AR101549	1	Seal Kit	-
14	R40979	1	IMPELLER	-
15	T20243	1	Gasket	-
16	T25484	1	COVER	-
17	-	1	Part 20	WELLAND SERIAL NO. ( -XXXXXX) (SUB RE19939 HOUSING, (2) R48993 TUBES, (2) R48998 HOSES AND (2) M1098T PLUGS) (SUB FOR T29701)
17	-	1	Part 21	(SUB RE19939 HOUSING, (2) R48993 TUBES, R48990 WATER LINE, R48991 WATER LINE, R48989 HOSE, T22942 HOSE AND (4) AR21839 HOSE CLAMPS) (SUB FOR T31291) (SUB FOR T31291)
18	T25481	2	BUSHING	WELLAND SERIAL NO. ( -XXXXXX)
19	T25701	1	Stud	-
20	19H2545	3	CAP SCREW	3/8" X 1-3/8"
21	12H304	9	Lock Washer	3/8"
22	14H812	1	NUT	3/8"
23	R48993	2	Tube	WELLAND SERIAL NO. (XXXXXX- )
24	RE19939	1	Housing	WELLAND SERIAL NO. (XXXXXX- ) (MARKED R48994) (SUB FOR AR80112) (MARKED R48994)
24	AR80111	1	HOUSING	WELLAND SERIAL NO. (XXXXXX- ) (MARKED R51961)
25	M1098T	1	CAP	-
26	AT27892	1	WATER PUMP	WELLAND SERIAL NO. ( -XXXXXX) (SUB AR56264 PUMP AND (2) R48998 HOSES) (SUB FOR AR25197)
26	AT30401	1	WATER PUMP	WELLAND SERIAL NO. (XXXXXX-XXXXXX) (SUB AR56264 WATER PUMP, T31302 WATER LINE, T31305 WATER LINE, (2) R48998 HOSES AND (4) AR21839 HOSE CLAMPS)
26	AR52420	1	WATER PUMP	WELLAND SERIAL NO. (XXXXXX-XXXXXX) (SUB AR56264 AND R48998 HOSES)
26	AR56264	1	WATER PUMP	WELLAND SERIAL NO. (XXXXXX- )
