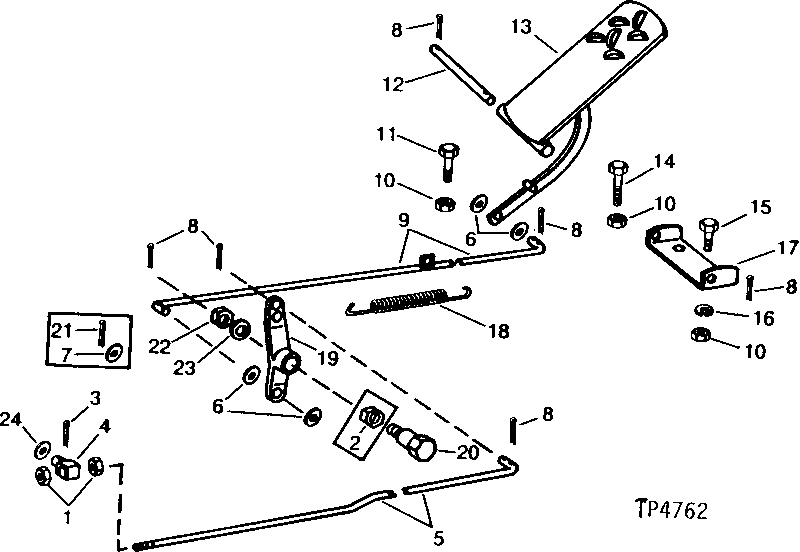

SPEED CONTROL LINKAGE (WITHOUT BACKHOE) [01C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H649	2	Nut	1/4"
2	14H826	1	Nut	WELLAND SERIAL NO. ( -XXXXXX) 1/2"
3	11M7081	1	Cotter Pin	2.500 X 20 MM
4	T48835	1	SWIVEL	(SUB FOR T22242) (ALSO ORDER ONE 24H1287 WASHER)
5	-	1	Part 5	WELLAND SERIAL NO. ( -85199) ( T27275 NO LONGER AVAILABLE)
5	T35277	1	ROD	WELLAND SERIAL NO. ( -85199) (USE WHEN AR69825 OR AR69827 REPLACEMENT PUMP HAS BEEN INSTALLED)
5	T35277	1	ROD	WELLAND SERIAL NO. (85200- )
6	24H1290	4	Washer	21/64" X 3/4" X 0.035"
7	24M7096	1	Washer	WELLAND SERIAL NO. ( -XXXXXX) 13/32" X 11/16" X 0.06"
8	11M7077	8	Cotter Pin	1.600 X 25 MM
9	AT25319	1	ROD	FRONT
10	14H785	4	Nut	5/16"
11	19H2831	1	Cap Screw	5/16" X 1-1/2"
12	T27268	1	PIN FASTENER	-
13	AT25317	1	PEDAL	-
14	19H3131	1	Cap Screw	5/16" X 2"
15	19H2664	2	Cap Screw	5/16" X 3/4"
16	12H303	2	Lock Washer	5/16"
17	T27263	1	BRACKET	-
18	T25367	1	EXTENSION SPRING	-
19	AT25318	1	BELLCRANK	WELLAND SERIAL NO. ( -85029) (SUB T31595, T19851, 14H856 AND 12H301)
19	T31595	1	BELLCRANK	WELLAND SERIAL NO. (85030- )
20	T27269	1	BOLT	WELLAND SERIAL NO. ( -85029) (SUB T31595, T19851, 14H856 AND 12H301)
20	T19851	1	BOLT	WELLAND SERIAL NO. (85030- )
21	11H206	1	Cotter Pin	WELLAND SERIAL NO. ( -85029) 3/32" X 3/4"
22	14H856	1	Nut	WELLAND SERIAL NO. (85030- ) 1/2"
23	12H301	1	Lock Washer	WELLAND SERIAL NO. (85030- ) 1/2"
24	24H1287	1	Washer	9/32" X 5/8" X 0.065", (USE WITH T48835)

SPEED CONTROL LINKAGE (WITHOUT BACKHOE) [01C23]
