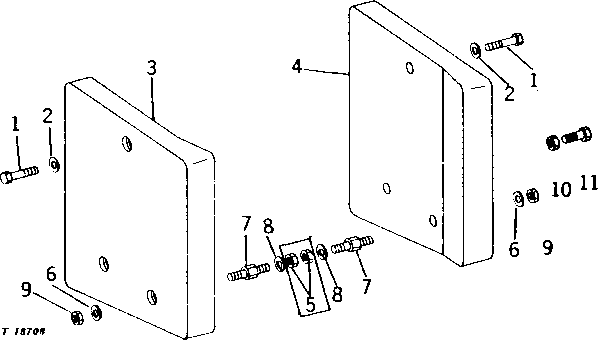

SIDE WEIGHTS (USE WITH DROTT BUCKET, LOG LOADER AND LUMBER FORK) [02E12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3185	2	Cap Screw	WELLAND SER. NO. (XXXXXX- ) 5/8" X 5-3/4", (WITH ADDITIONAL WEIGHT) (JD544, JD544-A)
1	19H2630	2	CAP SCREW	5/8" X 5-3/4", (JD544-A)
1	19H3208	2	Cap Screw	5/8" X 3", (ONE WEIGHT ONLY) (JD544, JD544-A)
2	T19584	2	WASHER	-
3	-	1	Part 5	LEFT SIDE, (JD544, JD544-A) ( T29745 NO LONGER AVAILABLE) (SUB T31474 IF AVAILABLE)
3	-	2	Part 6	LEFT SIDE, (JD-544-H) ( T31474 USE IF AVAILABLE)
4	-	1	Part 7	RIGHT SIDE, (JD544, JD544-A) ( T29744 NO LONGER AVAILABLE) (SUB T31473 USE IF AVAILABLE)
4	-	2	Part 8	RIGHT SIDE, (JD544-H) ( T31473 USE IF AVAILABLE)
5	14H794	4	Nut	3/4" WELLAND SER. NO. ( -XXXXXX)
6	R78019	4	Washer	(SUB FOR T10510)
6	R78019	8	Washer	(SUB FOR T10510)
6	T10510	8	Washer	WELLAND SER. NO. (XXXXXX- ) (WITH ADDITIONAL WEIGHT) (USE IF AVAILABLE)
6	T10510	4	Washer	WELLAND SER. NO. ( -XXXXXX) (USE IF AVAILABLE)
7	T27724	4	STUD	-
8	12H236	4	Lock Washer	WELLAND SER. NO. ( -XXXXXX) 3/4"
9	14H794	4	Nut	3/4", (WITHOUT ADDITIONAL WEIGHT) (JD544, JD544-A)
10	T31475	4	NUT	WELLAND SER. NO. (XXXXXX- ) 3/4", (WEIGHT TO ADDITIONAL WEIGHT)
11	19H2716	4	Cap Screw	WELLAND SER. NO. (XXXXXX- ) 3/4" X 1-1/2", (WITH ADDITIONAL WEIGHT)
..	AT30368	1	MOUNTING PARTS	(SECOND WEIGHT TO FIRST WEIGHT) (INCLUDES (4) R78019 WASHERS, (4) T31475 NUTS, (4) 19H1835 CAP SCREWS, AND (2) 19H2630 CAP SCREWS) (NO LONGER AVAILABLE)
..	AT28508	1	HANGER	WELLAND SER. NO. ( -XXXXXX) FOR SIDE WEIGHT, (SUB AT30367)
..	AT30367	1	PACKAGE OF PARTS	WELLAND SER. NO. (XXXXXX- ) (FIRST WEIGHT TO UNIT) (INCLUDES (4) R78019 WASHERS, (4) T19584 WASHERS, (4) 14H1058 NUTS, AND (2) 19H1863 CAP SCREWS)
..	AT30365	1	WEIGHT	(FIRST WEIGHT TO UNIT) (SUB T31473 IF AVAILABLE, T31474 IF AVAILABLE AND AT30367)
..	AT30366	1	WEIGHT	(SECOND WEIGHT TO FIRST WEIGHT) (SUB T31473 IF AVAILABLE, T31474 IF AVAILABALE AND AT30367)
