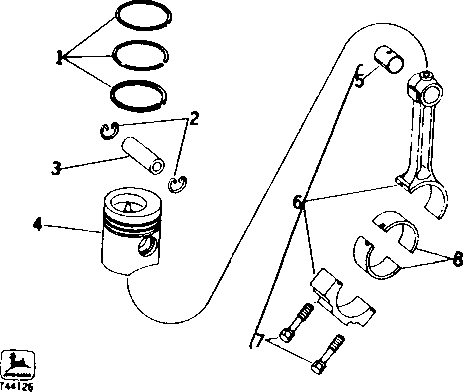

PISTONS AND CONNECTING RODS (329 CUBIC INCH ENGINE) (SERIAL NO. 121500- ) [01B17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR55759	6	PISTON RING KIT	(A) (B) (SET OF 3 RINGS) (6 SETS USED) (SUB FOR AT29213)
2	R51112	12	Snap Ring	WELLAND SERIAL NO. ( -XXXXXX) (SUB FOR M67T)
2	M41029	12	Snap Ring	WELLAND SERIAL NO. (XXXXXX- )
3	T26149	6	PISTON PIN	WELLAND SERIAL NO. (85200-XXXXXX)
3	R125754	6	Piston Pin	WELLAND SERIAL NO. (XXXXXX- ) (SUB FOR R51731)
4	RE53265	6	PISTON	(B) WELLAND SERIAL NO. (XXXXXX- ) (SUB FOR T30015, R51451 AND AR78310) (BOHN) WHEN RE53265 REPLACES AR78310 ALL PISTONS MUST BE REPLACED.
4	AR77762	6	PISTON	(A) WELLAND SERIAL NO. (XXXXXX- ) (SUB FOR AR55984)
5	T23471	6	BUSHING	WELLAND SERIAL NO. ( -XXXXXX)
5	R55647	6	BUSHING	WELLAND SERIAL NO. (XXXXXX- )
6	RE21076	6	Connecting Rod	WELLAND SERIAL NO. (XXXXXX- ) (WITH SCREWS AND BUSHINGS) (SUB FOR AR55978 AND RE16495)
6	AT18005	6	CONNECTING ROD	WELLAND SERIAL NO. ( -XXXXXX) (WITH SCREWS AND BUSHINGS)
7	R74194	12	SCREW	(SUB FOR T20009) (USE WITH AT18005 AND AR55978)
7	R80033	12	Cap Screw	(USE WITH RE16495 AND RE21076)
8	AT21138	6	BEARING	(SET OF TWO T20011)
8	-	6	Part 15	( AT21122 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF TWO T23566)
8	AT21124	6	BEARING	0.25 MM (.010") UNDERSIZE (SET OF TWO T23568)
8	AT21126	6	BEARING	0.51 MM (.020") UNDERSIZE (SET OF TWO T23570)
8	AT21128	6	BEARING	0.76 MM (.030) UNDERSIZE (SET OF TWO T23572)
..	AR78041	6	PISTON-LINER KIT	WELLAND SERIAL NO. (XXXXXX- ) ((CONTAINS CYLINDER LINER WITH O-RINGS AND PISTON WITH PISTON RINGS) (SUB FOR AR71592)
..	AR71593	6	PISTON-LINER KIT	WELLAND SERIAL NO. (XXXXXX-XXXXXX) (CONTIANS CYLINDER LINER WITH O-RINGS AND PISTON WITH PISTON RINGS) (SUB FOR AR82286)

PISTONS AND CONNECTING RODS (329 CUBIC INCH ENGINE) (SERIAL NO. 121500- ) [01B17]
