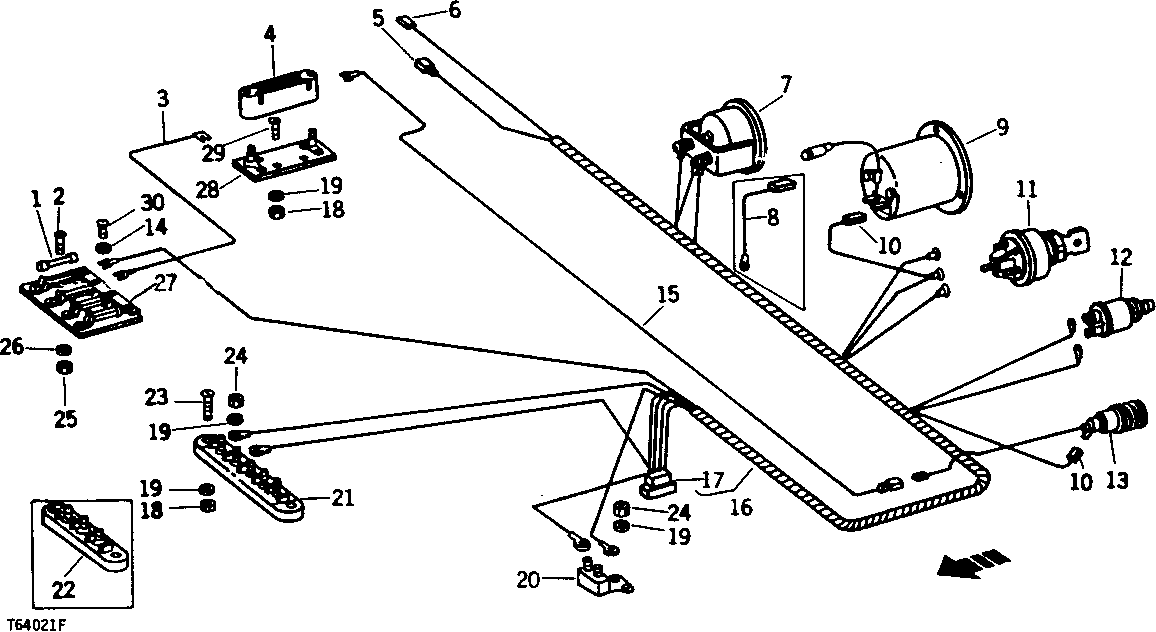

L.H. INSTRUMENT PANEL WIRING SYSTEM [02G13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT28077	3	Fuse	10 AMP
1	AN10395	4	FUSE	15 AMP, (SUB AT28077, THIS APPLICATION)
1	AT15162	1	FUSE	30 AMP (HORN)
2	21H1345	1	Screw	0.164" X 5/8", (COWL PLATE)
2	21H1315	1	Screw	0.164" X 3/4", (COWL PLATE AND HARNESS CONNECTOR)
3	AT25434	1	WIRING LEAD	-
4	AT163088	1	FLASHER	(SUB FOR AT25436)
5	T28586	1	Electrical Connector Assy	-
6	T28583	1	Elec. Connector Housing	-
7	AT149002	1	KIT	(SUB FOR AT20175 AND AR65444)
8	-	1	Part 11	WELLAND SER. NO. ( -XXXXXX) (MAKE FROM AR84006 LEAD WIRE KIT)
9	AT25261	1	HOUR METER	WELLAND SER. NO. ( -XXXXXX) (SUB AT160120)
9	AT160120	1	HOUR METER	(SUB FOR AT33995 OR AT61458)
10	T28584	2	CONNECTOR	-
11	AT25257	1	SWITCH	WELLAND SER. NO. ( -XXXXXX) (FOR PARTS SEE PAGE 65-19) (SUB AT145930)
11	AT145930	1	SWITCH	WELLAND SERIAL NO. (XXXXXX- ) (SUB FOR AT37390)
12	AT25258	1	SWITCH	(FOR PARTS SEE PAGE 65-20)
13	AT39737	1	LENS	(SUB FOR AT25262) (ALSO ORDER ONE R30378 SPRING, ONE AR55694 BULB, AND ONE AT44165 LEAD) (FOR PARTS, SEE PAGE 65-5)
14	12M7084	6	Lock Washer	4.300 MM
15	AT25433	1	WIRING LEAD	FLASHER TO WARNING LIGHT
16	AT25263	1	WIRING HARNESS	L.H.
17	T21203	1	TERMINAL	-
18	14H778	6	Nut	0.190"
19	12H246	11	LOCK WASHER	0.190"
20	AR28403	1	CIRCUIT BREAKER	(WITHOUT CAB)
20	AN152652	1	CIRCUIT BREAKER	(SUB FOR AT29162) (WITH CAB)
21	AT31255	1	TERMINAL	WELLAND SER. NO. (85000- ) TERMINAL
22	AT25453	1	TERMINAL	WELLAND SER. NO. ( -84999) (SUB AT31255) TERMINAL
23	21H1195	2	SCREW	0.190" X 7/8"
24	14H631	5	Nut	0.190"
25	14H605	2	Nut	0.164"
26	12H315	2	Lock Washer	0.164"
27	AT25454	1	FUSE BOX	(SUB AT28076)
27	AT28076	1	FUSE BOX	-
28	AT25435	1	TERMINAL	FLASHER TERMINAL
29	21H1317	2	SCREW	0.190" X 5/8"
30	21H1309	8	Screw	0.138" X 1/4"
30	21H1292	6	SCREW	0.164" X 1/4"
