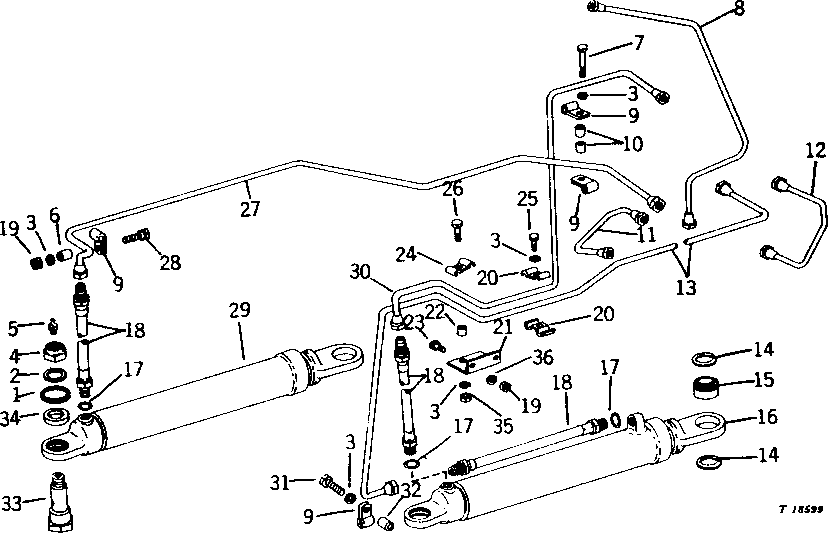

HYDRAULIC STEERING LINES AND CYLINDERS [02B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T28070	4	WASHER	-
2	R26681	4	THRUST WASHER	-
3	12H304	5	Lock Washer	3/8"
4	T27821	4	LOCK NUT	-
5	JD7759	2	Lubrication Fitting	1/8", FRONT
5	JD7781	2	Lubrication Fitting	1/8", REAR
6	28H2522	1	Spacer	3/8" X 13/16"
7	19H2458	1	Cap Screw	3/8" X 3"
8	AT26319	1	LINE	STEERING LINE
9	T24958	4	Clip	-
10	28H2547	2	Spacer	3/8" X 1"
11	AT26359	1	LINE	STEERING VALVE
12	AT26318	1	LINE	STEERING VALVE
13	AT26326	1	LINE	R.H. STEERING CYLINDER
14	F2367R	8	SNAP RING	-
15	AT61453	4	BUSHING	(SUB FOR AT25833 AND AT54529)
16	AU41698	1	HYDRAULIC CYLINDER	R.H.
17	R26375	3	O-Ring	-
18	T22012	3	HYDRAULIC HOSE - FABRICATE	436 MM (3/4" X 17-1/4")
19	14H812	2	NUT	WELLAND SERIAL NO. ( -XXXXXX) 3/8"
20	R34064	2	CLAMP	-
21	-	1	Part 22	WELLAND SERIAL NO. ( -XXXXXX) ( T27283 NO LONGER AVAILABLE)
22	28H860	1	Washer	0.423" X 0.675" X 3/8"
23	19H2676	2	Cap Screw	WELLAND SERIAL NO. ( -XXXXXX) 3/8" X 1"
24	E16981	1	CLAMP	-
25	19H1648	1	Cap Screw	3/8" X 3/4"
26	19H3239	1	Cap Screw	3/8" X 1-1/4"
27	AT26358	1	LINE	L.H. STEERING CYLINDER
28	19H3065	1	Cap Screw	3/8" X 2"
29	AU41697	1	CYLINDER	L.H.
30	AT25603	1	LINE	R.H.
31	19H2722	1	Cap Screw	3/8" X 2-3/8"
32	28H2576	1	SPACER	3/8" X 1-1/2"
33	T59402	4	CAP SCREW	(SUB FOR T27277)
34	T28071	4	BUSHING	-
35	14H812	2	NUT	3/8"
36	12H304	2	Lock Washer	WELLAND SERIAL NO. ( -XXXXXX) 3/8"

HYDRAULIC STEERING LINES AND CYLINDERS [02B05]
