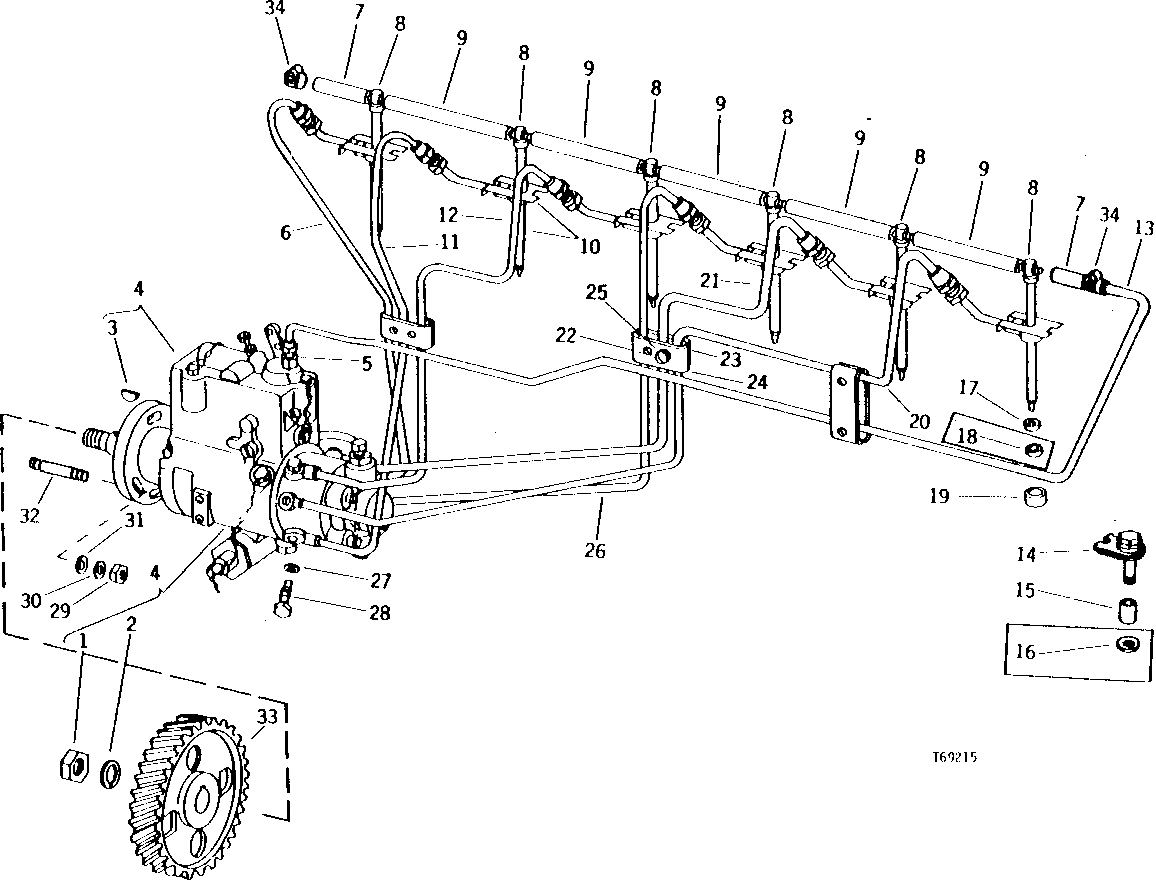

FUEL INJECTION SYSTEM (DUBUQUE SERIAL NO. 121500- ) (WELLAND SERIAL NO. 85200- ) [01E09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48599	1	NUT	-
2	R132874	1	Washer	(SUB FOR R48600)
3	26H10	1	Shaft Key	5/32" X 5/8"
4	AR50619	1	Fuel Pump	WELLAND SERIAL NO. ( -XXXXXX) (ROOSA-MASTER NO. JDB633AL-2415) (SUB AR51568)
4	AR51568	1	FUEL INJECTION PUMP	(ROOSA-MASTER NOS. JDB635AL-2446 AND JDB635MD2803)
4	SE500625	1	Fuel Injection Pump Reman	(REMANUFACTURED FOR AR51568)
5	T13201	1	ELBOW FITTING	-
6	AR68962	1	FUEL LINE	NO. 1, (SUB FOR AR49909)
7	-	2	Part 9	(MAKE FROM R68281, 1 524 MM(5FT.) HOSE) (SUB FOR AT32064)
8	AT27622	6	CAP	-
9	-	5	Part 11	(MAKE FROM R68281, 1 524 MM (5FT.) HOSE) (SUB FOR AT32064)
10	AR89564	6	INJECTION NOZZLE	(SUB FOR AR56290, AR73673 AND AR88239)
10	SE501099	1	NOZZLE	(SINGLE PACK) (REMANUFACTURED)
10	SE500823	1	NOZZLE	(CONTAINS (6) REMANUFACTURED NOZZLES)
10	AR49877	6	INJECTION NOZZLE	WELLAND SERIAL NO. ( -XXXXX) (SUB AR89564)
11	AR49910	1	FUEL LINE	NO. 2
12	AR49911	1	FUEL LINE	NO.3
13	AR49915	1	Fuel Line	-
14	R34760	1	CLAMP	-
15	R34761	6	SPACER	(K) (SUB RE32011)
16	24H1685	6	Washer	WELLAND SERIAL NO. ( -XXXXXX) 11/32" X 3/4" X 0.075"
16	24H1685	6	Washer	(A) WELLAND SERIAL NO. (XXXXXX-XXXXXX) 11/32" X 3/4" X 0.075"
17	R60746	6	WASHER	(USE WITH AR73673 AND AR88239)
17	R34764	6	WASHER	(K) (USE WITH AR56290 AND AR89564) (SUB RE32011)
18	T32252	6	WASHER	WELLAND SERIAL NO. ( -XXXXXX)
18	T32252	6	WASHER	(A) WELLAND SERIAL NO. (XXXXXX-XXXXXX)
19	R48000	6	Seal	-
20	AR49914	1	FUEL LINE	NO.6
21	AR49913	1	FUEL LINE	NO.5
22	21H1317	6	SCREW	0.190" X 5/8", (USE WITH T23460 AND T23461)
22	AR76704	6	SCREW	-
23	T23461	3	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
23	R59297	3	Half Clamp	-
23	R61145	3	Strap	-
24	R59297	3	Half Clamp	-
24	R59298	3	Strap	-
24	T23460	3	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
25	12H246	6	LOCK WASHER	0.190", (USE WITH T23460 AND T23461)
26	AR63136	1	FUEL LINE	(SUB FOR AR49912) NO.4
27	T20055	12	WASHER	-
28	R26726	6	HOLLOW SCREW	-
29	14H812	2	NUT	3/8"
30	12H304	2	Lock Washer	3/8"
31	24M7096	2	Washer	0.413" X 0.709" X 0.063"
32	T20052	2	STUD	-
33	R84663	1	GEAR	(SUB FOR T20165)
34	TY22462	2	Clamp	(SUB FOR AR48236)

FUEL INJECTION SYSTEM (DUBUQUE SERIAL NO. 121500- ) (WELLAND SERIAL NO. 85200- ) [01E09]
