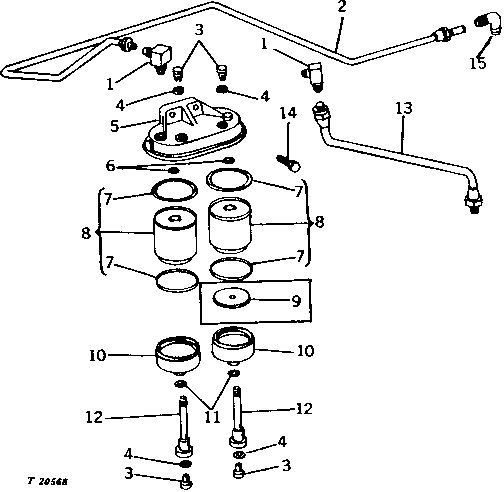

FUEL FILTER ASSEMBLY (SERIAL NO. -160680) [01D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30738	2	ELBOW FITTING	(SUB FOR AR26674, THIS APPLICATION)
2	AT23064	1	FUEL LINE	WELLAND SERIAL NO. ( -85199)
2	AR49908	1	FUEL LINE	WELLAND SERIAL NO. ( -85199) (USE WHEN AR69825 OR AR69827 REPLACEMENT PUMP HAS BEEN INSTALLED)
2	AR49908	1	FUEL LINE	WELLAND SERIAL NO. (85200- )
3	R34446	4	DRAIN PLUG	-
4	R26287	4	O-Ring	-
5	AT21469	1	COVER	-
6	R459R	2	O-Ring	(SUB R64374 FOR UPPER LOCATION AND R64373 FOR LOWER LOCATION)
7	R64374	2	WASHER	LOWER, (SUB FOR R64373)
7	R64374	2	WASHER	UPPER
7	T19114	4	GASKET	(SUB R64374) (FOR UPPER LOCATION AND R64373 FOR LOWER LOCATION)
8	AT17387	2	FILTER ELEMENT	-
9	T19120	2	SCREEN	WELLAND SERIAL NO. ( -XXXXXX) (NO LONGER AVAILABLE)
10	T19119	2	SEDIMENT BOWL	-
11	T19117	2	WASHER	-
12	T32365	2	SCREW	(SUB FOR AT17388)
13	AT18296	1	FUEL LINE	-
14	19H3239	2	Cap Screw	3/8" X 1-1/4"
15	R48008	1	ELBOW FITTING	WELLAND SERIAL NO. ( -85199) (USE WHEN AR69825 OR AR69827 REPLACEMENT PUMP HAS BEEN INSTALLED)
15	R48008	1	ELBOW FITTING	WELLAND SERIAL NO. (85200- )

FUEL FILTER ASSEMBLY (SERIAL NO. -160680) [01D19]

Нет текстового описания
