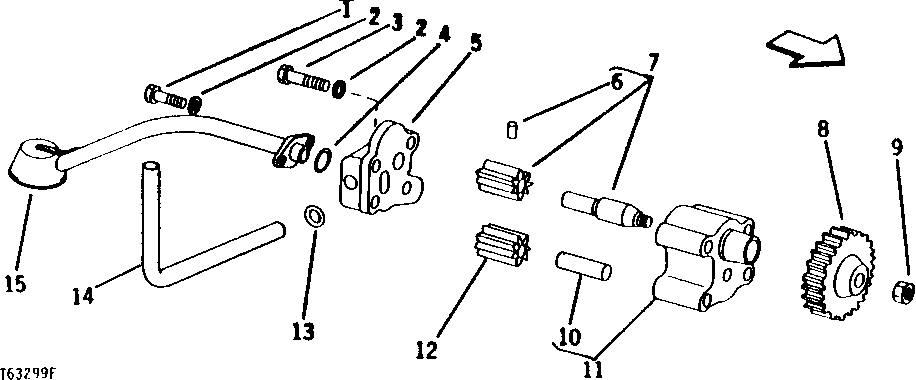

ENGINE OIL PUMP (SERIAL NO. 165890- ) [01B23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59409	1	Screw	(A) (C)
2	12H304	4	Lock Washer	(C) 3/8"
3	R57059	2	CAP SCREW	(C)
4	R61871	1	O-Ring	(A) (C) (SUB FOR A4730R, THIS APPLICATION)
5	R53382	1	COVER	(A) (C)
6	34H280	1	Spring Pin	3/16" X 7/8", (SUB FOR M3853T, THIS APPLICATION)
7	AT18126	1	DRIVE SHAFT	WELLAND SERIAL NO. ( -XXXXXX)
7	AR62978	1	PINION	(C) WELLAND SERIAL NO. (XXXXXX- )
8	T20298	1	Gear	(33 TEETH)
9	14H826	1	Nut	1/2"
10	T20091	1	DOWEL PIN	-
11	AT32606	1	HOUSING	WELLAND SERIAL NO. ( -XXXXXX) WITH IDLER SHAFT, (MARKED T20078) (SUB RE55343 AND R113752) (FOR UNITS BELOW ENGINE SERIAL NO. 214546 ALSO ORDER R83169 RELIEF VALVE, T27658 SPRING AND T27657 PLUG)
11	AR62979	1	HOUSING	WELLAND SERIAL NO. (XXXXXX- ) (MARKED R54615) (SUB RE35685)
12	T20097	1	GEAR	WELLAND SERIAL NO. ( -XXXXXX) (7 TEETH)
12	R54614	1	GEAR	(C) WELLAND SERIAL NO. (XXXXXX- ) (7 TEETH)
13	R74354	1	O-Ring	(A) (C) (SUB FOR R27166, THIS APPLICATION)
14	T20050	1	OIL TUBE	-
15	AR59621	1	OIL PUMP INTAKE	(A) (C)
..	AR67673	1	Kit	(SUB RE55346 AND R113752) KIT, OIL PUMP PICKUP
..	AR67077	1	OIL PUMP	(SUB RE55343 AND R113752)
