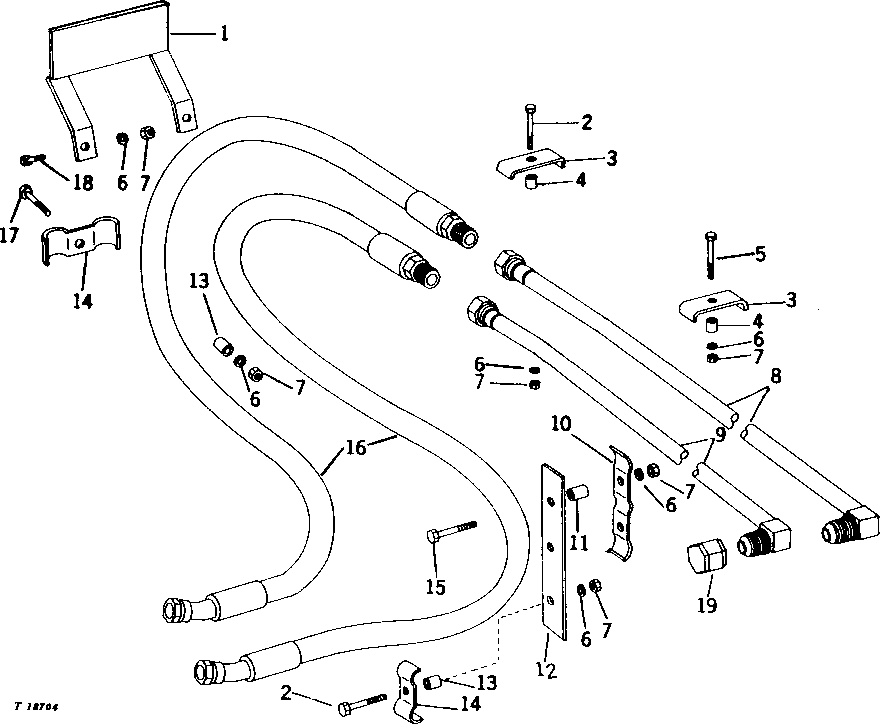

AUXILIARY CONTROL VALVE FRONT HYDRAULIC OIL LINES [02D11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(K) ( AT25840 NO LONGER AVAILABLE)
2	19H3065	3	Cap Screw	(K) 3/8" X 2"
3	T27022	3	Clamp	(K)
4	28H1909	3	SPACER	(K) 1/2" X 13/16"
5	19H1726	1	Cap Screw	(K) 3/8" X 2-1/4"
6	12H304	9	Lock Washer	(K) 3/8"
7	14H812	9	NUT	(K) 3/8"
8	AT25841	1	TUBE	WELLAND SER. NO. ( -XXXXXX)
8	AT28153	1	LINE	(K) WELLAND SER. NO. (XXXXXX- )
9	AT25842	1	TUBE	WELLAND SER. NO. ( -XXXXXX)
9	AT28153	1	LINE	(K) WELLAND SER. NO. (XXXXXX- )
10	T27021	1	CLAMP	(K)
11	28H1697	2	Spacer	(K) 3/8" X 3/4"
12	-	1	Part 14	(K) ( T27606 NO LONGER AVAILABLE)
13	28H1731	2	BUSHING	(K) 1/2" X 23/32"
14	T27607	2	CLAMP	(K)
15	19H1726	2	Cap Screw	(K) 3/8" X 2-1/4", (SUB FOR 19H1819, THIS APPLICATION)
16	AT25839	2	HYDRAULIC HOSE	3/4" X 2 816 MM (110-3/4") X 3/4", ( AT25839 NO LONGER AVAILABLE)
16	AT29937	2	HOSE	WELLAND SER. NO. (81834-XXXXX) (SUB AT35984)
16	AT35984	2	HYDRAULIC HOSE	(K) 1-1/16" X 3 003 MM (118-1/4") X 3/4", WELLAND SER. NO. (XXXXXX- )
17	19H1765	1	Cap Screw	(K) 3/8" X 1-3/4"
18	19H2676	2	Cap Screw	(K) 3/8" X 1"
19	T29439	2	Fitting	(K) (WITH LOG FORK REMOVED)

AUXILIARY CONTROL VALVE FRONT HYDRAULIC OIL LINES [02D11]
