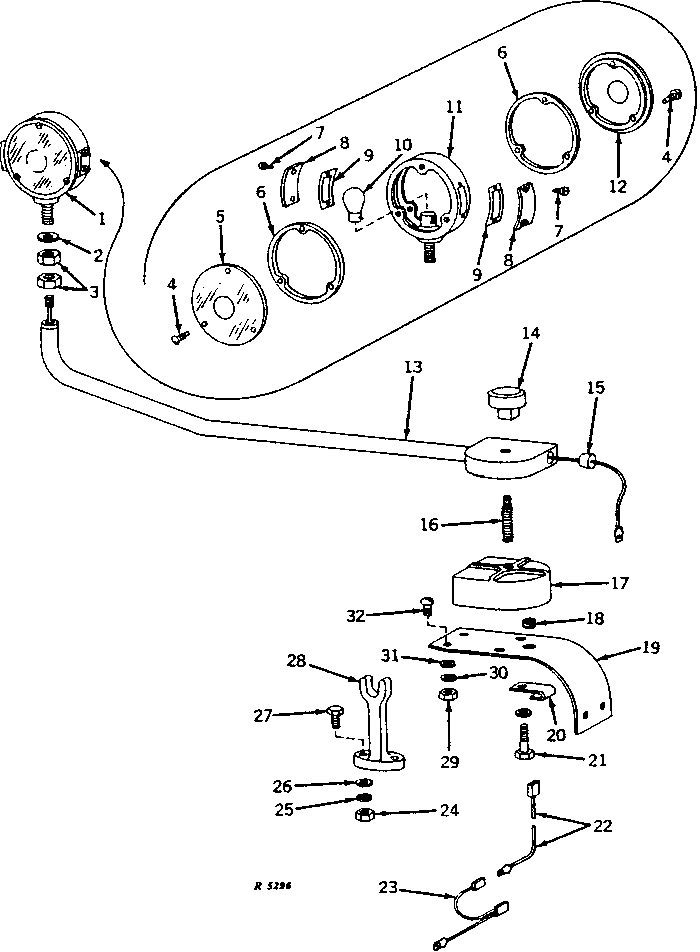

WARNING LAMP (SERIAL NO. 50000-83999) [02E05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR26584	1	LAMP	WITH LEAD, WASHER, AND NUTS
2	24H1625	1	Washer	17/32" X 1" X 0.120"
3	14H849	2	Nut	7/16"
4	21H964	6	SCREW	0.138" X 1/2"
5	A5275R	1	LENS	-
6	A5277R	2	GASKET	-
7	37H46	4	SCREW	NO. 6 X 3/8", (SUB FOR R20786)
8	A5278R	2	LENS	-
9	A5279R	2	GASKET	-
10	AA6218R	1	Bulb	21 C.P., 12-14 VOLT, S.C.
11	-	1	Part 11	(SUB AR26584)
12	A5275R	1	LENS	-
13	AT12308	1	MAST	(NO LONGER AVAILABLE)
14	R27580	1	KNOB	-
15	T13215	1	GROMMET	(NO LONGER AVAILABLE)
16	R699R	1	STUD	-
17	T13206	1	SUPPORT	(NO LONGER AVAILABLE)
18	R1134R	1	Eyelet	-
19	T14251	1	REINFORCEMENT	(NO LONGER AVAILABLE)
20	B1986R	1	CLIP	-
21	19H1226	2	SCREW	3/8" X 1-1/4"
21	12H304	2	Lock Washer	3/8"
22	-	1	Part 23	533 MM (21") (MAKE FROM R32007, R32024, R32025 AND (2) R32027 IN AR84006 WIRE REPAIR KIT) (SUB FOR AR27575)
23	AR30093	1	WIRING HARNESS	-
24	14H785	2	Nut	5/16"
25	12H303	2	Lock Washer	5/16"
26	24H1136	2	Washer	11/32" X 11/16" X 0.065"
27	19H1900	2	Cap Screw	5/16" X 3/4"
28	T14250	1	SUPPORT	(NO LONGER AVAILABLE)
29	14H786	4	Nut	1/4"
30	12H302	4	Lock Washer	1/4"
31	24H1287	2	Washer	9/32" X 5/8" X 0.065"
32	21H1023	4	SCREW	1/4" X 5/8"
..	AT12307	1	LAMP	-
