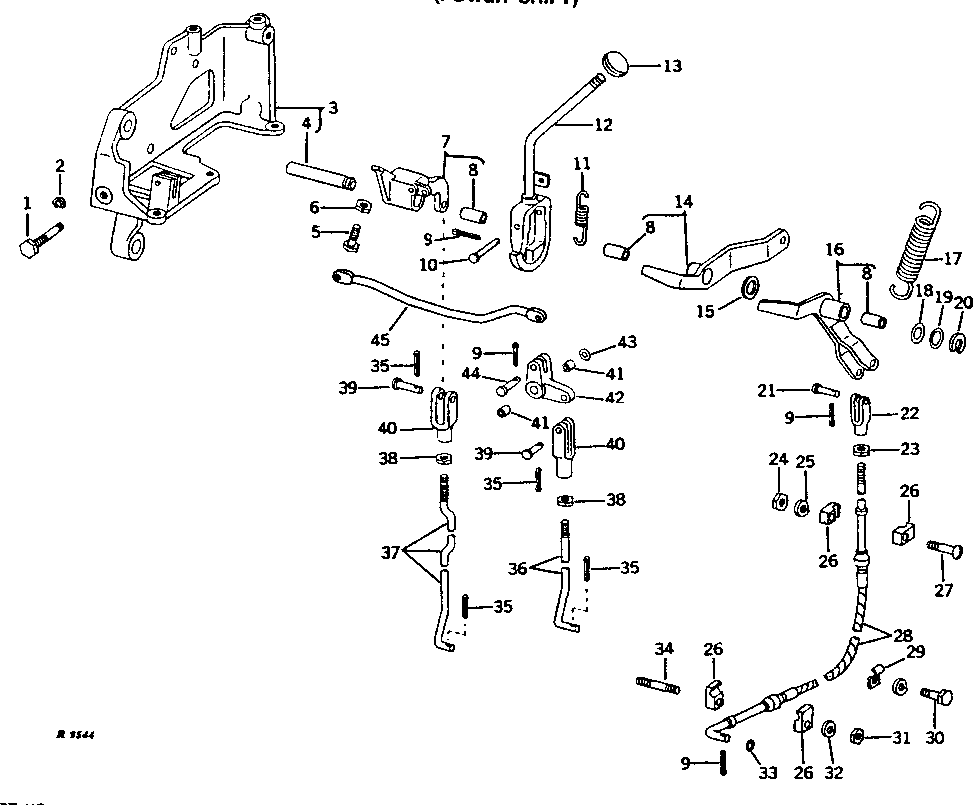

TRANSMISSION SHIFTER CONTROL (POWER SHIFT) [01G23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34346	1	SCREW	-
2	F3396R	1	Snap Ring	-
3	F2030R	1	BUSHING	-
3	-	1	Part 3	R.H., W/SHAFT ( AR32315 NO LONGER AVAILABLE) (MARKED R33596)
4	R33601	1	PIN FASTENER	-
5	19H1905	1	Cap Screw	5/16" X 1"
6	14H611	1	Nut	5/16"
7	AR32812	1	PIVOT	WITH BUSHING, (MARKED R33269)
8	R653R	3	BUSHING	-
9	11H233	4	COTTER PIN	3/32" X 1/2"
10	R29340	1	Pin Fastener	-
11	R33278	1	Spring	-
12	-	1	Part 13	(SUB FOR AR34357) ( AR42291 NO LONGER AVAILABLE)
13	F2861R	1	KNOB	-
14	AR40917	1	ARM	INNER, WITH BUSHING, (SUB FOR AR34312)
15	24H1375	1	Washer	11/16" X 1-1/8" X 0.060"
16	AR34313	1	ARM	OUTER, WITH BUSHING
17	R33279	1	Spring	-
18	24H1366	1	Washer	21/32" X 1-1/8" X 0.036"
19	24H1658	1	Washer	21/32" X 1" X 0.060"
20	A4883R	1	Snap Ring	-
21	R662R	1	PIN FASTENER	-
22	M3742T	1	Yoke	-
23	14H649	1	Nut	1/4"
24	14H785	1	Nut	5/16"
25	12H303	1	Lock Washer	5/16"
26	T19036	4	CLAMP	-
27	03H1762	1	BOLT	5/16" X 1-1/2"
28	R33318	1	PUSH PULL CABLE	(SUB AR39677)
28	AR39677	1	PUSH PULL CABLE	-
28	R39725	2	SEAL	-
28	R39726	1	SEAL	BOTTOM END
28	R39727	1	SEAL	TOP END
29	R27747	1	CLAMP	-
30	19H1227	1	Cap Screw	1/4" X 1/2"
30	12H302	1	Lock Washer	1/4"
31	14H812	1	NUT	3/8"
32	12H304	1	Lock Washer	3/8"
33	B1664R	1	SHIM	-
34	R27612	1	STUD	(GASOLINE)
35	11H206	4	Cotter Pin	3/32" X 3/4"
36	R33316	1	ROD	REVERSE VALVE OPERATING
37	R33315	1	ROD	CONTROL VALVE OPERATING
38	14H774	2	Nut	3/8"
39	C1067R	2	PIN FASTENER	-
40	M80373	2	Yoke	(SUB FOR L324T)
41	R36318	2	WASHER	-
42	AR32815	1	LEVER	(MARKED R33270) WITH BUSHINGS
43	24H1302	1	Washer	13/32" X 11/16" X 0.035"
44	T16193	1	Pin	(SUB FOR R33301)
45	-	1	Part 51	( R33310 NO LONGER AVAILABLE)
