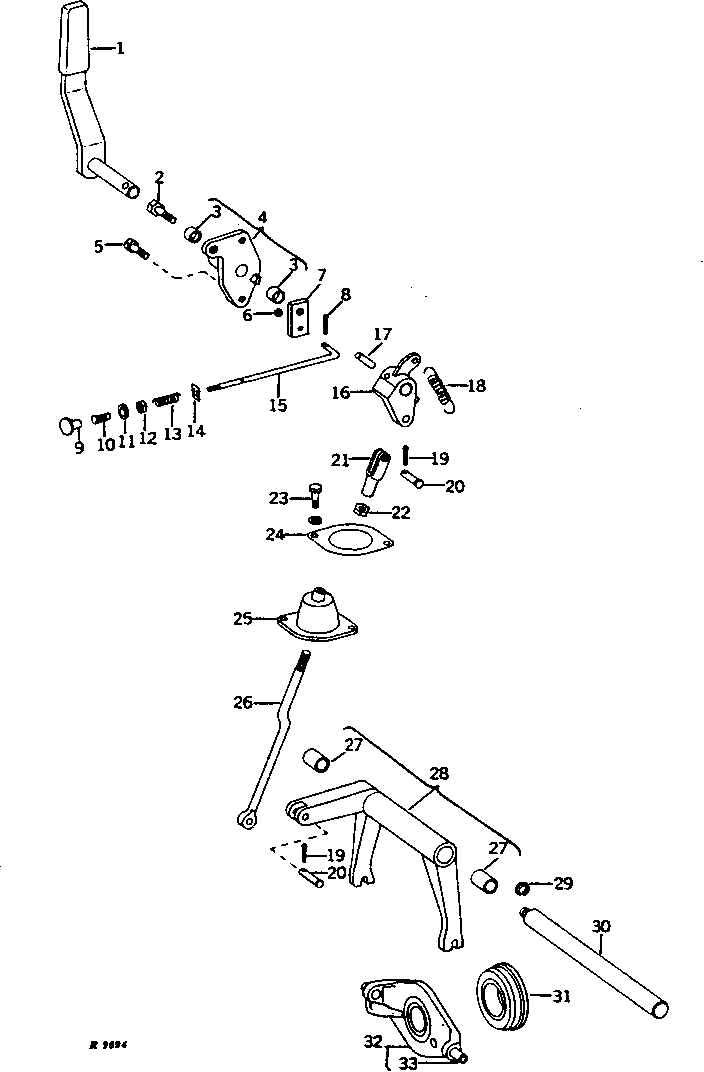

TRANSMISSION DISCONNECT CLUTCH CONTROL (POWER SHIFT) [01F11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR34985	1	LEVER	WITH PIN
1	AR32131	1	LEVER	WITH PIN, (SUB AR34985)
2	19H1815	1	Cap Screw	1/2" X 1-1/4"
3	R27116	2	BUSHING	-
4	AR32130	1	SUPPORT	WITH BUSHING, (MARKED R33149)
5	19H2021	2	Cap Screw	3/8" X 5/8"
6	24H1283	1	Washer	7/32" X 1/2" X 0.049"
7	-	1	Part 8	( R33892 NO LONGER AVAILABLE)
8	11H230	1	COTTER PIN	1/16" X 3/8"
9	-	1	Part 10	( R34455 NO LONGER AVAILABLE)
10	R34454	1	SLEEVE	-
11	12H310	1	Lock Washer	3/8"
12	14H774	1	Nut	3/8"
13	A4580R	1	Spring	-
14	R27888	1	NUT	-
15	R34453	1	HOOK BOLT	-
16	-	1	Part 17	( R33153 NO LONGER AVAILABLE)
17	34H351	1	Spring Pin	3/8" X 1-1/2"
18	R42783	1	EXTENSION SPRING	(SUB FOR R36137)
19	11H234	2	Cotter Pin	3/32" X 1"
20	L364T	2	PIN	-
21	L300T	1	YOKE	-
22	14H469	1	NUT	7/16"
23	19H2127	2	Cap Screw	5/16" X 7/8"
23	12H303	2	Lock Washer	5/16"
24	R33963	1	STRAP	-
25	R33962	1	BOOT	-
26	R33154	1	ROD	-
27	R27320	2	BUSHING	-
28	AR32140	1	FORK	WITH BUSHING, (MARKED R33195)
29	B169R	2	SNAP RING	-
30	R33194	1	SHAFT	-
31	AM3983T	1	THRUST BEARING	-
32	AR32141	1	CRADLE	WITH PINS
33	R35075	2	QUICK LOCK PIN	-
