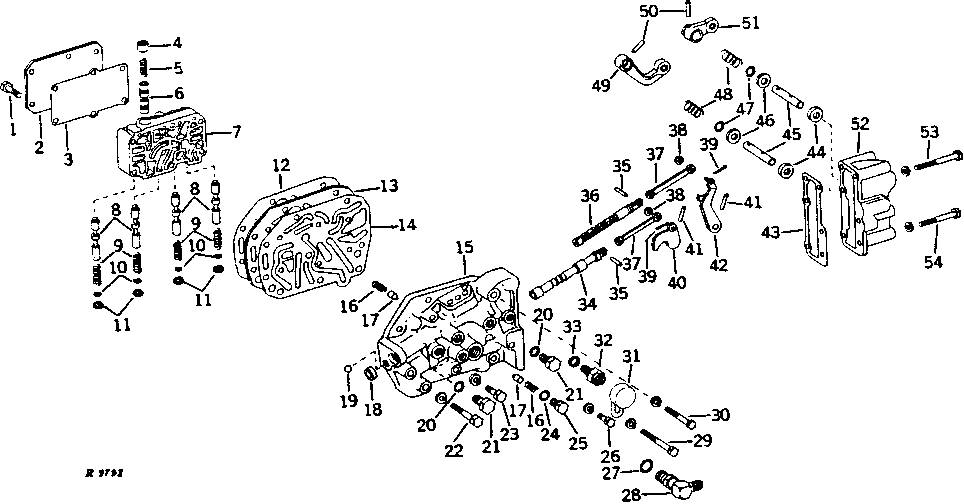

TRANSMISSION CONTROL VALVE AND SHIFT VALVE (POWER SHIFT) [01G21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1949	6	Cap Screw	5/16" X 2-1/2"
2	R33307	1	COVER	-
3	R33276	1	GASKET	-
4	R34175	1	BOLT	-
5	R33284	1	SPRING	-
6	R33306	1	PRESSURE RELIEF VALVE	-
7	R33077	1	HOUSING	-
8	R33293	4	VALVE	-
9	R33280	4	SPRING	-
10	R33294	4	WASHER	-
11	R33282	4	Snap Ring	-
12	R33273	1	GASKET	-
13	R33304	1	PLATE	-
14	R33274	1	GASKET	-
15	AR33890	1	HOUSING	(MARKED R33076)
16	R33277	4	SPRING	-
17	R42697	4	DETENT	(SUB FOR R33305)
18	A3910R	1	PLUG	-
19	D2361R	1	Ball	-
20	R26286	2	O-Ring	-
21	R27094	2	Drain Plug	-
22	19H2128	2	CAP SCREW	3/8" X 3"
22	12H304	2	Lock Washer	3/8"
23	19H1732	2	Cap Screw	3/8" X 1-1/4"
23	12H304	2	Lock Washer	3/8"
24	R26448	2	O-Ring	-
25	R27218	2	Fitting Plug	-
26	19H1765	2	Cap Screw	3/8" X 1-3/4"
26	12H304	2	Lock Washer	3/8"
27	R26906	1	O-Ring	-
28	AR35712	1	ELBOW FITTING	-
29	12H304	1	Lock Washer	3/8"
29	19H2228	1	Cap Screw	3/8" X 4"
30	19H2023	1	CAP SCREW	3/8" X 3-1/4"
30	12H304	1	Lock Washer	3/8"
31	-	1	Part 36	-
32	R36265	1	SWITCH	-
33	T16911	1	SHIM	-
34	R33291	1	VALVE	-
35	34H309	2	Spring Pin	1/4" X 5/8"
36	R33292	1	VALVE	-
37	R33290	2	LINK	-
38	24H1287	2	Washer	9/32" X 5/8" X 0.065"
39	11H231	2	COTTER PIN	1/16" X 1"
40	AR53841	1	ARM	WITH BEARING
41	34H282	2	Spring Pin	3/16" X 1"
42	AR53840	1	ARM	WITH BEARING
43	R33275	1	GASKET	-
44	R33587	2	SEAL	-
45	R49819	2	PIN	-
46	R36364	2	WASHER	-
47	24H1359	2	Washer	5/8" X 7/8" X 0.060"
48	F3221R	2	SPRING	-
49	R49816	1	LEVER	-
50	34H299	2	Spring Pin	7/32" X 1-1/4"
51	R49817	1	LEVER	-
52	-	1	Part 57	(WHEN AR45255 IS NO LONGER AVAILABLE SUB R33268, R26287 AND R27216)
52	R33268	1	COVER	-
52	R26287	1	O-Ring	(NOT ILLUSTRATED)
52	R27216	1	DRAIN PLUG	(NOT ILLUSTRATED)
53	19H1854	1	Cap Screw	3/8" X 3-3/4"
53	12H304	1	Lock Washer	3/8"
54	19H2023	5	CAP SCREW	3/8" X 3-1/4"
54	12H304	5	Lock Washer	3/8"

TRANSMISSION CONTROL VALVE AND SHIFT VALVE (POWER SHIFT) [01G21]
