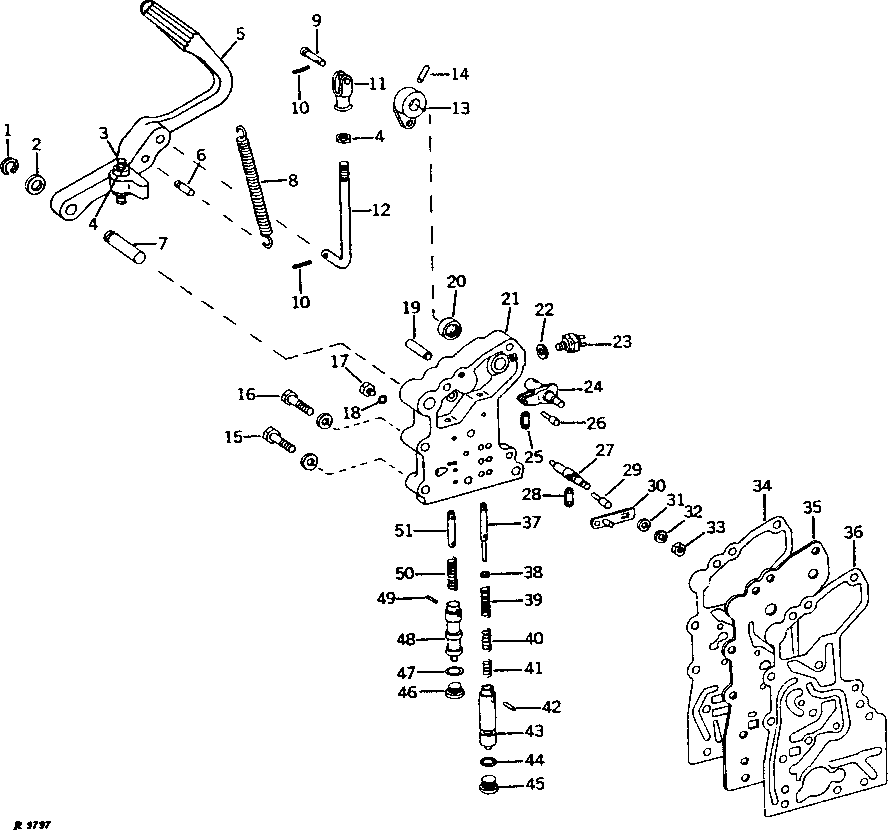

TRANSMISSION CLUTCH VALVE (POWER SHIFT) [01F17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R73380	1	Snap Ring	(SUB FOR A369R)
2	24H1395	1	Washer	25/32" X 1-7/16" X 0.060"
3	22H799	1	SET SCREW	3/8" X 1-3/4"
4	14H732	2	Nut	3/8"
5	-	1	Part 5	( R33201 NO LONGER AVAILABLE)
6	F3014R	1	PIN FASTENER	( F3014R NO LONGER AVAILABLE)
7	R33156	1	PIN FASTENER	-
8	R42855	1	SPRING	(SUB FOR R33907) (NOT EXACTLY AS ILLUSTRATED)
9	C1067R	1	PIN FASTENER	-
10	11H206	2	Cotter Pin	3/32" X 3/4"
11	C284R	1	Yoke	-
12	-	1	Part 12	( R33202 NO LONGER AVAILABLE)
13	-	1	Part 13	( R33199 NO LONGER AVAILABLE)
14	34H188	1	Spring Pin	5/16" X 1-3/4"
15	12H293	7	Lock Washer	7/16"
15	19H2055	5	CAP SCREW	7/16" X 2-1/4"
16	19H2227	2	CAP SCREW	7/16" X 2-1/2"
17	R27094	3	Drain Plug	-
18	R26286	2	O-Ring	-
19	B3595R	2	DOWEL PIN	-
20	AF2907R	1	Seal	-
21	AR45381	1	HOUSING	(MARKED R33155, R33161, R41153 OR R41168) (TRACTORS LESS PTO ALSO FURNISH ONE R26287 O-RING, ONE R26375 O-RING, ONE R26686 SPRING, ONE R27216 PLUG, ONE R33138 PLUG, AND ONE R33162 VALVE) (SUB FOR AR33458 AND AR40794)
22	T16911	1	SHIM	-
23	R36265	1	SWITCH	-
24	AR32128	1	SHAFT	WITH ARMS
25	R28401	1	LINK	-
26	R33145	1	PIN	-
27	AR61609	1	SHAFT	(A) (SUB FOR AR27720) (ALSO ORDER AR48689 ARM) (SUB AR98146 AND (2) R28359, THIS APPLICATION)
27	AR98146	1	SHAFT	(A)
28	R28401	1	LINK	(A)
29	R33145	2	PIN	(A)
30	AR27722	1	ARM	(A) WITH PIN
31	24H1287	1	Washer	(A) 9/32" X 5/8" X 0.065"
32	12H302	1	Lock Washer	(A) 1/4"
33	14H786	1	Nut	1/4"
34	R33178	1	GASKET	-
35	R33164	1	PLATE	-
36	R33177	1	GASKET	-
37	R33137	1	SHAFT	-
38	R33521	1	Shim	-
39	R33173	1	Spring	-
40	R33174	1	SPRING	-
41	R33175	1	SPRING	-
42	34H245	1	Spring Pin	1/8" X 5/8"
43	R33136	1	VALVE	-
44	R26448	1	O-Ring	(SUB FOR R26375)
45	R33138	1	Fitting	-
46	R33138	1	Fitting	(A)
47	R26375	1	O-Ring	(A)
48	R41502	1	VALVE	(A) WITH R41503 AND 34H260, (SUB FOR R31589)
49	34H245	1	Spring Pin	1/8" X 5/8"
49	34H260	1	SPRING PIN	5/32" X 5/8"
50	R31725	1	SPRING	(A)
51	R41503	1	SHAFT	(A) WITH R41502 AND 24H260, (SUB FOR R28399)

TRANSMISSION CLUTCH VALVE (POWER SHIFT) [01F17]
