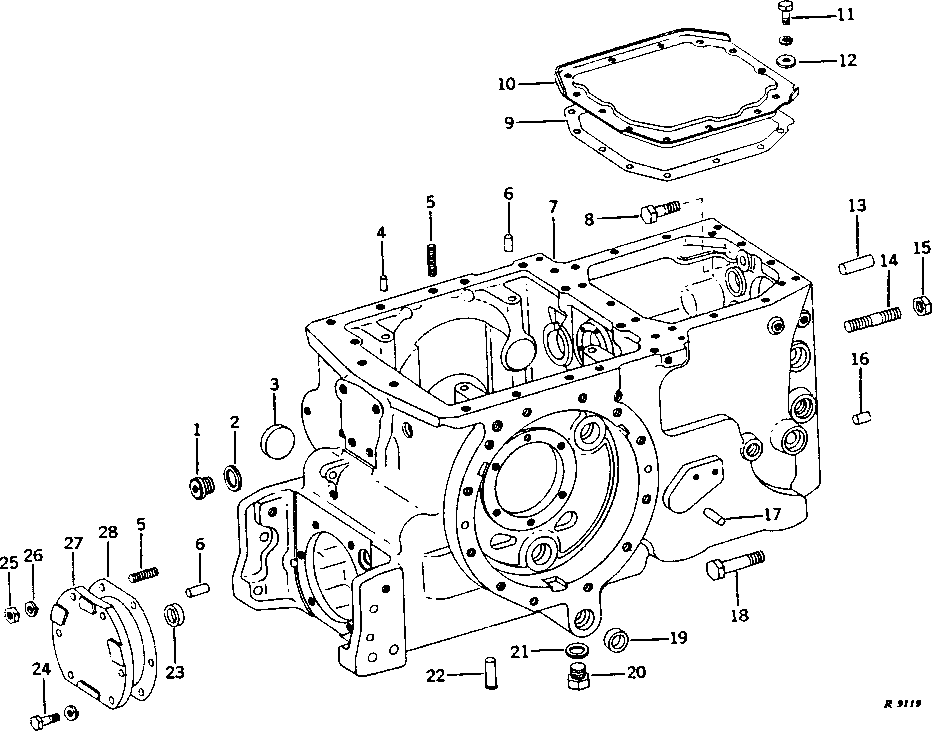

TRANSMISSION CASE AND COVER (COLLAR SHIFT) [01F20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27483	1	FITTING PLUG	-
2	H851R	1	WASHER	-
3	R34456	1	Plug	(TRACTORS EQUIPPED WITH 100 RPM PTO ONLY OR TRACTORS LESS PTO)
4	R1612R	4	Dowel Pin	-
5	R32101	4	STUD	-
6	R48685	4	Dowel Pin	(SUB FOR A120R)
7	AR34024	1	TRANSMISSION CASE	WITH STUDS, PINS AND BUSHING, (MARKED R33130) (SUB AR39788, AR39793, AR39794 AND AR34766)
7	AR39788	1	TRANSMISSION CASE	WITH STUDS, PINS AND BUSHINGS, (MARKED R39820)
8	19H1734	2	Cap Screw	5/8" X 2"
9	R33714	1	GASKET	-
10	R33713	1	COVER	-
11	19H1800	2	Cap Screw	3/8" X 1-1/2"
11	19H1731	11	Cap Screw	3/8" X 1"
11	12H304	13	Lock Washer	3/8"
12	A4624R	11	Washer	-
13	A776R	2	Pin	-
14	R1548R	3	Stud	-
15	14H794	3	Nut	3/4"
16	R27315	2	Dowel Pin	-
17	C1220R	4	DOWEL PIN	-
18	19H2600	5	Cap Screw	3/4" X 2-5/8"
18	19H2663	2	CAP SCREW	3/4" X 2-1/8"
19	R27018	2	BUSHING	-
20	F3128R	1	DRAIN PLUG	-
21	A4827R	1	Washer	-
22	R31075	1	PIN FASTENER	-
23	R33498	1	PLUG	(TRACTORS EQUIPPED WITH 1000 RPM PTO ONLY OR TRACTORS LESS PTO)
24	12H301	4	Lock Washer	1/2"
24	19H1741	4	CAP SCREW	1/2" X 1-1/8"
25	14H809	2	Nut	1/2"
26	12H301	2	Lock Washer	1/2"
27	R33489	1	COVER	(TRACTORS LESS PTO)
28	R33337	1	GASKET	-
..	R27218	1	Fitting Plug	(TRACTORS LESS DIFFERENTIAL LOCK)
..	T16911	1	SHIM	(TRACTORS LESS DIFFERENTIAL LOCK)
..	R27094	1	Drain Plug	(TRACTORS LESS DIFFERENTIAL LOCK)
..	R26286	1	O-Ring	(TRACTORS LESS DIFFERENTIAL LOCK)

TRANSMISSION CASE AND COVER (COLLAR SHIFT) [01F20]

Нет текстового описания
