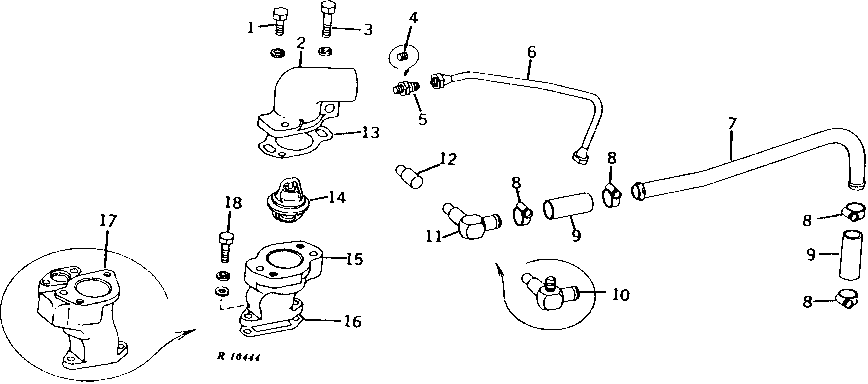

THERMOSTAT HOUSING, THERMOSTAT AND WATER BYPASS PIPE (ENGINE SERIAL NO. -112014) [01D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1765	1	Cap Screw	(A) 3/8" X 1-3/4"
1	19H1731	1	Cap Screw	(A) 3/8" X 1"
1	12H304	1	Lock Washer	3/8"
1	19H1800	1	Cap Screw	(B) 3/8" X 1-1/2"
1	19H1732	1	Cap Screw	(B) 3/8" X 1-1/4"
2	R27521	1	COVER	(SUB AR45483)
2	AR34873	1	COVER	(MARKED R34988, R34989, R34998, R44233 OR R44234) (SUB FOR AR27521 OR R34244) (SUB AR45483)
3	19H1800	1	Cap Screw	3/8" X 1-1/2"
3	19H1732	1	Cap Screw	(A) 3/8" X 1-1/4"
3	19H1800	1	Cap Screw	(B) 3/8" X 1-1/2"
3	12H304	1	Lock Washer	3/8"
4	15H559	1	Pipe Plug	1/4"
5	R26892	1	Fitting	(A)
6	AR26623	1	LINE	(A)
7	R39504	1	LINE	-
8	AR21839	4	Clamp	-
9	-	2	Part 17	(MAKE FROM R57300) (SUB FOR R26905)
10	-	1	Part 18	(B) 90°, (AR34875 NO LONGER AVAILABLE)
11	AR34874	1	FITTING	(A) 90°
12	R34993	1	TERMINAL NIPPLE	-
13	R42694	1	GASKET	(SUB FOR R26474)
14	R34577	1	THERMOSTAT	RANGE 71°-83° C. (160°-182° F.) (SUB R36846)
14	R36847	1	THERMOSTAT	RANGE 71°-83° C. (160°-182° F.)
14	R34578	1	THERMOSTAT	RANGE 82°-99° C. (180°-202° F.) (SUB R36846)
15	R36814	1	HOUSING	(A) (SUB FOR R26470 OR AR39598) (SUB AR44840)
15	AR44840	1	HOUSING	(MARKED R39690, R41853 OR R42644) (SUB FOR AR36814, R26470 OR AR39598)
16	R42693	1	GASKET	(SUB FOR R26473)
17	R26469	1	HOUSING	(B) FRONT
18	19H1731	2	Cap Screw	3/8" X 1"
18	19H1731	2	Cap Screw	(B) 3/8" X 1"
18	19H1732	2	Cap Screw	(A) 3/8" X 1-1/4"
18	24H1303	2	WASHER	(A) 13/32" X 11/16" X 0.065"
18	12H304	2	Lock Washer	3/8"

THERMOSTAT HOUSING, THERMOSTAT AND WATER BYPASS PIPE (ENGINE SERIAL NO. -112014) [01D03]
