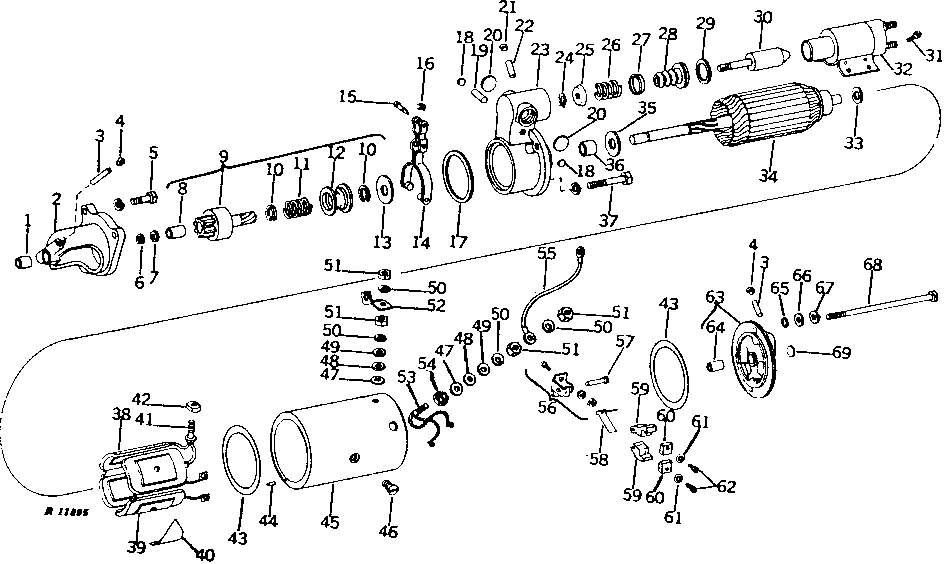

STARTER (24-VOLT) (DIESEL) (SERIAL NO. 079869- ) [02D06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11743	1	BUSHING	-
2	AR11127	1	HOUSING	-
3	R40337	2	WICK	-
4	15H566	2	PIPE PLUG	1/8", (SUB FOR R11085)
5	19H2552	3	CAP SCREW	3/8" X 1-1/8"
5	12H304	3	Lock Washer	3/8"
6	R11117	1	SNAP RING	-
7	R48976	1	STOP	(SUB FOR R11116)
8	R11119	1	BUSHING	-
9	AR88880	1	STARTER MOTOR DRIVE	(SUB FOR AR84239 OR AR11133)
10	R11118	2	WIRE	-
11	R11226	1	SPRING	-
12	-	1	Part 13	(SUB AR88880) ( AR11225 NO LONGER AVAILABLE)
13	R11095	1	WASHER	-
14	AR11128	1	LEVER	-
15	R11222	1	PIN	-
16	R11223	1	RETAINER	-
17	-	1	Part 18	(SUB AR100161)
18	30H7	2	Plug	5/8"
19	R11215	1	DOWEL PIN	-
20	30H16	2	PLUG	1-3/16"
21	R11016	1	PIPE PLUG	-
22	R11201	1	WICK	-
23	AR11126	1	HOUSING	-
24	R11026	1	Snap Ring	-
25	R11129	1	ROUND RETAINER	-
26	R11128	1	SPRING	-
27	R11126	1	ROUND RETAINER	-
28	R11127	1	BOOT	-
29	R11221	1	WASHER	-
30	AR11132	1	PLUNGER	-
31	T19909	4	SCREW	(SUB FOR 1916529)
32	-	1	Part 33	(SUB AR40395)
33	-	1	Part 34	-
34	AR11120	1	ARMATURE	-
35	R11214	1	WASHER	-
36	R11212	1	BUSHING	-
37	12H303	4	Lock Washer	5/16"
37	19H1949	4	Cap Screw	5/16" X 2-1/2"
38	AR11122	1	ELECTRICAL COIL	-
39	1931784	4	SHOE	-
40	R11253	2	INSULATOR	-
41	R11207	1	STUD	-
42	R11058	1	BUSHING	-
43	-	2	Part 45	(SUB AR100161)
44	R11087	1	DOWEL PIN	-
45	-	1	Part 47	(SUB TY6622)
46	21H1280	4	SCREW	3/8" X 3/4", (SUB FOR T18353)
47	-	2	Part 49	(SUB AR100161)
48	R11000	2	WASHER	-
49	24H1303	2	WASHER	13/32" X 11/16" X 0.065"
50	12H304	4	Lock Washer	3/8"
51	14H1076	4	Nut	3/8"
52	R11228	1	ELECTRICAL CONNECTOR ASSY	-
53	AR11139	1	ELEC. CONNECTOR TERMINAL	-
54	R11058	1	BUSHING	-
55	-	1	Part 57	25.4MM (10") (SUB FOR R11229) (MAKE FROM RE11154)
56	AR11124	2	SUPPORT	-
57	R11233	2	PIN	-
58	R11209	2	SPRING	-
59	AR11123	4	CARBON BRUSH HOLDER	-
60	R11208	4	BRUSH	-
61	12H290	4	Washer	0.164", (SUB FOR R11211)
62	37H78	4	SCREW	0.164" X 3/4", (SUB FOR R11255) (ALSO ORDER 12H290)
63	AR11140	1	FRAME	-
64	R61932	1	BUSHING	(SUB FOR T11739)
65	R27976	2	O-Ring	-
66	24H1136	2	Washer	11/32" X 11/16" X 0.065"
67	12H303	2	Lock Washer	5/16"
68	T11655	2	BOLT	-
69	30H9	1	Plug	3/4"
..	AR40134	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY NO. 1113190)
..	TY6622	1	STARTER MOTOR	(REMANUFACTURED)

STARTER (24-VOLT) (DIESEL) (SERIAL NO. 079869- ) [02D06]

Нет текстового описания
