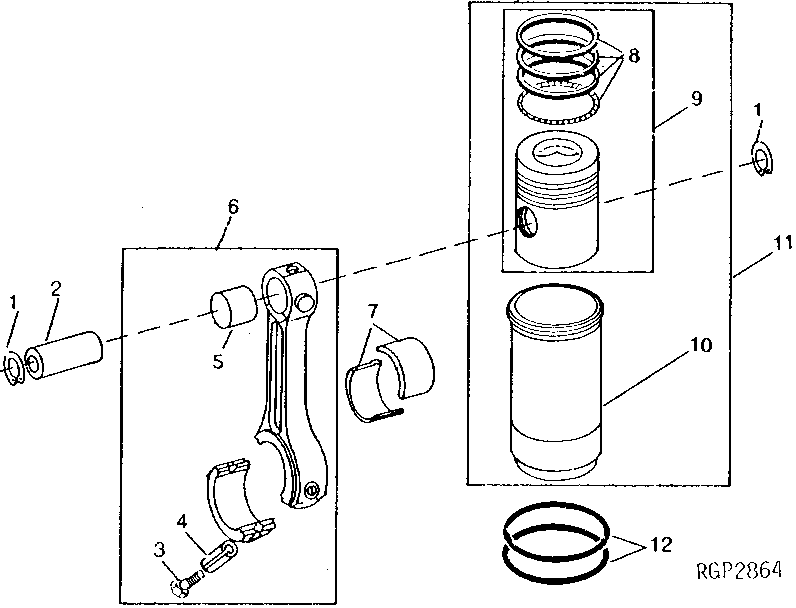

PISTONS, RINGS, LINERS AND CONNECTING RODS (DIESEL) [01B11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26093	8	SNAP RING	-
2	R44161	4	PISTON PIN	STANDARD, (SUB FOR R26092)
2	R44162	4	PISTON PIN	0.08MM (.003") OVERSIZE, (YELLOW) (SUB FOR R28972)
2	R44163	4	PISTON PIN	0.13MM (.005") OVERSIZE, (RED) (SUB FOR R28973)
3	R66452	8	Cap Screw	(SUB FOR R26325 OR R53290)
4	R53292	8	Sleeve	-
5	R30939	4	BUSHING	-
6	AR86981	4	CONNECTING ROD	(MARKED R26047, R53285 OR R58880 OR R66923) (SUB FOR AR26328, AR59419 OR AR70910)
7	AR45723	4	BEARING	STANDARD, (PKG. OF (2) R26087 OR R44378) (SUB FOR AR27628)
7	AR46395	4	BEARING	0.05MM (.002") UNDERSIZE, (PKG. OF (2) R28226 OR R44925) (SUB FOR AR27629)
7	AR46396	4	BEARING	0.25MM (.010") UNDERSIZE (PKG. OF (2) R44926)
7	AR46397	4	BEARING	0.51MM (.020") UNDERSIZE, (PKG. OF (2) R28228 OR R44927) (SUB FOR AR27640)
7	AR46398	4	BEARING	0.76MM (.030") UNDERSIZE, (PKG. OF (2) R28230 OR R44928) (SUB FOR AR27642)
8	AR27852	4	PISTON RING KIT	(USE WITH R26091)
8	AR55630	4	PISTON RING KIT	(3 RING) (USE WITH AR46265, RE23172 OR RE40566) (SUB FOR AR41563 AND AR54732)
8	AR40145	4	PISTON RING KIT	(4 RING) (USE WITH R32073) (SUB FOR AR33995)
8	AR39860	4	PISTON RING KIT	(USE WITH R39927)
9	AR46264	4	PISTON	(MARKED AR46265 OR R32073) (SUB FOR AR39768, AR40254) (USE WITH R32020, R40850, R40910, R46430 OR R46350) (SUB RE23170 OR RE23173) (JD500, JD500-A*)
9	AR63284	4	PISTON	(MARKED AR41564, AR48743 OR AR51799) (SUB FOR AR41562, AR48742 OR AR51800) (SUB RE23165) (JD500A&,JD500B,JD500C, AND JD510)
10	R32050	4	CYLINDER LINER	108MM (4-1/4") BORE, (USE WITH R26160) (SUB FOR AR32195) (SUB RE23173) (ALSO ORDER AR40155) (JD500, JD500-A*)
11	AR68650	4	KIT	(SUB RE23165) (MARKED AR51799) (JD500A&, JD500B, JD500C, AND JD510)
11	RE23173	4	KIT	(MARKED RE23172 OR RE40566) (USE WITH R32020 AND R40850) (SUB FOR AR49052)
11	RE23170	4	KIT	(MARKED RE23172 OR RE40566) (USE WITH R46350, R46430) (SUB FOR AR40615, R41562, AR68650, AR83122 AND AR84048) (ALSO ORDER AR70645)
11	RE23165	4	KIT	(SUB FOR AR68650 OR AR63268) (MARKED RE23168 OR RE40564) JD500A&, JD500B, JD500C, AND JD510
12	AR40155	4	O-RING KIT	(SET OF 2 CONSISTS OF R26121 AND R40214) (SUB FOR (2) R26121)
12	AR70645	4	O-RING KIT	(SET OF 2 CONSISTS OF R48767 AND R55453) (USE WITH R40910, R40920, R46350, R46430 OR R49540) (SUB FOR AR48687)

PISTONS, RINGS, LINERS AND CONNECTING RODS (DIESEL) [01B11]
