Открытый узел

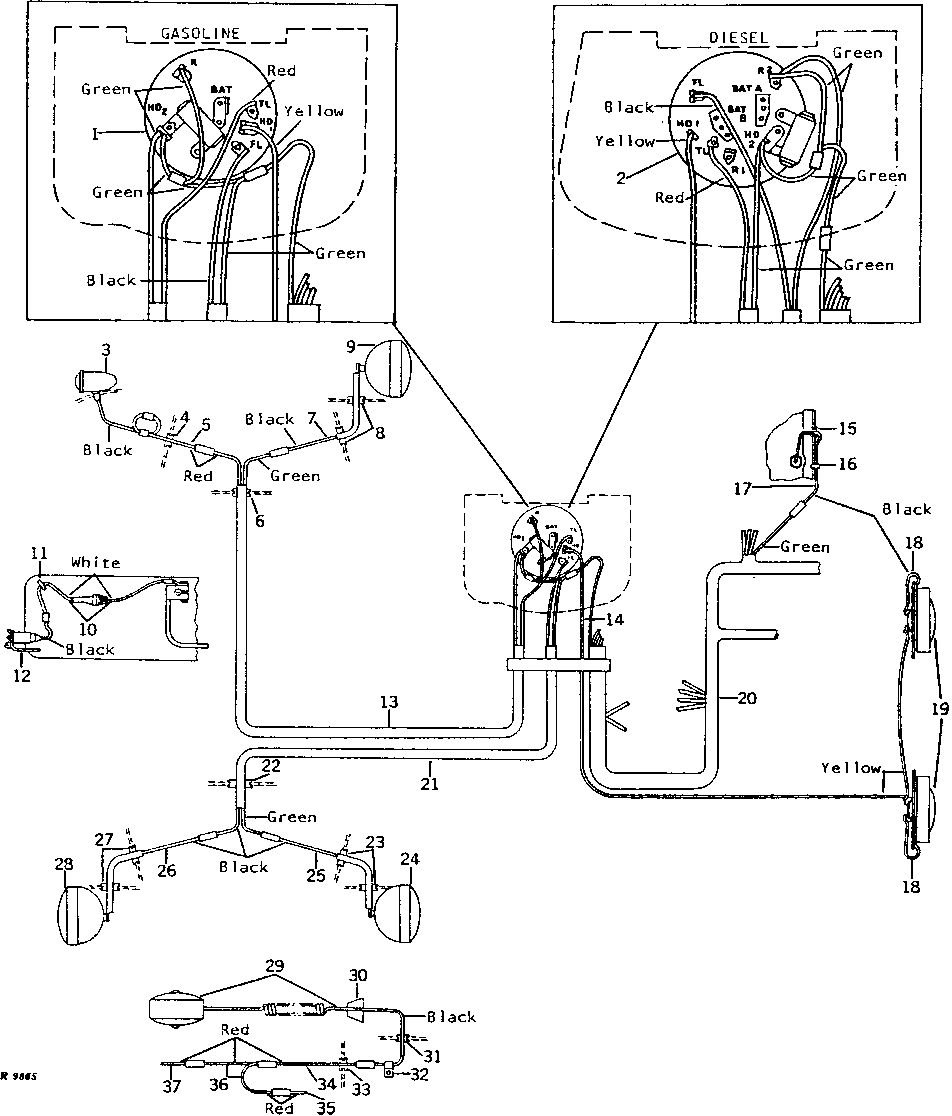

LAMP WIRING (SERIAL NO. -67999) [02D21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR28401	1	SWITCH	(GASOLINE)
2	AR28402	1	SWITCH	(DIESEL)
3	AT11883	1	LAMP	TAIL L.H.
4	R2579R	1	GROMMET	TRACTOR TAIL LAMP TO FENDER, (SUB FOR B1580R) (PACKED 2 IN A PKG.)
5	-	1	Part 5	533 MM (21") (MAKE FROM R32007, R32024 AND (2) R32027 IN AR84006 WIRE REPAIR KIT) (SUB FOR AR27575)
6	R21551	1	CLIP	-
7	-	1	Part 7	FRONT LAMP GROUND, 140 MM (5-1/2") (MAKE FROM R32007, R32016 AND R32018 IN AR84006 WIRE REPAIR KIT) (SUB FOR AR29148)
8	R2579R	2	GROMMET	TRACTOR SIDE LAMP LEADS TO FENDER
9	A2743R	2	WASHER	-
9	14H809	2	Nut	1/2"
9	12H301	2	Lock Washer	1/2"
9	R31892	2	WASHER	-
9	R21551	2	CLIP	TRACTOR SIDE LAMP LEAD TO BATTERY BOX SUPPORT
9	R21551	1	CLIP	SIDE LAMP HARNESS TO BATTERY BOX SUPPORT
9	AR28166	1	LAMP	SIDE
10	AR26756	1	WIRING LEAD	WITH FUSE
11	R21551	1	CLIP	FUSE HOLDER LEAD TO BATTERY BOX
12	AR26571	1	SOCKET	-
12	AR40710	1	PLUG	WITH CABLE, (SUB FOR AA5691R)
12	AA5692R	1	ELEC. CONNECTOR TERMINAL	LESS CABLE
13	AR27578	1	WIRING HARNESS	SIDE LAMP L.H.
14	AR27921	1	WIRING HARNESS	FRONT LAMP
14	F2084R	1	CLIP	FRONT LAMP HARNESS TO GRILLE HOUSING
14	R44302	1	Tie Band	FRONT LAMP HARNESS TO MAIN HARNESS, (SUB FOR R27457)
14	F2084R	1	CLIP	FRONT LAMP HARNESS TO FUEL TANK
15	A3411R	1	Grommet	DASH LAMP LEAD TO DASH
16	F2084R	1	CLIP	DASH LAMP LEAD TO DASH
17	AR33479	1	LAMP	(SUB FOR AR35993)
18	-	1	Part 29	FRONT LAMP GROUND, 140 MM (5-1/2") (MAKE FROM R32007, R32016 AND R32018 IN AR84006 WIRE REPAIR KIT) (SUB FOR AR29148)
19	AR27923	1	LAMP	FRONT
19	37H84	6	Screw	1/4" X 3/4", (SUB FOR R28291) FRONT LAMP TO GRILLE HOUSING
20	24H1302	1	Washer	13/32" X 11/16" X 0.035"
20	B1828R	1	Bushing	-
20	T13814	1	Clamp	-
20	R44302	5	Tie Band	(SUB FOR R27457)
20	R20847	2	Clip	MAIN HARNESS TO HOOD BAFFLE
20	14H785	1	Nut	5/16", MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
20	12H291	1	Lock Washer	INTERNAL TOOTH 0.312" MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
20	21H1029	1	Screw	5/16" X 3/4", MAIN HARNESS CLAMP TO CONTROL SUPPORT
20	R27539	1	CLAMP	MAIN HARNESS TO CONTROL SUPPORT
20	R34275	1	WIRING HARNESS	MAIN, (DIESEL)
20	R34274	1	WIRING HARNESS	MAIN, (GASOLINE) (SUB AR47650 KIT)
