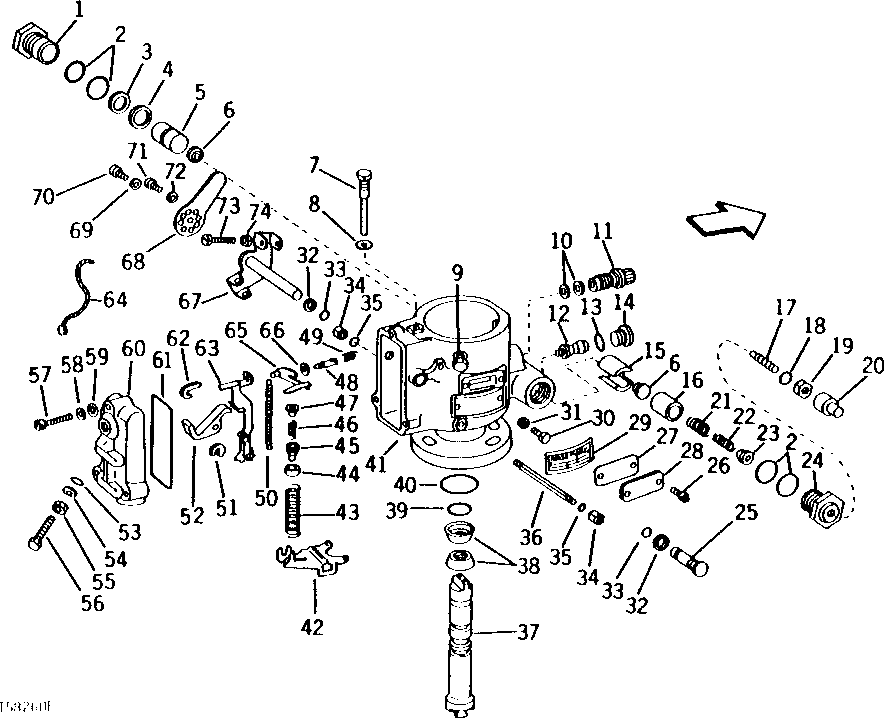

INJECTION PUMP HOUSING, DRIVE, AUTOMATIC ADVANCE AND LINKAGE [01E14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R74310	1	PLUG	(SUB FOR T15707, THIS APPLICATION)
2	T15710	2	O-RING	-
2	R56396	2	O-Ring	-
3	R49211	1	WASHER	(SUB FOR R36651, THIS APPLICATION)
4	R34635	1	WASHER	-
5	R34824	1	PISTON	-
6	T15705	2	WASHER	-
7	T11923	1	STUD	-
8	T11943	1	WASHER	-
9	R30714	2	BOLT	-
10	T11899	2	O-Ring	-
11	AR51712	1	SCREW	(SUB FOR R34637)
12	R36646	1	SCREW	-
13	T15712	1	O-Ring	-
14	T15711	1	PLUG	-
15	T18530	1	RETAINER	-
16	R74325	1	PISTON	(SUB FOR T17120)
17	T17123	1	SET SCREW	-
18	R76578	1	O-Ring	(SUB FOR T11915)
19	T17122	1	NUT	-
20	T17117	1	CAP	-
21	R36648	1	SPRING	-
22	R36647	1	SPRING	-
23	T17125	1	GUIDE	-
24	T17126	1	PLUG	-
25	R59079	1	SHAFT	(SUB FOR T17946, THIS APPLICATION)
26	T11884	4	SCREW	-
27	T11882	2	COVER	-
28	T11883	2	GASKET	-
29	T11875	1	IDENTIFICATION PLATE	-
29	T11876	2	SCREW	-
30	T11930	2	SCREW	-
31	T11878	2	WASHER	-
32	T15720	2	WASHER	-
33	R76578	2	O-Ring	(SUB FOR T11915)
34	T11932	2	NUT	-
35	T11906	2	O-RING	-
36	T11925	1	SHAFT	-
37	R32409	1	DRIVE SHAFT	-
38	T11290	2	SEAL	-
39	R34404	1	O-Ring	(SUB FOR T12860)
40	R460R	1	O-Ring	-
41	AR34184	1	HOUSING	-
41	R40907	1	TUBE	(NOT ILLUSTRATED)
42	T16602	1	ARM	-
43	R41203	1	SPRING	(SUB FOR T11951)
44	T17952	1	WASHER	-
45	T11924	1	RETAINER	-
46	T11913	1	SPRING	-
47	T11914	1	GUIDE	-
48	AR91548	1	KIT	(SUB FOR T17115)
49	R58422	1	SPRING	(SUB FOR T11907)
50	T11911	1	SPRING	-
51	T11929	1	CLIP	-
52	T11927	1	LEVER	-
53	T17951	1	O-Ring	-
54	T17947	1	WASHER	(SUB FOR B1085R)
55	T11921	1	NUT	-
56	T17953	1	CAP SCREW	SLOW IDLE
57	T15721	1	SCREW	-
57	R71851	2	SCREW	-
58	12H295	3	Lock Washer	0.190", (SUB FOR T11095)
59	T15715	3	WASHER	-
60	T17945	1	COVER	-
61	T11918	1	GASKET	-
62	R30721	1	CAM	-
63	AT11520	1	HOOK	-
63	AR28602	1	LINK	-
63	R30718	1	SCREW	-
63	R30719	1	LOCK WASHER	-
64	T11877	4	WIRE	-
65	AR30736	1	ARM	-
66	R30732	1	SHIM	-
67	R36542	1	SHAFT	-
68	R34621	1	LEVER	-
69	R47077	1	LOCK WASHER	-
70	T11917	1	Screw	-
71	T11940	1	SCREW	-
72	12H290	1	Washer	0.164", (SUB FOR T11950)
73	T11920	1	SCREW	FAST IDLE
74	T19862	1	NUT	(SUB FOR T11921, THIS APPLICATION)
