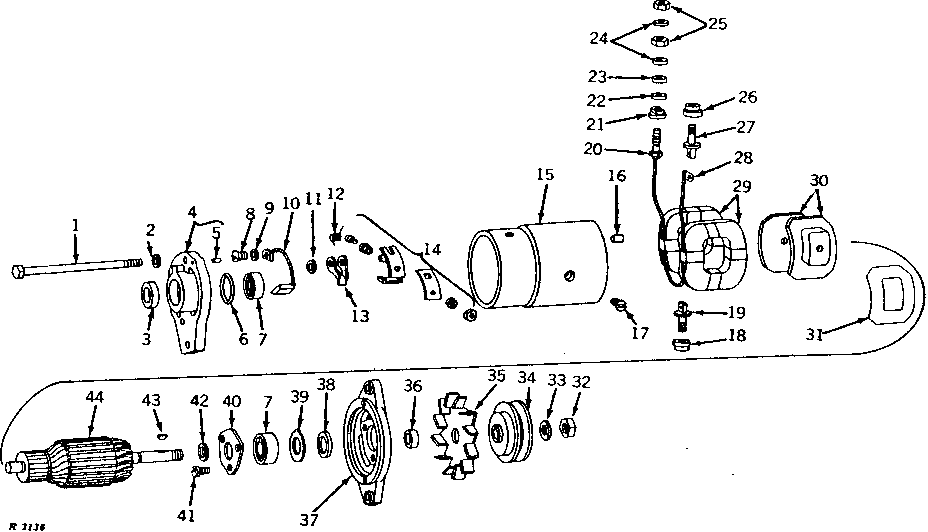

GENERATOR (DIESEL) (24-VOLT DELCO-REMY) (SERIAL NO. -67999) [02C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	( R11158 NO LONGER AVAILABLE)
2	12H303	2	Lock Washer	5/16"
3	R11188	1	PLUG	-
4	-	1	Part 4	( AR11331 NO LONGER AVAILABLE)
5	R11086	1	Dowel Pin	-
6	T11660	1	O-RING	-
7	JD9449	2	Ball Bearing	(SUB FOR JD8535 OR AT23188)
8	21H1309	2	Screw	0.138" X 1/4"
9	12H314	2	Lock Washer	0.138", (SUB FOR R11106)
10	AR11074	2	BRUSH	-
11	T11651	2	SHIM	-
12	T11652	2	SPRING	-
13	T11649	2	ARM	-
14	AR40217	2	HOLDER	(SUB FOR AR11068)
15	-	1	Part 15	-
16	R11087	1	DOWEL PIN	-
17	21H1280	2	SCREW	3/8" X 3/4", (SUB FOR R11097 AND T18353)
18	R11113	1	WASHER	-
19	T11656	1	STUD	(SUB FOR R11162)
20	AR40436	1	STUD	(SUB FOR R11042)
21	T11650	1	INSULATOR	(SUB AR40436)
22	-	3	Part 22	(R11098 NO LONGER AVAILABLE)
23	24H1287	3	Washer	9/32" X 5/8" X 0.065", (SUB FOR R3031R)
24	12H316	6	Lock Washer	0.216"
25	14H608	6	NUT	0.216"
26	R11113	1	WASHER	-
27	T11656	1	STUD	(SUB FOR R11162)
28	R32018	1	Elec. Connector Terminal	(SUB FOR R11043)
29	AR11031	1	ELECTRICAL COIL	-
30	R11161	2	SHOE	-
31	R11160	2	INSULATOR	-
32	R11049	1	Nut	-
33	T10745	1	Washer	-
34	R11234	1	PULLEY	-
35	T12870	1	FAN	-
36	T11648	1	LOCKING COLLAR	-
37	AR11333	1	FRAME	-
38	R11089	1	WASHER	-
39	R11094	1	PLATE	-
40	R11109	1	Plate	-
41	21H1127	3	SCREW	0.190" X 7/16", (SUB FOR R11105)
42	R11088	1	WASHER	-
43	26H72	1	Shaft Key	1/8" X 5/8"
44	AR11330	1	ARMATURE	-
..	-	1	Part 45	(DELCO-REMY NO. 1103026) ( AR11302 NO LONGER AVAILABLE) (SUB TY1447)
..	TY1447	1	DC GENERATOR	(REMANUFACTURED)

GENERATOR (DIESEL) (24-VOLT DELCO-REMY) (SERIAL NO. -67999) [02C11]
