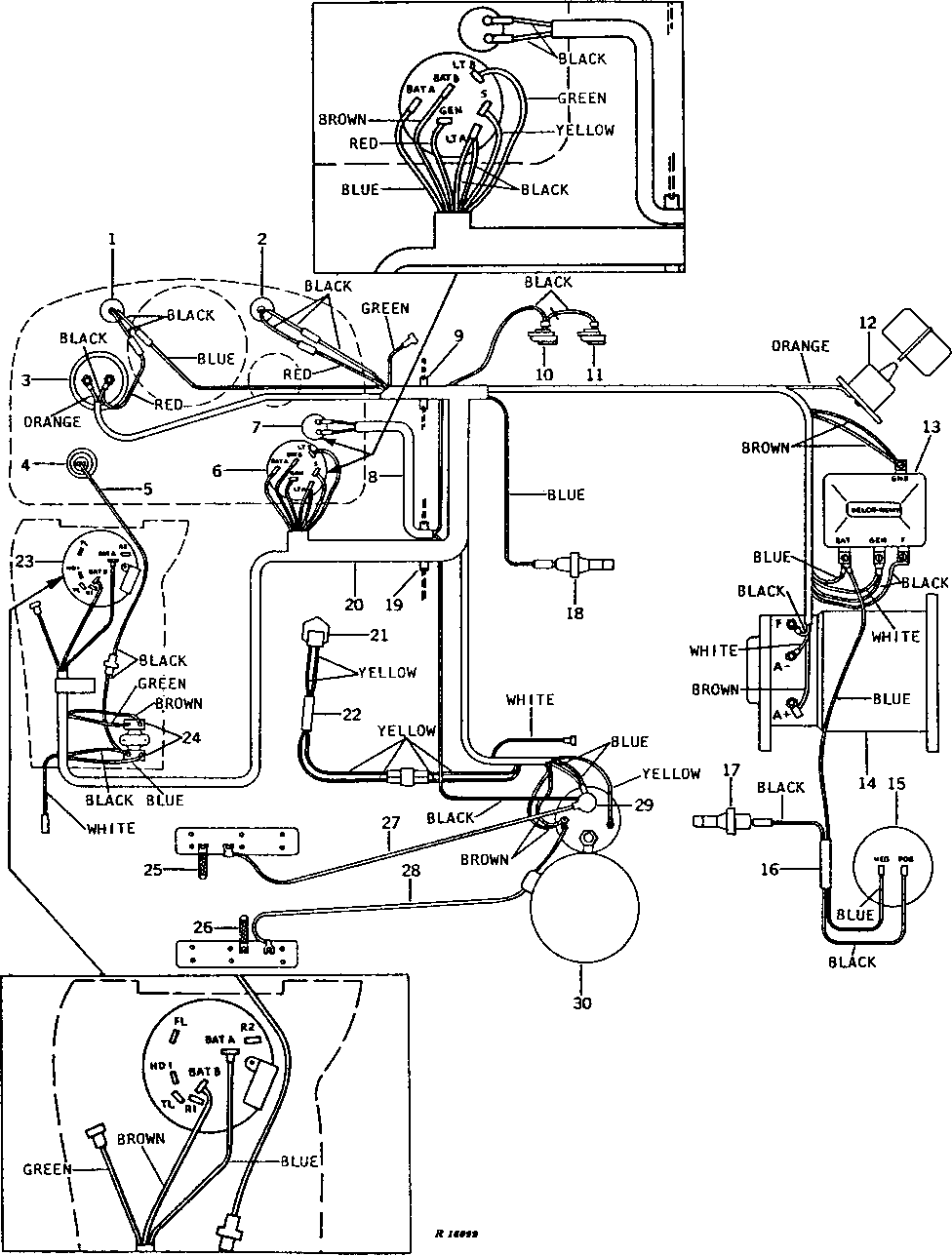

GENERATOR AND STARTER WIRING (DIESEL) (SERIAL NO. -67999) [02D17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27944	1	LAMP	-
2	AT14699	1	INDICATOR LAMP	-
3	R34262	1	GAUGE	-
4	R48643	1	ELECTRICAL LIGHTER	(SUB FOR AR34556 AND AR46079)
5	-	1	Part 5	CIGARETTE LIGHTER TO CIRCUIT BREAKER, 305 MM (12 IN.) (MAKE FROM R32007, R32018, R32025 AND R32027 IN AR84006 WIRE REPAIR KIT) (SUB FOR R34585)
6	AR26557	1	SWITCH	-
7	AR21823	1	SWITCH	-
8	R34702	1	WIRING HARNESS	-
9	R26936	1	Grommet	MAIN HARNESS TO HOOD BAFFLE
10	R11276	1	HORN	LOW NOTE (12-VOLT)
11	R64700	1	High Note Horn	HIGH NOTE (12-VOLT) (SUB FOR R11277)
12	AR27730	1	SENDER	-
13	AR30155	1	VOLTAGE REGULATOR	(24-VOLT) (DELCO-REMY NO. 1119282)
14	AR34567	1	DC GENERATOR	WITH FAN AND PULLEY, (24-VOLT) (DELCO-REMY NO. 1103026)
15	AR39848	1	HOUR METER	(SUB FOR AR27898)
16	R32379	1	WIRING HARNESS	HOUR METER TO PRESSURE SWITCH AND VOLTAGE REGULATOR
17	AR29339	1	SWITCH	-
18	AR27977	1	TOUCH SWITCH	-
19	R32555	1	Grommet	MAIN HARNESS TO HOOD BAFFLE, LOWER
20	24H1302	1	Washer	13/32" X 11/16" X 0.035", MAIN HARNESS CLAMP TO L.H. DASH TO CONTROL SUPPORT SCREW
20	B1828R	1	Bushing	SUPPORT SCREW, MAIN HARNESS CLAMP TO L.H. DASH TO CONTROL
20	T13814	1	Clamp	MAIN HARNESS TO L.H. DASH TO CONTROL
20	R44302	5	Tie Band	MAIN HARNESS TO STEERING OIL PIPES, (SUB FOR R27457)
20	R20847	2	Clip	MAIN HARNESS TO HOOD BAFFLE
20	12H291	1	Lock Washer	INTERNAL TOOTH, 0.312" MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
20	21H1029	1	Screw	5/16" X 3/4", MAIN HARNESS CLAMP TO CONTROL SUPPORT
20	R27539	1	CLAMP	MAIN HARNESS TO CONTROL SUPPORT
20	R34275	1	WIRING HARNESS	-
20	14H785	1	Nut	5/16", MAIN HARNESS CLAMP TO CONTROL SUPPORT SCREW
21	R36265	1	SWITCH	(COLLAR SHIFT AND POWER SHIFT)
21	R36265	1	SWITCH	(POWER SHIFT)
22	R33770	1	WIRING HARNESS	START-SAFETY SWITCH TO MAIN HARNESS, (POWER SHIFT)
22	R34869	1	WIRING HARNESS	START-SAFETY SWITCH TO MAIN HARNESS, (POWER SHIFT)
22	R33823	1	WIRING HARNESS	START-SAFETY SWITCH TO MAIN HARNESS, (COLLAR SHIFT)
23	AR28402	1	SWITCH	-
24	AR28403	2	CIRCUIT BREAKER	-
25	14H812	1	NUT	3/8", GROUND STRAP TO BATTERY BOX SCREW
25	12H304	1	Lock Washer	3/8", GROUND STRAP TO BATTERY BOX SCREW
25	19H1936	1	Cap Screw	3/8" X 3/4", GROUND STRAP TO BATTERY BOX
25	AM348T	1	GROUND CABLE	GROUND POSITIVE L.H.
26	AT18702	1	GROUND CABLE	GROUND NEGATIVE R.H. (SUB FOR AR27367)
26	19H1936	1	Cap Screw	3/8" X 3/4", GROUND STRAP TO BATTERY BOX
26	12H304	1	Lock Washer	3/8", GROUND STRAP TO BATTERY BOX SCREW
26	14H812	1	NUT	3/8", GROUND STRAP TO BATTERY BOX SCREW
27	R33811	1	CABLE	BATTERY COLLAR, NEGATIVE, L.H. ( R33811 NO LONGER AVAILABLE)
27	R28133	2	CLIP	BATTERY CABLE TO BATTERY BOX
27	19H11	1	CAP SCREW	1/4" X 3/8", BATTERY CABLE CLIP TO BATTERY BOX
27	R36235	1	Grommet	BATTERY CABLE TO SUPPORT
28	AR30388	1	CABLE	POSITIVE R.H. (POWER SHIFT) (SUB AR27365)
28	AR27365	1	CABLE	POSITIVE R.H. (COLLAR SHIFT)
28	R28133	1	CLIP	BATTERY CABLE TO BATTERY BOX
28	19H11	1	CAP SCREW	1/4" X 3/8", BATTERY CABLE CLIP TO BATTERY BOX
29	R30964	2	Cover	-
30	AR40134	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY NO. 1113190) (SUB FOR AR11138 DELCO-REMY NO. 1113148)

GENERATOR AND STARTER WIRING (DIESEL) (SERIAL NO. -67999) [02D17]
