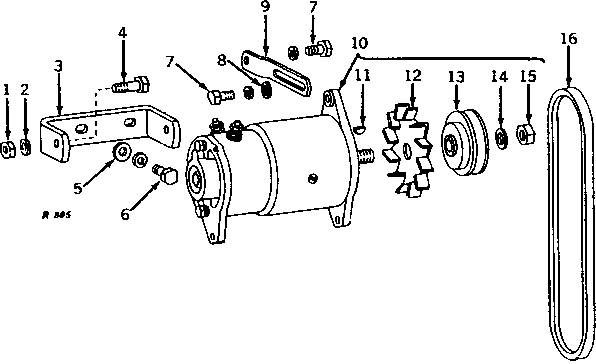

GENERATOR AND MOUNTING BRACKET (SERIAL NO. -67999)(JD500) [02C08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1076	2	Nut	3/8", (HS SAE 8)
2	12H304	2	Lock Washer	3/8"
3	R26602	1	BRACKET	-
4	19H1732	2	Cap Screw	3/8" X 1-1/4"
5	24H1330	2	Washer	15/32" X 1-3/8" X 7/64"
6	19H1821	2	CAP SCREW	7/16" X 1-1/4"
6	12H293	2	Lock Washer	7/16"
7	19H1900	2	Cap Screw	5/16" X 3/4"
7	12H303	2	Lock Washer	5/16"
8	24H1292	1	Washer	11/32" X 3/4" X 0.120"
9	R26603	1	STRAP	(SUB FOR R34062 ON JD500)
10	-	1	Part 12	(A) (12-VOLT DELCO-REMY) ( AR33879, R11303 OR AR59295 NO LONGER AVAILABLE) (SUB TY1439)
10	TY1447	1	DC GENERATOR	(B) (24-VOLT) (REMANUFACTURED)
10	AR11302	1	DC GENERATOR	(B) (24-VOLT DELCO-REMY) ( AR11302 NO LONGER AVAILABLE) (SUB TY1447)
10	TY1439	1	DC GENERATOR	(A) (12-VOLT) (REMANUFACTURED)
11	26H72	1	Shaft Key	1/8" X 5/8"
12	T12870	1	FAN	-
13	R11234	1	PULLEY	(NOT ILLUSTRATED) (JD500)
14	T10745	1	Washer	-
15	R11049	1	Nut	-
16	AR41628	1	BELT SET	(A) (MATCHED SET) (NOT ILLUSTRATED) (SUB FOR AR32659 OR AR41575 ON JD500)
16	AR41576	1	BELT SET	(B) (MATCHED SET) (NOT ILLUSTRATED) (SUB FOR AR32661 OR AR41629 ON JD500)

GENERATOR AND MOUNTING BRACKET (SERIAL NO. -67999)(JD500) [02C08]
