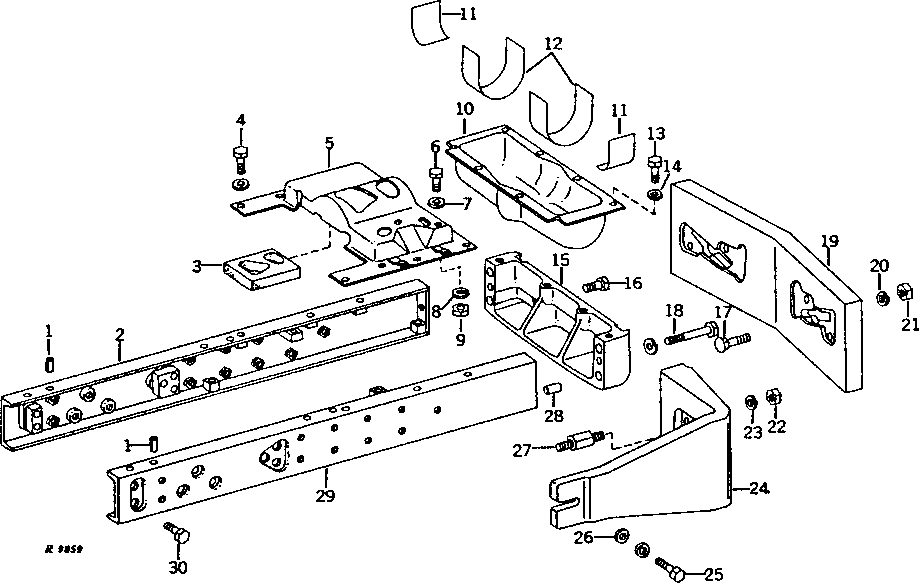

FRAME, FRAME PLATE, AND FRONT WEIGHTS [02A19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H309	4	Spring Pin	1/4" X 5/8"
2	AR31295	1	FRAME	SIDE, L.H.
3	R27898	1	ISOLATOR	-
4	19H456	4	CAP SCREW	1/2" X 1-3/8"
4	12H301	4	Lock Washer	1/2"
5	AR45195	1	PLATE	WITH BAFFLE, (SUB FOR AR32381, AR39600 AND AR44009) (NO LONGER AVAILABLE)
6	19H1792	1	Cap Screw	1/2" X 1"
7	24H1341	2	Washer	17/32" X 15/16" X 0.060"
8	12H301	2	Lock Washer	1/2"
9	14H809	2	Nut	1/2"
10	AR34387	1	SUPPORT	WITH CUSHIONS
11	-	2	Part 12	1/8" X 76.20 MM X 101.60 MM (1/8" X 3" X 4") (MAKE FROM R30636, 1/8" X 76.20 MM X 1524 MM (1/8" X 3" X 60") BULK OF ANTI-SQUEAK WEBBING)
12	-	2	Part 13	1/8" X 76.20 MM X 254 MM (1/8" X 3" X 10") (MAKE FROM R30636, 1/8" X 76.20 MM X 1524MM (1/8" X 3" X 60") BULK OF ANTI-SQUEAK WEBBING)
13	19H1792	2	Cap Screw	1/2" X 1"
14	24H1341	2	Washer	17/32" X 15/16" X 0.060"
15	R32205	1	R32205	FRONT
16	19H1347	2	CAP SCREW	3/4" X 1-5/8"
17	03H1857	2	BOLT	5/8" X 2-3/4" RD. HD. (SUB FOR R27644)
18	19H1926	2	Cap Screw	5/8" X 4-3/4"
18	12H294	2	Lock Washer	5/8"
19	R27643	1	WEIGHT	FRONT (NO LONGER AVAILABLE)
20	12H294	2	Lock Washer	5/8"
21	14H800	2	Nut	5/8"
22	14H794	2	Nut	3/4", (SUB FOR R27646)
23	12H236	2	Lock Washer	3/4"
24	R28699	2	R28699	FRAME SIDE (NO LONGER AVAILABLE
25	19H1824	2	CAP SCREW	5/8" X 2-1/4"
25	12H294	2	Lock Washer	5/8"
26	F2783R	2	WASHER	-
27	R27645	2	STUD	-
28	R26277	4	DOWEL PIN	-
29	AR31294	1	FRAME	SIDE R.H.
30	R31581	8	SCREW	-
..	AR26820	1	WEIGHT	(CONSISTS OF R27643 FRONT FRAME WEIGHT AND ONE AR26822 HARDWARE FOR ATTACHING FRONT FRAME WEIGHT)

FRAME, FRAME PLATE, AND FRONT WEIGHTS [02A19]
