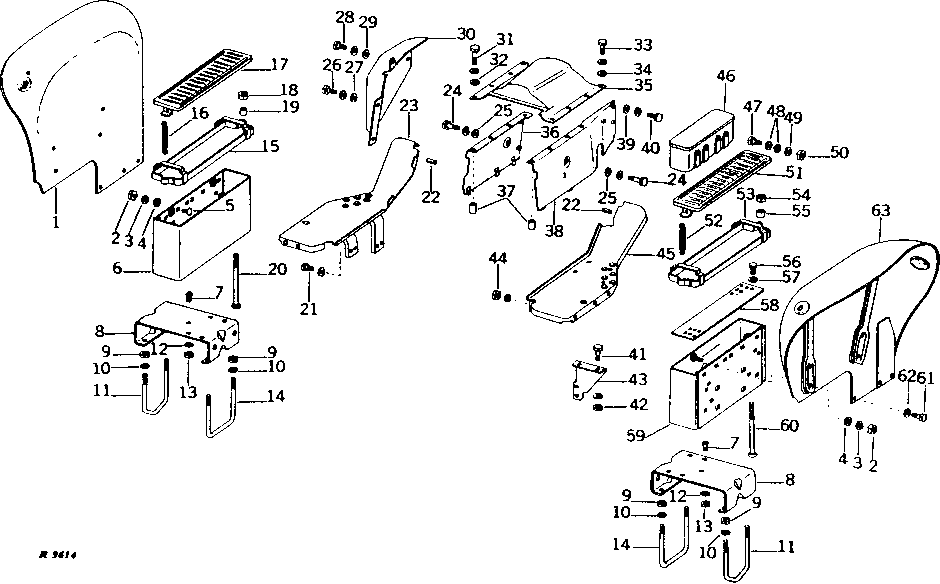

FENDERS, PLATFORM, BATTERY BOXES AND SHIELDS [02B21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR34986	1	AR34986	L.H. (SUB AR40458)
1	AR27583	1	AR27583	L.H. (SUB AR40458)
1	AR40458	1	FENDER	L.H. (NO LONGER AVAILABLE)
2	14H809	8	Nut	1/2"
3	12H301	8	Lock Washer	1/2"
4	24H1303	8	WASHER	13/32" X 11/16" X 0.065"
5	03H1596	8	Bolt	1/2" X 3" RD. HD.
6	AR27362	1	BOX	(DIESEL) (SUB AR40039)
6	AR40039	1	BATTERY BOX	(SUB FOR AR34613)
7	21H1251	8	SCREW	1/2" X 1"
8	R33808	2	SUPPORT	-
9	14H1039	8	Nut	5/8"
10	12H247	8	Lock Washer	5/8"
11	R28046	2	U-BOLT	OUTER
12	12H292	8	Lock Washer	1/2"
13	14H809	8	Nut	1/2"
14	R33809	2	U-BOLT	INNER
15	AR26469	1	HOLD-DOWN CLIP	-
16	R2577R	2	Extension Spring	-
17	AR30468	1	COVER	-
18	14H786	2	Nut	1/4"
19	R20522	2	Bushing	-
20	03H2173	2	Bolt	1/4" X 9-3/4"
21	12H304	6	Lock Washer	3/8"
21	19H1936	6	Cap Screw	3/8" X 3/4"
22	34H336	2	Spring Pin	5/16" X 2-1/4"
23	AR34783	1	PLATFORM	WITH SUPPORT, L.H. (POWER SHIFT) (SUB FOR AR32631)
23	AR32632	1	PLATFORM	WITH SUPPORT, L.H. (COLLAR SHIFT)
24	19H1936	2	Cap Screw	3/8" X 3/4"
24	12H304	2	Lock Washer	3/8"
25	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
26	19H1227	2	Cap Screw	1/4" X 1/2"
26	12H302	2	Lock Washer	1/4"
27	24H1287	2	Washer	9/32" X 5/8" X 0.065"
28	12H303	2	Lock Washer	5/16"
28	19H2487	2	Cap Screw	5/16" X 9/16"
29	24H1290	1	Washer	21/64" X 3/4" X 0.035"
30	AR32628	1	SHIELD	WITH CLIP
31	19H1726	2	Cap Screw	3/8" X 2-1/4"
31	12H304	2	Lock Washer	3/8"
32	24H1303	2	WASHER	13/32" X 11/16" X 0.065"
33	19H1227	6	Cap Screw	1/4" X 1/2"
33	12H302	6	Lock Washer	1/4"
34	24H1287	6	Washer	9/32" X 5/8" X 0.065"
35	R34025	1	SHIELD	TOP
36	AR32630	1	SHIELD	L.H.
37	28H1497	2	Bushing	-
38	AR39794	1	SHIELD	R.H.
38	AR32629	1	SHIELD	R.H. (SUB AR39794)
39	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
40	19H2021	1	Cap Screw	3/8" X 5/8"
40	12H304	1	Lock Washer	3/8"
41	03H1765	2	Bolt	3/8" X 3/4"
41	12H304	2	Lock Washer	3/8"
42	14H812	2	NUT	3/8"
43	R34014	1	SUPPORT	FRONT, R.H.
44	14H812	6	NUT	3/8"
45	AR32631	1	PLATFORM	WITH SUPPORT, R.H. (SUB AR34783)
45	AR34783	1	PLATFORM	WITH SUPPORT, R.H.
46	AR34684	1	TOOLBOX	(DIESEL)
47	19H1936	2	Cap Screw	3/8" X 3/4", (DIESEL)
48	24H1305	4	Washer	13/32" X 13/16" X 0.065", (DIESEL)
49	12H304	2	Lock Washer	3/8", (DIESEL)
50	14H812	2	NUT	3/8", (DIESEL)
51	AR30468	1	COVER	(DIESEL)
51	AR30468	1	COVER	(GASOLINE)
52	R2577R	2	Extension Spring	(DIESEL)
53	AR26469	1	HOLD-DOWN CLIP	(DIESEL)
54	14H786	2	Nut	1/4", (DIESEL)
55	R20522	4	Bushing	(DIESEL)
56	21H1252	2	SCREW	1/4" X 3/8", (GASOLINE)
57	24H1136	2	Washer	11/32" X 11/16" X 0.065", (GASOLINE)
58	R28790	1	SCREEN	(GASOLINE AND LP-GAS)
59	AR27362	1	BOX	(DIESEL) (SUB AR40039)
59	AR27362	1	BOX	(GASOLINE) (SUB AR40039)
59	AR40039	1	BATTERY BOX	(SUB FOR AR34613 OR AR27362)
60	03H2173	2	Bolt	1/4" X 9-3/4", RD. HD. (DIESEL)
61	19H1905	6	Cap Screw	5/16" X 1"
61	12H303	6	Lock Washer	5/16"
62	24H1136	2	Washer	11/32" X 11/16" X 0.065"
63	AR27582	1	FENDER	R.H.
..	19H1731	6	Cap Screw	3/8" X 1"
..	14H812	6	NUT	3/8"
..	14H812	8	NUT	3/8"
..	12H304	6	Lock Washer	3/8"
..	12H304	8	Lock Washer	3/8"
..	10H1026	8	Bolt	3/8" X 1"
..	24H1303	6	WASHER	13/32" X 11/16" X 0.065"
..	24H1303	8	WASHER	13/32" X 11/16" X 0.065"
..	R40163	2	EXTENSION	FENDER SIDE
..	R40161	1	SUPPORT	FENDER SIDE, R.H.
..	R40162	1	SUPPORT	FENDER SIDE, L.H.
..	R38361	1	LABEL	-
