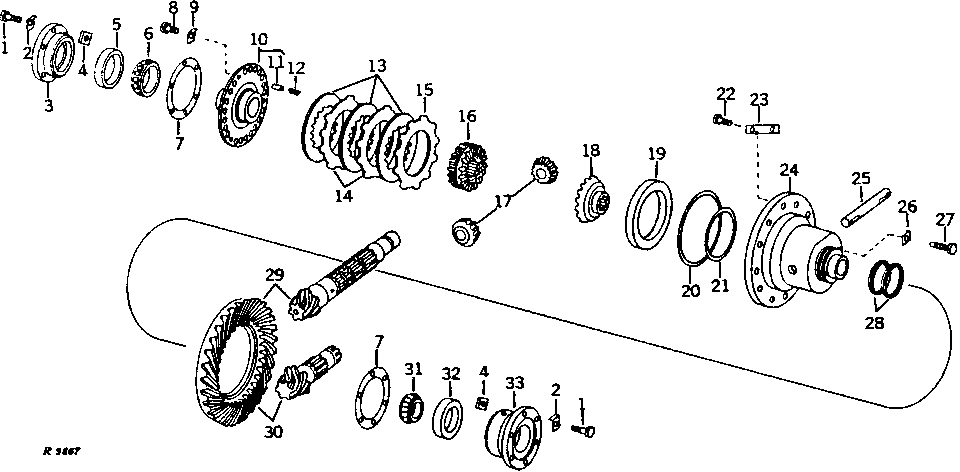

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) (SERIAL NO. 68000- ) [01H06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2508	10	CAP SCREW	1/2" X 1-3/8"
1	19H2550	2	CAP SCREW	1/2" X 1-5/8"
2	R26038	12	LOCK PLATE	-
3	R33493	1	BEARING HOUSING W/O BEARING	L.H.
4	14H823	2	NUT	1/2"
5	JD8259	1	Bearing Cup	-
6	JD8954	1	Bearing Cone	WITH ROLLERS
7	R26042	1	SHIM	-
7	R26043	1	SHIM	-
8	R40235	10	CAP SCREW	(SUB FOR R40026)
9	-	5	Part 11	-
10	AR47835	1	COVER	WITH PINDS, (MARKED R34807 OR R45784) (SUB FOR AR34754)
11	34H297	2	Spring Pin	7/32" X 1"
12	R34822	2	SPRING	-
13	AR33974	3	CLUTCH DISK	WITH FACING
14	R78155	2	Clutch Plate	(SUB FOR R34520)
15	R78156	1	Clutch Plate	(SUB FOR R34517)
16	R34808	1	STEERING GEAR	-
17	R42443	2	PINION	(SUB FOR R33496)
18	R42445	1	GEAR	(SUB FOR R33490)
19	R34526	1	PISTON	-
20	R41018	1	Packing	(SUB FOR R34515)
21	R41019	1	O-RING	(SUB FOR R34516)
22	19H2252	10	CAP SCREW	1/2" X 1-3/16"
23	R34488	5	PLATE	-
24	AR34823	1	HOUSING	(MARKED R34806)
25	R41902	1	PINION SHAFT	(SUB FOR R33495)
26	F3173R	1	LOCK PLATE	-
27	R34510	1	BOLT	-
28	R34513	2	Ring	-
29	AR34722	1	GEAR	R34875, SPIRAL BEVEL, AND R34873, DIFFERENTAIL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS, (SUB FOR AR34735) (ALSO ORDER (2) R26227, (4) R26228, (2) R33413 AND (4) R33414) (MATCH SET) (COLLAR SHIFT)
30	AR34736	1	BEVEL GEAR DRIVE	R34875, SPIRAL BEVEL, AND R34874, DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS, (MATCH SET) (POWER SHIFT)
31	JD8159	1	Bearing Cone	WITH ROLLERS
32	JD8210	1	Bearing Cup	-
33	R34529	1	BEARING HOUSING W/O BEARING	R.H.

DIFFERENTIAL (TRACTORS WITH DIFFERENTIAL LOCK) (SERIAL NO. 68000- ) [01H06]
