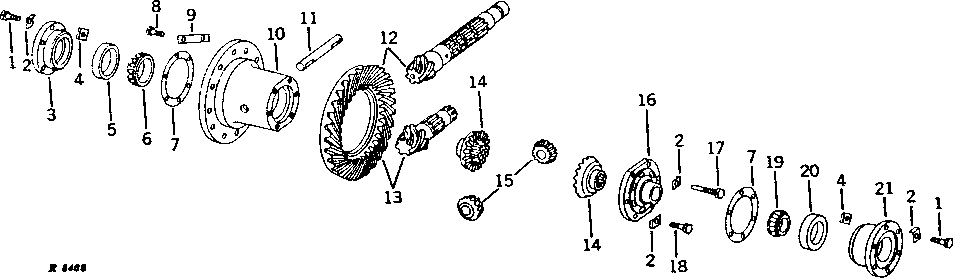

DIFFERENTIAL (TRACTORS LESS DIFFERENTIAL LOCK) [01H05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2508	10	CAP SCREW	1/2" X 1-3/8"
1	19H2550	2	CAP SCREW	1/2" X 1-5/8"
2	R26038	18	LOCK PLATE	-
3	R33493	1	BEARING HOUSING W/O BEARING	L.H.
4	14H823	2	NUT	1/2"
5	JD8259	1	Bearing Cup	-
6	JD8954	1	Bearing Cone	WITH ROLLERS
7	R26042	1	SHIM	-
7	R26043	1	SHIM	-
8	19H2252	10	CAP SCREW	1/2" X 1-3/16"
9	R34488	5	PLATE	-
10	R33078	1	HOUSING	-
11	R41902	1	PINION SHAFT	(SUB FOR R33495)
12	AR32535	1	GEAR	R33064, SPIRAL BEVEL, AND R33063, DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS (MATCHED SET) (COLLAR SHIFT) (SUB AR34722) (ALSO ORDER (2) R26227, (4) R26228, (2) R33413 AND (4) R33414)
12	AR34722	1	GEAR	R34875, SPIRAL BEVEL, AND R34873 DIFFERENTIAL DRIVE SHAFT AND BEVEL PINION AND SHIMS (MATCHED SET) (COLLAR SHIFT) (SUB FOR AR34735) (ALSO ORDER (2) R26227, (4) R26228, (2) R34313 AND (4) R34314)
13	AR32447	1	GEAR	R33064, SPIRAL BEVEL, AND R33067 DIFFERENTIAL DRIVE GEAR SHAFT AND BEVEL PINION, WITH SHIMS (MATCHED SET) (POWER SHIFT) (SUB AR34736)
13	AR34736	1	BEVEL GEAR DRIVE	R34875, SPIRAL BEVEL, AND R34874 DIFFERENTIAL DRIVE SHAFT AND BEVEL PINION AND SHIMS (MATCHED SET) (POWER SHIFT)
14	R42445	2	GEAR	(SUB FOR R33490)
15	R42443	2	PINION	(SUB FOR R33496)
16	R33491	1	COVER	-
17	R70236	1	CAP SCREW	(SUB FOR R26037 AND R41050)
18	19H2508	5	CAP SCREW	1/2" X 1-3/8"
19	JD8159	1	Bearing Cone	WITH ROLLERS
20	JD8210	1	Bearing Cup	-
21	R33492	1	BEARING HOUSING W/O BEARING	R.H.
