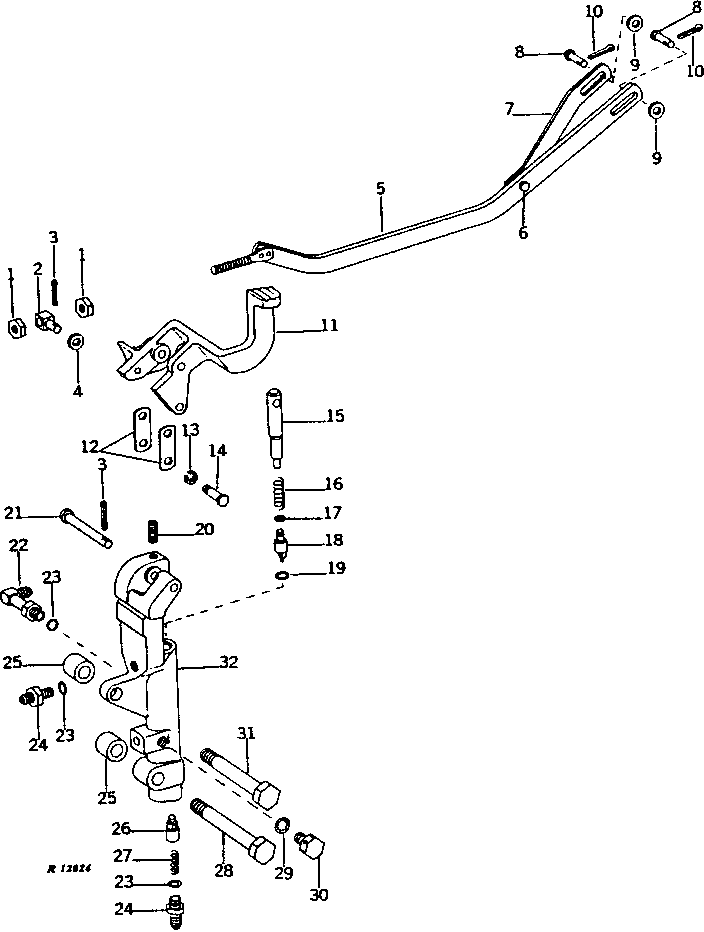

DIFFERENTIAL LOCK VALVE (SERIAL NO. 68000- ) [01H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	2	NUT	3/8"
2	R34581	1	SWIVEL	-
3	11H211	2	COTTER PIN	1/8" X 3/4"
4	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
5	AR34787	1	AR34787	OUTER, WITH SCREW, (SUB AR40229)
5	-	1	Part 6	OUTER, W/SCREW ( AR40229 NO LONGER AVAILABLE)
6	16H1071	1	RIVET	5/16" X 1/2", (SUB FOR R34508)
7	-	1	Part 8	INNER ( R36935 NO LONGER AVAILABLE)
8	P46404	2	Pin Fastener	-
9	24H1136	2	Washer	11/32" X 11/16" X 0.065"
10	11H233	3	COTTER PIN	3/32" X 1/2"
11	-	1	Part 12	( R34926 NO LONGER AVAILABLE)
12	R34522	2	STRAP	-
13	R26386	2	SNAP RING	-
14	R26385	2	PIN FASTENER	-
15	R39732	1	VALVE	-
16	R39731	1	SPRING	-
17	R39730	1	SHIM	-
18	R34492	1	VALVE	-
19	R459R	1	O-Ring	-
20	R34582	1	SET SCREW	-
21	R34927	1	PIN FASTENER	-
22	AR26771	2	ELBOW FITTING	-
23	R26286	3	O-Ring	-
24	AR30762	1	Tee Fitting	(SUB FOR R27272)
25	R34495	2	SPACER	-
26	R40629	1	VALVE	-
26	R34496	1	VALVE	-
27	R715R	1	SPRING	-
28	19H2365	1	CAP SCREW	9/16" X 5"
29	R26286	1	O-Ring	( R34814)
30	R27094	1	Drain Plug	( R34814)
30	15H559	2	Pipe Plug	1/4", DIFFERENTIAL LOCK VALVE HOUSING (MARKED R36902)
31	19H2364	1	CAP SCREW	9/16" X 4-1/2"
32	-	1	Part 35	WITH BALL, PLUG, AND PACKING ( AR36372 NO LONGER AVAILABLE) (SUB AR42109 AND R40629) (MARKED R34814 OR R36902)
32	AR42109	1	HOUSING	WITH BALLS, PLUG, AND PACKING, (MARKED R41929) (SUB FOR AR40493) (MARKED R40628 OR R40632)

DIFFERENTIAL LOCK VALVE (SERIAL NO. 68000- ) [01H07]
