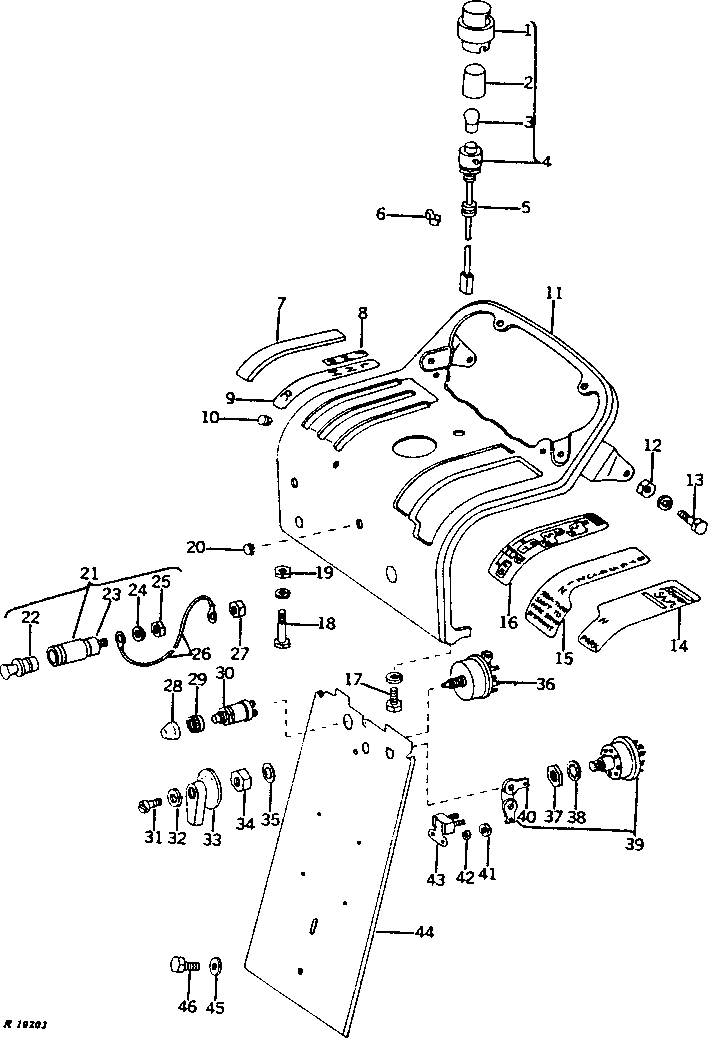

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP [02B19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40192	1	COVER	(HOBBS)
1	R28793	1	COVER	(HOBBS) (SUB R40192)
2	R28792	1	LENS	(HOBBS)
3	AT12948	1	BULB	6 C.P., 12-14 VOLT
4	AR35993	1	LAMP	(SUB AR33479)
4	AR33479	1	LAMP	-
5	A3411R	1	Grommet	-
6	F2084R	1	CLIP	-
7	R27361	1	ISOLATOR	(TRACTORS LESS SELECTIVE CONTROL)
8	R40503	1	LABEL	(POWER SHIFT) (SUB FOR R33604)
9	R40502	1	LABEL	(COLLAR SHIFT) (SUB FOR R31180)
10	R27983	1	Plug	-
11	AR34966	1	INSTRUMENT PANEL	(POWER SHIFT) (SUB FOR AR32390)
11	AR34965	1	INSTRUMENT PANEL	(COLLAR SHIFT) (SUB FOR AR32774)
12	14H812	2	NUT	3/8"
13	12H304	2	Lock Washer	3/8"
13	19H1936	2	Cap Screw	3/8" X 3/4"
14	R40506	1	LABEL	(POWER SHIFT) (SUB FOR R34535)
15	R40507	1	LABEL	(POWER SHIFT) (SUB FOR R34536)
16	R40676	1	LABEL	(COLLAR SHIFT) (SUB FOR R34246)
17	19H1936	1	Cap Screw	3/8" X 3/4"
17	12H304	1	Lock Washer	3/8"
18	19H1765	1	Cap Screw	3/8" X 1-3/4"
18	12H304	1	Lock Washer	3/8"
19	14H812	1	NUT	3/8"
20	T11708	1	PLUG	(GASOLINE) (SUB FOR R32234)
21	AR48643	1	ELECTRICAL LIGHTER	(12-VOLT) (ATTACHMENT) (SUB FOR AR34556 AND AR46079)
22	AR60937	1	Electrical Lighter	(SUB FOR AA5787R, THIS APPLICATION)
23	AR30394	1	CIRCUIT BREAKER	-
24	12H290	1	Washer	0.164"
25	14H605	1	Nut	0.164"
26	-	1	Part 32	305 MM (12") (MAKE FROM R32007, R32018, R32025 AND R32027 FROM AR84006 WIRE REPAIR KIT) (SUB FOR R34585)
27	14H631	1	Nut	0.190"
28	R39549	1	CAP	-
29	AR47374	1	Cap	(SUB FOR R21157)
30	AR47373	1	SWITCH	(SUB FOR R39554)
31	21H996	1	SCREW	0.164" X 3/8" RD. HD.
32	12H315	1	Lock Washer	0.164"
33	R27963	1	KNOB	-
34	A4655R	1	Nut	-
35	12H292	1	Lock Washer	1/2"
36	R39551	1	SWITCH	-
36	AR28401	1	SWITCH	(GASOLINE)
36	AR28402	1	SWITCH	(DIESEL)
37	T15969	1	Nut	(SUB FOR R39553)
38	12H247	1	Lock Washer	5/8"
39	AR39505	1	ROTARY SWITCH	-
39	AR26528	1	SWITCH	(GASOLINE)
39	AR26557	1	SWITCH	(DIESEL)
40	A4700R	1	KEY	-
41	14H631	6	Nut	0.190"
42	12H295	6	Lock Washer	0.190" INTERNAL TOOTH
43	AR28403	1	CIRCUIT BREAKER	(1 USED GASOLINE) (2 USED DIESEL)
44	AR30049	1	COVER	(COLLAR SHIFT) (SUB AR34886)
44	AR32319	1	COVER	(POWER SHIFT) (SUB AR34887)
44	AR34886	1	COVER	(COLLAR SHIFT)
44	AR34887	1	COVER	(POWER SHIFT)
45	24H1305	1	Washer	13/32" X 13/16" X 0.065"
46	19H1731	1	Cap Screw	3/8" X 1"

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP [02B19]
