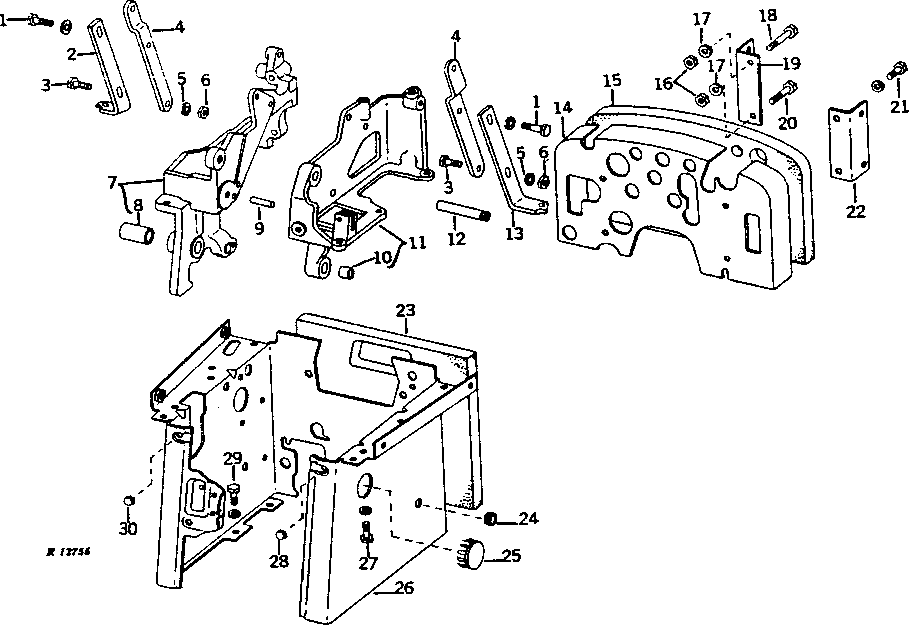

CONTROL SUPPORT AND ASSOCIATED PARTS [02B17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	2	Lock Washer	3/8", INTERNAL TOOTH
1	19H2552	2	CAP SCREW	3/8" X 1-1/8"
2	R31231	1	SUPPORT	L.H.
3	19H1731	2	Cap Screw	3/8" X 1"
4	R31229	2	SUPPORT	( R31229 NO LONGER AVAILABLE)
5	12H310	2	Lock Washer	3/8", INTERNAL TOOTH
6	14H812	2	NUT	3/8"
7	AR41176	1	BRACKET	L.H., WITH BUSHING AND PIN (POWER SHIFT) (MARKED R33599 OR R41505) (SUB FOR AR32317)
7	AR33384	1	BRACKET	L.H., WITH BUSHING AND PIN (COLLAR SHIFT) (MARKED R34335)
8	R27567	1	BUSHING	-
9	H826R	1	DOWEL PIN	-
10	F2030R	1	BUSHING	-
11	AR32315	1	BRACKET	WITH BUSHING AND TRANSMISSION CONTROL LEVER SHAFT (POWER SHIFT) (MARKED R33597)
11	AR33383	1	BRACKET	R.H. WITH BUSHING (COLLAR SHIFT) (MARKED R34334)
12	R33601	1	PIN FASTENER	(POWER SHIFT)
13	R31230	1	SUPPORT	R.H.
14	AR34011	1	ISOLATOR	(SUB AR34927)
14	AR34927	1	ISOLATOR	-
15	R34562	1	FOAM PAD	-
16	14H812	2	NUT	3/8", (TRACTORS LESS SELECTIVE CONTROL)
17	12H304	2	Lock Washer	3/8", (TRACTORS LESS SELECTIVE CONTROL)
18	19H1726	1	Cap Screw	3/8" X 2-1/4", (TRACTORS LESS SELECTIVE CONTROL)
19	R26895	1	ANGLE	(TRACTORS LESS SELECTIVE CONTROL) ( R26895 NO LONGER AVAILABLE)
20	19H1765	1	Cap Screw	3/8" X 1-3/4", (TRACTORS LESS SELECTIVE CONTROL)
21	19H2284	2	Cap Screw	3/8" X 7/8"
21	12H304	2	Lock Washer	3/8"
22	R26895	1	ANGLE	( R26895 NO LONGER AVAILABLE)
23	R28260	1	FOAM PAD	(GASOLINE)
23	R34564	1	FOAM PAD	(DIESEL)
24	R34811	2	GROMMET	-
25	R66561	1	PLUG	(TRACTORS LESS PTO) (SUB FOR R34444, THIS APPLICATION)
26	AR32819	1	SUPPORT	-
27	19H1936	4	Cap Screw	3/8" X 3/4"
27	12H304	1	Lock Washer	3/8", (2 USED COLLAR SHIFT, 6 USED POWER SHIFT)
28	R28473	1	Plug	(DIESEL)
29	19H1936	6	Cap Screw	3/8" X 3/4"
29	12H304	6	Lock Washer	3/8"
30	R28473	1	Plug	(COLLAR SHIFT)

CONTROL SUPPORT AND ASSOCIATED PARTS [02B17]

Нет текстового описания
