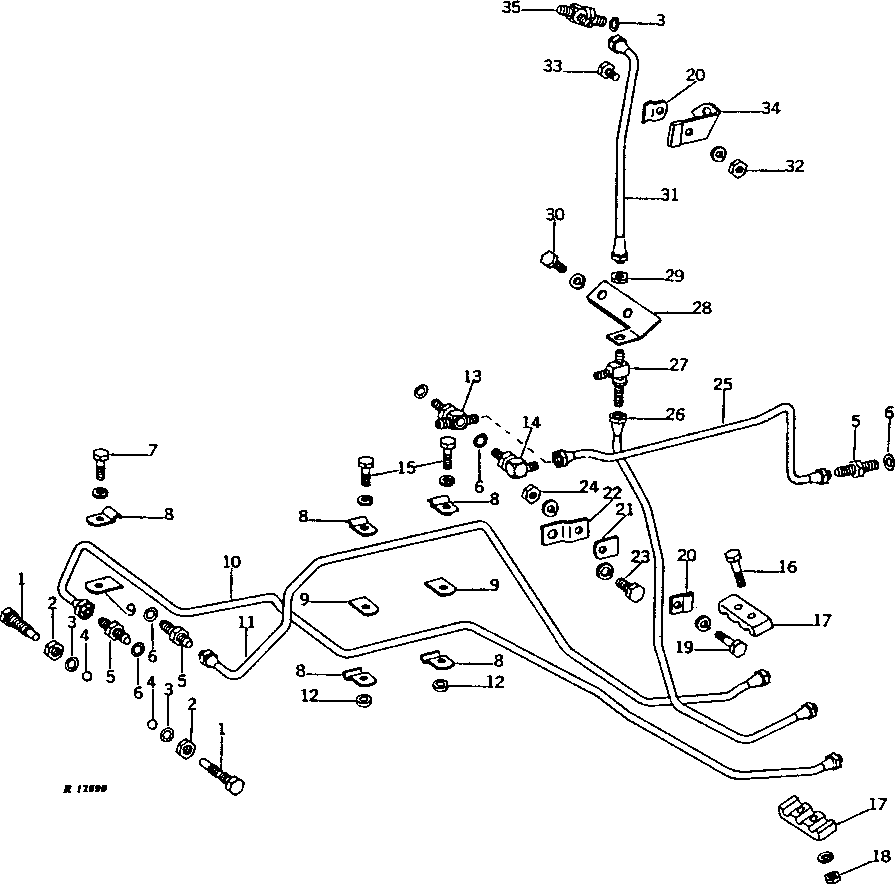

BRAKE OIL PIPES (COLLAR SHIFT) [02B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27906	2	FITTING PLUG	-
2	R27296	2	Nut	-
3	R26286	3	O-Ring	-
4	R42849	2	Ball	(SUB FOR 405R)
5	R27527	3	ADAPTER FITTING	-
6	R26287	5	O-Ring	-
7	19H1732	1	Cap Screw	3/8" X 1-1/4"
7	12H304	1	Lock Washer	3/8"
8	R31654	5	CLAMP	(SUB FOR R27528)
9	R31655	3	STRAP	(SUB FOR R27256)
10	AR34766	1	OIL LINE	(SUB FOR AR27361) L.H.
11	AR34765	1	OIL LINE	(SUB FOR AR27360) R.H.
12	A4669R	2	BUSHING	-
13	AR33988	1	TEE FITTING	-
13	AR39795	1	Tee Fitting	BRAKE RETURN LINE TO CASE
14	AR26746	1	Elbow Fitting	-
15	19H1800	2	Cap Screw	3/8" X 1-1/2"
15	12H304	2	Lock Washer	3/8"
16	19H1137	2	CAP SCREW	5/16" X 1-1/4"
16	12H303	2	Lock Washer	5/16"
17	R36086	2	CLAMP	-
18	14H785	2	Nut	5/16"
19	19H1900	1	Cap Screw	5/16" X 3/4"
19	12H303	1	Lock Washer	5/16"
20	R31654	2	CLAMP	-
21	R31655	1	STRAP	-
22	R34826	1	STRAP	-
23	19H1792	1	Cap Screw	1/2" X 1"
23	12H301	1	Lock Washer	1/2"
24	14H785	1	Nut	5/16"
25	AR27902	1	OIL LINE	BRAKE RETURN
25	AR39793	1	LINE	RETURN
26	AR34762	1	HYDRAULIC LINE	BRAKE PRESSURE, LOWER, (SUB FOR AR32385)
27	AR34813	1	TEE FITTING	SPECIAL, BRAKE AND DIFFERENTIAL LOCK PRESSURE LINE
27	R31653	1	Union Fitting	-
28	R34486	1	BRACKET	-
29	R27453	1	Nut	-
30	19H1936	1	Cap Screw	3/8" X 3/4"
30	12H304	1	Lock Washer	3/8"
31	AR33960	1	LINE	BRAKE PRESSURE, UPPER
32	14H785	1	Nut	5/16"
33	19H1813	1	CAP SCREW	5/16" X 5/8"
33	12H291	1	Lock Washer	5/16"
34	R34653	1	BRACKET	(NO LONGER AVAILABLE)
35	AR30762	1	Tee Fitting	-
