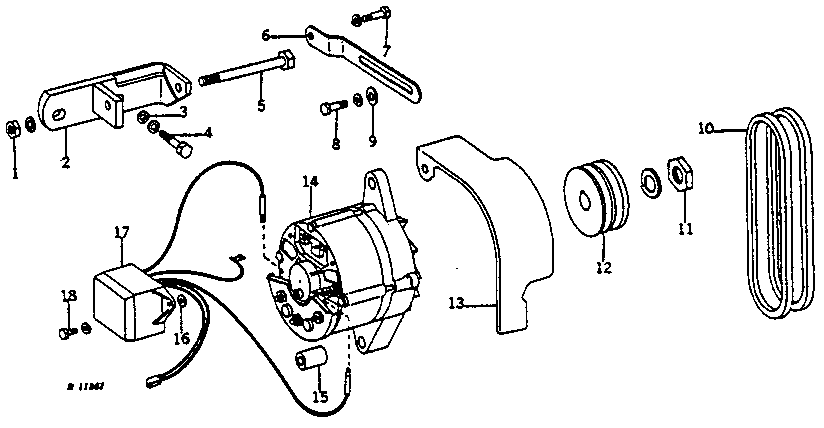

ALTERNATOR, REGULATOR, AND MOUNTING BRACKETS (SERIAL NO. 84000- ) [02C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8"
1	14H1076	1	Nut	3/8"
2	AR40416	1	BRACKET	-
3	24H1323	2	Washer	15/32" X 13/16" X 0.090"
4	19H1821	2	CAP SCREW	7/16" X 1-1/4"
4	12H293	2	Lock Washer	7/16"
5	19H2228	1	Cap Screw	3/8" X 4"
6	R40953	1	STRAP	-
7	19H1900	1	Cap Screw	5/16" X 3/4"
7	12H303	1	Lock Washer	5/16"
8	19H2127	1	Cap Screw	5/16" X 7/8"
8	12H303	1	Lock Washer	5/16"
9	24H1292	1	Washer	11/32" X 3/4" X 0.120"
10	AR41629	1	V-BELT	(B) (MATCHED SET) (SUB FOR AR32661 OR AR41575 ON JD500)
10	AR41576	1	BELT SET	(B) (MATCHED VEE FAN & ALTERNATOR DRIVE) (JD500A*)
10	AR41628	1	BELT SET	(A) (MATCHED SET) (SUB FOR AR32659 OR AR41575 ON JD500, JD500A*)
11	14H866	1	Nut	5/8"
11	12H294	1	Lock Washer	5/8"
12	R15022	1	PULLEY	-
13	R40575	1	SHIELD	-
14	-	1	Part 21	(A) (12-VOLT MOTOROLA) (SUB AR40420)
14	-	1	Part 22	(B) (24-VOLT MOTOROLA) (SUB TY1448) (SUB FOR AR40419)
14	TY1448	1	ALTERNATOR	(REMANUFACTURED)
15	R34969	1	Spacer	-
16	R15036	3	WASHER	(SUB FOR R39804)
17	AR78298	1	VOLTAGE REGULATOR	(A) (12-VOLT MOTOROLA) (SUB FOR AR38459)
17	AR40421	1	REGULATOR	(B) (24-VOLT MOTOROLA)
18	R44008	3	SCREW	(SUB FOR R38373 AND AR40938)
18	12H295	3	Lock Washer	0.190"

ALTERNATOR, REGULATOR, AND MOUNTING BRACKETS (SERIAL NO. 84000- ) [02C18]
