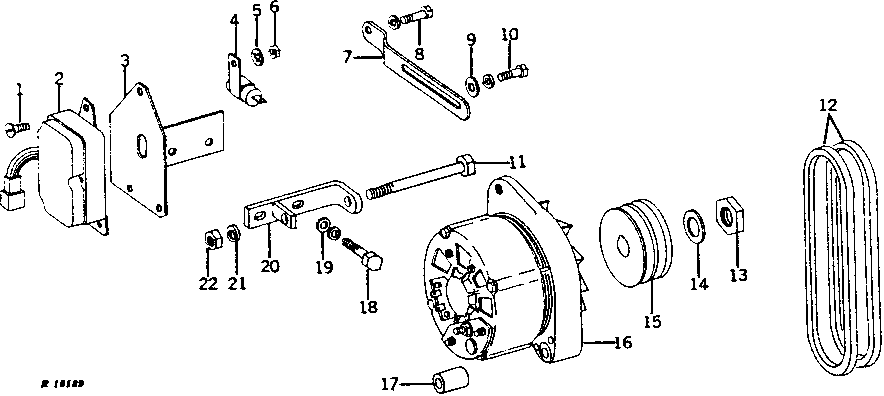

ALTERNATOR, REGULATOR AND MOUNTING BRACKETS (SERIAL NO. 68000-83999) [02C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	3	Part 1	( 21H1161 NO LONGER REQUIRED)
2	AR40781	1	KIT	(GASOLINE) (12-VOLT MOTOROLA) (SUB AR78298) (SUB FOR R15018)
2	AR40779	1	VOLTAGE REGULATOR	(DIESEL) (24-VOLT MOTOROLA) (SUB FOR R15017)
3	-	1	Part 4	( R34967 NO LONGER AVAILABLE)
4	R15005	1	RESISTOR	-
5	12H295	3	Lock Washer	NO. 10
6	14H631	3	Nut	0.190"
7	R34968	1	STRAP	-
8	19H1900	1	Cap Screw	5/16" X 3/4"
8	12H303	1	Lock Washer	5/16"
9	24H1292	1	Washer	11/32" X 3/4" X 0.120"
10	19H1900	1	Cap Screw	5/16" X 3/4"
10	12H303	1	Lock Washer	5/16"
11	19H1925	1	Cap Screw	3/8" X 4-1/4"
12	AR41628	1	BELT SET	(GASOLINE) (MATCHED SET) (SUB FOR AR32659 OR AR41575, THIS APPLICATION)
12	AR41576	1	BELT SET	(DIESEL) (MATCHED SET) (SUB FOR AR32661 OR AR41629, THIS APPLICATION)
13	14H866	1	Nut	5/8"
14	12H294	1	Lock Washer	5/8"
15	R15022	1	PULLEY	-
16	-	1	Part 20	(GASOLINE) (12-VOLT MOTOROLA) (SUB AR40420) (SUB FOR AR15009)
16	-	1	Part 21	(DIESEL) (24-VOLT MOTOROLA) (SUB TY1448) (SUB FOR AR15007)
17	R34969	1	Spacer	-
18	19H1821	2	CAP SCREW	7/16" X 1-1/4"
18	12H293	2	Lock Washer	7/16"
19	24H1323	2	Washer	15/32" X 13/16" X 0.090"
20	AR34837	1	BRACKET	(SUB AR40416)
21	12H304	1	Lock Washer	3/8"
22	14H1076	1	Nut	3/8"

ALTERNATOR, REGULATOR AND MOUNTING BRACKETS (SERIAL NO. 68000-83999) [02C17]
